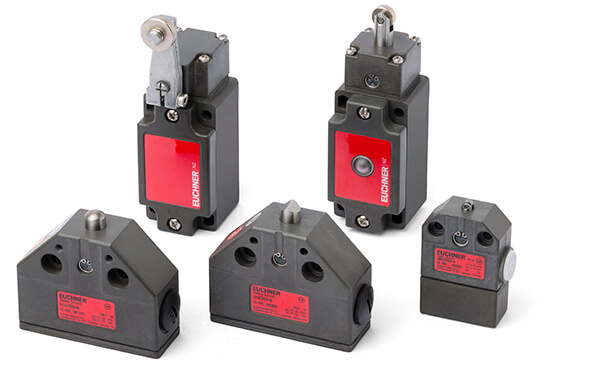

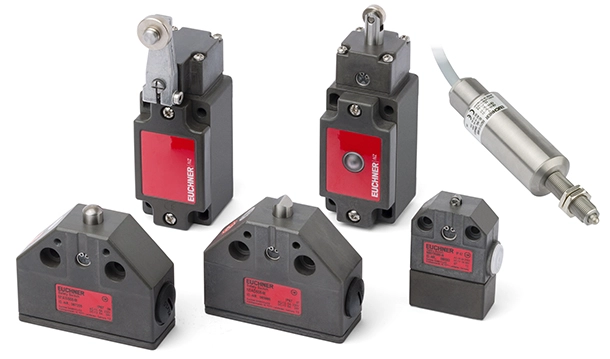

N1A / NB01 Single Limit Switch, NZ position switch and EGZ single fixing limit switch

094823
EGZ12-12-5000
Precision single hole fixing limit switch EGZ

• dome plunger
• Connecting cable, 5 m
• Threaded section M12x1
• 2 pos. driven contacts
• 1 NO contacts
• Plunger and housing made of high-quality stainless steel

087245
N1AB508-M
Single Limit Switch N1AR, roller plunger, steel roller ø 8 mm, cable entry M16x1.5

• Roller plunger, steel roller ø 8 mm
• Housing according to DIN 43693
• 2 x cable entry M16x1.5
• 1 positively driven, positively driven contact
• Ball bearings

087247
N1AB514-M
Single Limit Switch N1AR, roller plunger, steel roller ø 8 mm, cable entry M16x1.5

• Roller plunger, steel roller ø 8 mm
• Housing according to DIN 43693
• 2 x cable entry M16x1.5
• 1 positively driven, positively driven contact
• 1 NO contacts
• Ball bearings

083886
N1AD508-M
Single Limit Switch N1AD, chisel plunger, cable entry M16x1.5

• chisel plunger
• Housing according to DIN 43693
• 2 x cable entry M16 x 1.5
• 1 positively driven, positively driven contact

103237
N1AD508-MC2222
Single Limit Switch N1AD, chisel plunger, cable entry M16x1.5

• chisel plunger
• Housing according to DIN 43693
• 2 x cable entry M16 x 1.5
• 1 positively driven, positively driven contact
• Low temperature down to -40° C

090546
N1AD508AM-M
Single Limit Switch N1AD, chisel plunger with external diaphragm, cable entry M16x1.5

• chisel plunger
• Housing according to DIN 43693
• 2 x cable entry M16 x 1.5
• 1 positively driven, positively driven contact
• Exterior diaphragm

087218
N1AD508LE060-M
Single Limit Switch N1AD, chisel plunger, cable entry M16x1.5

• chisel plunger
• Housing according to DIN 43693
• 2 x cable entry M16 x 1.5
• 1 positively driven, positively driven contact
• LED indicator: AC/DC 12-60 V red

083849
N1AD514-M
Single Limit Switch N1AD, chisel plunger, cable entry M16x1.5

• chisel plunger
• Housing according to DIN 43693
• 2 x cable entry M16 x 1.5
• 1 positively driven, positively driven contact
• 1 NO contacts

091261
N1AD514AM-M
Single Limit Switch N1AD, chisel plunger with external diaphragm, cable entry M16x1.5

• chisel plunger
• Housing according to DIN 43693
• 2 x cable entry M16 x 1.5
• 1 positively driven, positively driven contact
• 1 NO contacts
• Exterior diaphragm

110462
N1AD514AM-MC2222
Single Limit Switch N1A, chisel plunger, cable entry M16 x 1.5

• chisel plunger
• Housing according to DIN 43693
• 2 x cable entry M16 x 1.5
• 1 positively driven, positively driven contact
• 1 NO contacts
• Plunger material stainless steel
• Low temperature down to -30° C
• With silicone diaphragm (internal and external) and low temperature grease

087603
N1AD514SVM5-M
Single Limit Switch N1AD, chisel plunger, plug connector(s) M12

• chisel plunger
• Housing according to DIN 43693
• Plug connector(s) M12, 5-pin
• 1 positively driven, positively driven contact
• 1 NO contacts

083887
N1AR508-M
Single Limit Switch N1AR, roller plunger, steel roller ø 8 mm, cable entry M16 x 1.5

• Roller plunger, steel roller ø 8 mm
• Housing according to DIN 43693
• 2 x cable entry M16 x 1.5
• 1 positively driven, positively driven contact

103221
N1AR508-MC2222
Single Limit Switch N1AR, roller plunger, cable entry M16 x 1.5

• Roller plunger, steel roller ø 8 mm
• Housing according to DIN 43693
• 2 x cable entry M16 x 1.5
• 1 positively driven, positively driven contact
• Low temperature down to -40° C

087219
N1AR508LE060-M
Single Limit Switch N1AR, roller plunger, steel roller ø 8 mm, cable entry M16 x 1.5

• Roller plunger, steel roller ø 8 mm
• Housing according to DIN 43693
• 2 x cable entry M16 x 1.5
• 1 positively driven, positively driven contact
• LED indicator: AC/DC 12-60 V red

078487
N1AR514-M
Single Limit Switch N1AR, roller plunger, cable entry M16x1.5

• Roller plunger, steel roller ø 8 mm
• 2 x cable entry M16x1.5
• 1 positively driven, positively driven contact
• 1 NO contacts

087158
N1AR514AM-M
Single Limit Switch N1AR, roller plunger with external diaphragm, cable entry M16x1.5

• Roller plunger, steel roller ø 5 mm
• Housing according to DIN 43693
• 2 x cable entry M16x1.5
• 1 positively driven, positively driven contact
• 1 NO contacts
• Exterior diaphragm

103247
N1AR514AM-MC2222
Single Limit Switch N1AR, roller plunger, steel roller ø 5 mm, cable entry M16 x 1.5

• Roller plunger, steel roller ø 5 mm
• Housing according to DIN 43693
• 2 x cable entry M16 x 1.5
• 1 positively driven, positively driven contact
• 1 NO contacts
• Plunger material stainless steel
• Low temperature down to -30° C
• With silicone diaphragm (internal and external) and low temperature grease

087604
N1AR514SVM5-M
Single Limit Switch N1AR, roller plunger with plug connector(s) M12

• Roller plunger, steel roller ø 8 mm
• Housing according to DIN 43693
• Plug connector M12, 5-pin
• 1 positively driven, positively driven contact
• 1 NO contacts

087147
N1ARL508-M
Single Limit Switch N1ARL, extended roller plunger, cable entry M16 x 1.5

• Extended roller plunger, steel roller ø 18 mm
• Housing according to DIN 43693
• 2 x cable entry M16 x 1.5
• 1 positively driven, positively driven contact

087204
N1ARL514-M
Single Limit Switch N1ARL, extended roller plunger, cable entry M16 x 1.5

• Extended roller plunger, steel roller ø 18 mm
• Housing according to DIN 43693
• 2 x cable entry M16 x 1.5
• 1 positively driven, positively driven contact
• 1 NO contacts

087205
N1AW508-M
Single Limit Switch N1AW, dome plunger, cable entry M16x1.5

• dome plunger
• Housing according to DIN 43693
• 2 x cable entry M16x1.5
• 1 positively driven, positively driven contact

103222
N1AW508-MC2222
Single Limit Switch N1AW, dome plunger, cable entry M16 x 1.5

• dome plunger
• Housing according to DIN 43693
• 2 x cable entry M16 x 1.5
• 1 positively driven, positively driven contact
• Low temperature down to -40° C

087220
N1AW508LE060-M
Single Limit Switch N1AW, dome plunger, cable entry M16 x 1.5

• dome plunger
• Housing according to DIN 43693
• 2 x cable entry M16 x 1.5
• 1 positively driven, positively driven contact
• LED indicator: AC/DC 12-60 V red

083850
N1AW514-M
Single Limit Switch N1AW, dome plunger, cable entry M16x1.5

• dome plunger
• Housing according to DIN 43693
• 2 x cable entry M16x1.5
• 1 positively driven, positively driven contact
• 1 NO contacts

090743
N1AW514SVM5-M
Single Limit Switch N1AW, dome plunger, plug connector(s) M12

• dome plunger
• Housing according to DIN 43693
• Plug connector M12, 5-pin
• 1 positively driven, positively driven contact
• 1 NO contacts

088584
NB01D588-M
Single Limit Switch NB01, chisel plunger, cable entry M12 x 1.5

• chisel plunger
• Cable entry M12 x 1.5
• 1 positively driven, positively driven contact

088583
NB01R588-M
Single Limit Switch NB01, roller plunger, steel roller ø 5 mm, cable entry M12 x 1.5

• Roller plunger, steel roller ø 5 mm
• Cable entry M12 x 1.5
• 1 positively driven, positively driven contact

077390
NZ1HB-2131-9C-GMMF
Safety switch NZ.HB, lever arm with plastic roller, plug connector MR9

• Lever arm, plastic roller ø 18 mm
• Version A according to EN 50041
• Plug connector(s) MR9, 8-pin PE
• 3 pos. driven contacts
• 1 NO contacts

090968
NZ1HB-2131-M
Safety switch NZ.HB, lever arm with plastic roller, cable entry M20 x 1.5

• Lever arm, plastic roller ø 18 mm
• Version A according to EN 50041
• Cable entry M20 x 1.5
• 3 pos. driven contacts
• 1 NO contacts

090969
NZ1HB-3131-M
Safety switch NZ.HB, lever arm with plastic roller, cable entry M20 x 1.5

• Lever arm, plastic roller ø 18 mm
• Version A according to EN 50041
• Cable entry M20 x 1.5
• 2 pos. driven contacts
• 2 NO contacts

079952
NZ1HB-511-M
Safety switch NZ.HB, lever arm with plastic roller, cable entry M20 x 1.5

• Lever arm, plastic roller ø 18 mm
• Version A according to EN 50041
• Cable entry M20 x 1.5
• 1 positively driven, positively driven contact
• 1 NO contacts

079965
NZ1HB-511-MC569
Safety switch NZ.HB.C569, lever arm with plastic roller, cable entry M20 x 1.5

• Lever arm, large plastic roller ø 30 mm
• Cable entry M20 x 1.5
• 1 positively driven, positively driven contact
• 1 NO contacts

090039
NZ1HB-511L060-M
Safety switch NZ.HB, lever arm with plastic roller, cable entry M20 x 1.5

• Lever arm, plastic roller ø 18 mm
• Version A according to EN 50041
• Cable entry M20 x 1.5
• 1 positively driven, positively driven contact
• 1 NO contacts
• LED indicator: AC/DC 12-60 V red

091091
NZ1HB-511L060-MC569
Safety switch NZ.HB.C569, lever arm with plastic roller, cable entry M20 x 1.5

• Lever arm, large plastic roller ø 30 mm
• Cable entry M20 x 1.5
• LED displayAC/DC 12-60 V red
• 1 positively driven, positively driven contact
• 1 NO contacts

086525
NZ1HB-511L060GE-M
Safety switch NZ.HB, lever arm with plastic roller, cable entry M20 x 1.5

• Lever arm, plastic roller ø 18 mm
• Version A according to EN 50041
• Cable entry M20 x 1.5
• 1 positively driven, positively driven contact
• 1 NO contacts
• LED indicator: AC/DC 12-60 V yellow

088199
NZ1HB-528-M
Safety switch NZ.HB, lever arm with plastic roller, cable entry M20 x 1.5

• Lever arm, plastic roller ø 18 mm
• Version A according to EN 50041
• Cable entry M20 x 1.5
• 1 positively driven, positively driven contact
• 1 NO contacts

079946
NZ1HB-528-MC569
Safety switch NZ.HB.C569, lever arm with plastic roller, cable entry M20 x 1.5

• Lever arm, large plastic roller ø 30 mm
• Cable entry M20 x 1.5
• 1 positively driven, positively driven contact
• 1 NO contacts

090965
NZ1HB-528L060-M
Safety switch NZ.HB, lever arm with plastic roller, cable entry M20 x 1.5

• Lever arm, plastic roller ø 18 mm
• Version A according to EN 50041
• Cable entry M20 x 1.5
• 1 positively driven, positively driven contact
• 1 NO contacts
• LED indicator: AC/DC 12-60 V red

091330
NZ1HB-528L060-MC569
Safety switch NZ.HB.C569, lever arm with plastic roller, cable entry M20 x 1.5

• Lever arm, large plastic roller ø 30 mm
• Cable entry M20 x 1.5
• 1 positively driven, positively driven contact
• 1 NO contacts
• LED indicator: AC/DC 12-60 V red

086527
NZ1HB-528L060GE-M
Safety switch NZ.HB, lever arm with plastic roller, cable entry M20 x 1.5

• Lever arm, plastic roller ø 18 mm
• Version A according to EN 50041
• Cable entry M20 x 1.5
• 1 positively driven, positively driven contact
• 1 NO contacts
• LED indicator: AC/DC 12-60 V yellow

090966
NZ1HB-538-M
Safety switch NZ.HB, lever arm with plastic roller, cable entry M20 x 1.5

• Lever arm, plastic roller ø 18 mm
• Version A according to EN 50041
• Cable entry M20 x 1.5
• 2 pos. driven contacts

079999
NZ1HB-538-MC569
Safety switch NZ.HB.C569, lever arm with plastic roller, cable entry M20 x 1.5

• Lever arm, large plastic roller ø 30 mm
• Cable entry M20 x 1.5
• 2 pos. driven contacts

090967
NZ1HB-538L060-M
Safety switch NZ.HB, lever arm with plastic roller; cable entry M20 x 1.5

• Lever arm, plastic roller ø 18 mm
• Version A according to EN 50041
• Cable entry M20 x 1.5
• 2 pos. driven contacts
• LED indicator: AC/DC 12-60 V red

090254
NZ1HS-2121-M
Safety switch NZ.HS, lever arm with steel roller, cable entry M20 x 1.5

• Lever arm, steel roller ø 18 mm
• Version A according to EN 50041
• Cable entry M20 x 1.5
• 4 positively driven, positively driven contacts

077391
NZ1HS-2131-9C-GMMF
Safety switch NZ.HS, lever arm with steel roller, plug connector MR9

• Lever arm, steel roller ø 18 mm
• Version A according to EN 50041
• Plug connector(s) MR9, 8-pin PE
• 3 pos. driven contacts
• 1 NO contacts

090973
NZ1HS-2131-M
Safety switch NZ.HS, lever arm with steel roller, cable entry M20 x 1.5

• Lever arm, steel roller ø 18 mm
• Version A according to EN 50041
• Cable entry M20 x 1.5
• 3 pos. driven contacts
• 1 NO contacts

090747
NZ1HS-3131-M
Safety switch NZ.HS, lever arm with steel roller, cable entry M20 x 1.5

• Lever arm, steel roller ø 18 mm
• Version A according to EN 50041
• Cable entry M20 x 1.5
• 2 pos. driven contacts
• 2 NO contacts

094167
NZ1HS-3131-M-EX
Safety switch NZ.HS ATEX, lever arm with steel roller, cable entry M20 x 1.5

• ATEX version
• Lever arm, steel roller ø 18 mm
• Version A according to EN 50041
• Cable entry M20 x 1.5
• 2 pos. driven contacts
• 2 NO contacts

079996
NZ1HS-3131-MC1779
Safety switch NZ.HS, lever arm with steel roller, cable entry M20 x 1.5

• Lever arm, steel roller ø 18 mm
• Cable entry M20 x 1.5
• 2 pos. driven contacts
• 2 NO contacts
• Roller mounted on inside of lever

079953
NZ1HS-511-M
Safety switch NZ.HS, lever arm with steel roller, cable entry M20 x 1.5

• Lever arm, steel roller ø 18 mm
• Version A according to EN 50041
• Cable entry M20 x 1.5
• 1 positively driven, positively driven contact
• 1 NO contacts

091312
NZ1HS-511-MC1833
Safety switch NZ.HS.C1833, lever arm with steel roller, cable entry M20 x 1.5

• Lever arm, steel roller ø 19 mm
• With grooved ball bearing
• Cable entry M20 x 1.5
• 1 positively driven, positively driven contact
• 1 NO contacts

110656
NZ1HS-511-MC2222
Safety switch NZ.HS.C2222, lever arm with steel roller, cable entry M20 x 1.5

• Lever arm, steel roller ø 18 mm
• Cable entry M20 x 1.5
• 1 positively driven, positively driven contact
• 1 NO contacts
• Low temperature down to -40° C

090035
NZ1HS-511L060-M
Safety switch NZ.HS, lever arm with steel roller, cable entry M20 x 1.5

• Lever arm, steel roller ø 18 mm
• Version A according to EN 50041
• Cable entry M20 x 1.5
• 1 positively driven, positively driven contact
• 1 NO contacts
• LED indicator: AC/DC 12-60 V red

090038
NZ1HS-511L060GE-M
Safety switch NZ.HS, lever arm with steel roller, cable entry M20 x 1.5

• Lever arm, steel roller ø 18 mm
• Version A according to EN 50041
• Cable entry M20 x 1.5
• 1 positively driven, positively driven contact
• 1 NO contacts
• LED indicator: AC/DC 12-60 V yellow

090036
NZ1HS-511L110-M
Safety switch NZ.HS, lever arm with steel roller, cable entry M20 x 1.5

• Lever arm, steel roller ø 18 mm
• Version A according to EN 50041
• Cable entry M20 x 1.5
• 1 positively driven, positively driven contact
• 1 NO contacts
• LED indicator: AC/DC 12-60 V red

090037
NZ1HS-511L220-M
Safety switch NZ.HS, lever arm with steel roller, cable entry M20 x 1.5

• Lever arm, steel roller ø 18 mm
• Version A according to EN 50041
• Cable entry M20 x 1.5
• 1 positively driven, positively driven contact
• 1 NO contacts
• LED indicator: AC 230 V ±15% red

090970
NZ1HS-528-M
Safety switch NZ.HS, lever arm with steel roller, cable entry M20 x 1.5

• Lever arm, steel roller ø 18 mm
• Version A according to EN 50041
• Cable entry M20 x 1.5
• 1 positively driven, positively driven contact
• 1 NO contacts

106569
NZ1HS-528-MYC2286
Safety switch NZ.HS, lever arm with steel roller ø 18 mm, cable entry M20 x 1.5

• Lever arm, steel roller ø 18 mm
• Cable entry M20 x 1.5
• Version A according to EN 50041
• 1 positively driven, positively driven contact
• 1 NO contacts
• suitable for low temperature down to -40 °C

090971
NZ1HS-528L060-M
Safety switch NZ.HS, lever arm with steel roller, cable entry M20 x 1.5

• Lever arm, steel roller ø 18 mm
• Version A according to EN 50041
• Cable entry M20 x 1.5
• 1 positively driven, positively driven contact
• 1 NO contacts
• LED indicator: AC/DC 12-60 V red

090049
NZ1HS-528L060GE-M
Safety switch NZ.HS, lever arm with steel roller, cable entry M20 x 1.5

• Lever arm, steel roller ø 18 mm
• Version A according to EN 50041
• Cable entry M20 x 1.5
• 1 positively driven, positively driven contact
• 1 NO contacts
• LED indicator: AC/DC 12-60 V yellow

090052
NZ1HS-528L220-M
Safety switch NZ.HS, lever arm with steel roller, cable entry M20 x 1.5

• Lever arm, steel roller ø 18 mm
• Version A according to EN 50041
• Cable entry M20 x 1.5
• 1 positively driven, positively driven contact
• 1 NO contacts
• LED indicator: AC 230 V ±15% red

090972
NZ1HS-538-M
Safety switch NZ.HS, lever arm with steel roller, cable entry M20 x 1.5

• Lever arm, steel roller ø 18 mm
• Version A according to EN 50041
• Cable entry M20 x 1.5
• 2 pos. driven contacts

090760
NZ1HS-538L060-M
Safety switch NZ.HS, lever arm with steel roller, cable entry M20 x 1.5

• Lever arm, steel roller ø 18 mm
• Version A according to EN 50041
• Cable entry M20 x 1.5
• 2 pos. driven contacts
• LED indicator: AC/DC 12-60 V red

090872
NZ1PB-2131-M
Safety switch NZ.PB, adjustable lever arm with plastic roller, cable entry M20 x 1.5

• Lever arm, plastic roller ø 18 mm
• Cable entry M20 x 1.5
• 3 pos. driven contacts
• 1 NO contacts

090873
NZ1PB-3131-M
Safety switch NZ.PB, adjustable lever arm with plastic roller, cable entry M20 x 1.5

• Lever arm, plastic roller ø 18 mm
• Cable entry M20 x 1.5
• 2 pos. driven contacts
• 2 NO contacts

088618
NZ1PB-511-M
Safety switch NZ.PB, adjustable lever arm with plastic roller, cable entry M20 x 1.5

• Lever arm, plastic roller ø 18 mm
• Cable entry M20 x 1.5
• 1 positively driven, positively driven contact
• 1 NO contacts

090871
NZ1PB-538-M
Safety switch NZ.PB, adjustable lever arm with plastic roller, cable entry M20 x 1.5

• Lever arm, plastic roller ø 18 mm
• Cable entry M20 x 1.5
• 2 pos. driven contacts

090876
NZ1PS-2131-M
Safety switch NZ.PS, adjustable lever arm with steel roller, cable entry M20 x 1.5

• Lever arm, steel roller ø 18 mm
• Cable entry M20 x 1.5
• 3 pos. driven contacts
• 1 NO contacts

090877
NZ1PS-3131-M
Safety switch NZ.PS, adjustable lever arm with steel roller, cable entry M20 x 1.5

• Lever arm, steel roller ø 18 mm
• Cable entry M20 x 1.5
• 2 pos. driven contacts
• 2 NO contacts

088613
NZ1PS-511-M
Safety switch NZ.PS, adjustable lever arm with steel roller, cable entry M20 x 1.5

• Lever arm, steel roller ø 18 mm
• Cable entry M20 x 1.5
• 1 positively driven, positively driven contact
• 1 NO contacts

104102
NZ1PS-511L060-M
Safety switch NZ.PS, adjustable lever arm with steel roller, cable entry M20 x 1.5

• Lever arm, steel roller ø 18 mm
• Cable entry M20 x 1.5
• 1 positively driven, positively driven contact
• 1 NO contacts
• LED indicator: AC/DC 12-60 V red

090874
NZ1PS-528-M
Safety switch NZ.PS, adjustable lever arm with steel roller, cable entry M20 x 1.5

• Lever arm, steel roller ø 18 mm
• Cable entry M20 x 1.5
• 1 positively driven, positively driven contact
• 1 NO contacts

090430
NZ1PS-528L060-M
Safety switch NZ.PS, adjustable lever arm with steel roller, cable entry M20 x 1.5

• Lever arm, steel roller ø 18 mm
• Cable entry M20 x 1.5
• 1 positively driven, positively driven contact
• 1 NO contacts
• LED indicator: AC/DC 12-60 V red

090875
NZ1PS-538-M
Safety switch NZ.PS, adjustable lever arm with steel roller, cable entry M20 x 1.5

• Lever arm, steel roller ø 18 mm
• Cable entry M20 x 1.5
• 2 pos. driven contacts

104364
NZ1PS-538L060-M
Safety switch NZ.PS, adjustable lever arm with steel roller, cable entry M20 x 1.5

• Lever arm, steel roller ø 18 mm
• Cable entry M20 x 1.5
• 2 pos. driven contacts
• LED indicator: AC/DC 12-60 V red

090934
NZ1RG-2131-M
NZ.RG safety switch, roller plunger, plastic roller ø 12 mm, cable entry M20 x 1.5

• Roller plunger, plastic roller ø 12 mm
• Version C according to EN 50041
• Cable entry M20 x 1.5
• 3 pos. driven contacts
• 1 NO contacts

090935
NZ1RG-3131-M
NZ.RG safety switch, roller plunger, plastic roller ø 12 mm, cable entry M20 x 1.5

• Roller plunger, plastic roller ø 12 mm
• Version C according to EN 50041
• Cable entry M20 x 1.5
• 2 pos. driven contacts
• 2 NO contacts

088605
NZ1RG-511-M
NZ.RG safety switch, roller plunger, plastic roller ø 12 mm, cable entry M20 x 1.5

• Roller plunger, plastic roller ø 12 mm
• Version C according to EN 50041
• Cable entry M20 x 1.5
• 1 positively driven, positively driven contact
• 1 NO contacts

089052
NZ1RG-511L060-M
NZ.RG safety switch, roller plunger, plastic roller ø 12 mm, cable entry M20 x 1.5

• Roller plunger, plastic roller ø 12 mm
• Version C according to EN 50041
• Cable entry M20 x 1.5
• 1 positively driven, positively driven contact
• 1 NO contacts
• LED indicator: AC/DC 12-60 V red

090932
NZ1RG-528-M
NZ.RG safety switch, roller plunger, plastic roller ø 12 mm, cable entry M20 x 1.5

• Roller plunger, plastic roller ø 12 mm
• Version C according to EN 50041
• Cable entry M20 x 1.5
• 1 positively driven, positively driven contact
• 1 NO contacts

090008
NZ1RG-528L060-M
NZ.RG safety switch, roller plunger, plastic roller ø 12 mm, cable entry M20 x 1.5

• Roller plunger, plastic roller ø 12 mm
• Version C according to EN 50041
• Cable entry M20 x 1.5
• 1 positively driven, positively driven contact
• 1 NO contacts
• LED indicator: AC/DC 12-60 V red

090933
NZ1RG-538-M
NZ.RG safety switch, roller plunger, plastic roller ø 12 mm, cable entry M20 x 1.5

• Roller plunger, plastic roller ø 12 mm
• Version C according to EN 50041
• Cable entry M20 x 1.5
• 2 pos. driven contacts

090907
NZ1RK-2131-M
Safety switch NZ.RK, roller plunger, steel roller ø 8 mm, cable entry M20 x 1.5

• Roller plunger, steel roller ø 8 mm
• Cable entry M20 x 1.5
• 3 pos. driven contacts
• 1 NO contacts

090908
NZ1RK-3131-M
Safety switch NZ.RK, roller plunger, steel roller ø 8 mm, cable entry M20 x 1.5

• Roller plunger, steel roller ø 8 mm
• Cable entry M20 x 1.5
• 2 pos. driven contacts
• 2 NO contacts

088608
NZ1RK-511-M
Safety switch NZ.RK, roller plunger, steel roller ø 8 mm, cable entry M20 x 1.5

• Roller plunger, steel roller ø 8 mm
• Cable entry M20 x 1.5
• 1 positively driven, positively driven contact
• 1 NO contacts

090354
NZ1RK-511L060-M
Safety switch NZ.RK, roller plunger, steel roller ø 8 mm, cable entry M20 x 1.5

• Roller plunger, steel roller ø 8 mm
• Cable entry M20 x 1.5
• 1 positively driven, positively driven contact
• 1 NO contacts
• LED indicator: AC/DC 12-60 V red

090355
NZ1RK-511L220-M
Safety switch NZ.RK, roller plunger, steel roller ø 8 mm, cable entry M20 x 1.5

• Roller plunger, steel roller ø 8 mm
• Cable entry M20 x 1.5
• 1 positively driven, positively driven contact
• 1 NO contacts
• LED indicator: AC 110 V ±15% red

090905
NZ1RK-528-M
Safety switch NZ.RK, roller plunger, steel roller ø 8 mm, cable entry M20 x 1.5

• Roller plunger, steel roller ø 8 mm
• Cable entry M20 x 1.5
• 1 positively driven, positively driven contact
• 1 NO contacts

090572
NZ1RK-528-MC1912
Safety switch NZ.RK, roller plunger, steel roller ø 8 mm, cable entry M20 x 1.5

• Roller plunger, steel roller ø 8 mm
• With ball bearings
• Cable entry M20 x 1.5
• 1 positively driven, positively driven contact
• 1 NO contacts

090358
NZ1RK-528L060-M
Safety switch NZ.RK, roller plunger, steel roller ø 8 mm, cable entry M20 x 1.5

• Roller plunger, steel roller ø 8 mm
• Cable entry M20 x 1.5
• 1 positively driven, positively driven contact
• 1 NO contacts
• LED indicator: AC/DC 12-60 V red

086408
NZ1RK-528L060GE-MC1912
Safety switch NZ.RK, roller plunger, steel roller ø 8 mm, cable entry M20 x 1.5

• Roller plunger, steel roller ø 8 mm
• With ball bearings
• Cable entry M20 x 1.5
• 1 positively driven, positively driven contact
• 1 NO contacts
• LED indicator: AC/DC 12-60 V yellow

090906
NZ1RK-538-M
Safety switch NZ.RK, roller plunger, steel roller ø 8 mm, cable entry M20 x 1.5

• Roller plunger, steel roller ø 8 mm
• Cable entry M20 x 1.5
• 2 pos. driven contacts

090941
NZ1RL-2131-M
Safety switch NZ.RL, extended roller plunger, steel roller ø 18 mm, cable entry M20 x 1.5

• Extended roller plunger, steel roller ø 18 mm
• Cable entry M20 x 1.5
• 3 pos. driven contacts
• 1 NO contacts

090942
NZ1RL-3131-M
Safety switch NZ.RL, extended roller plunger, steel roller ø 18 mm, cable entry M20 x 1.5

• Extended roller plunger, steel roller ø 18 mm
• Cable entry M20 x 1.5
• 2 pos. driven contacts
• 2 NO contacts

088614
NZ1RL-511-M
Safety switch NZ.RL, extended roller plunger, steel roller ø 18 mm, cable entry M20 x 1.5

• Extended roller plunger, steel roller ø 18 mm
• Cable entry M20 x 1.5
• 1 positively driven, positively driven contact
• 1 NO contacts

088996
NZ1RL-511L060-M
Safety switch NZ.RL, extended roller plunger, steel roller ø 18 mm, cable entry M20 x 1.5

• Extended roller plunger, steel roller ø 18 mm
• Cable entry M20 x 1.5
• 1 positively driven, positively driven contact
• 1 NO contacts
• LED indicator: AC/DC 12-60 V red

090937
NZ1RL-528-M
Safety switch NZ.RL, extended roller plunger, steel roller ø 18 mm, cable entry M20 x 1.5

• Extended roller plunger, steel roller ø 18 mm
• Cable entry M20 x 1.5
• 1 positively driven, positively driven contact
• 1 NO contacts

090938
NZ1RL-528L060-M
Safety switch NZ.RL, extended roller plunger, steel roller ø 18 mm, cable entry M20 x 1.5

• Extended roller plunger, steel roller ø 18 mm
• Cable entry M20 x 1.5
• 1 positively driven, positively driven contact
• 1 NO contacts
• LED indicator: AC/DC 12-60 V red

090939
NZ1RL-538-M
Safety switch NZ.RL, extended roller plunger, steel roller ø 18 mm, cable entry M20 x 1.5

• Extended roller plunger, steel roller ø 18 mm
• Cable entry M20 x 1.5
• 2 positively driven, positively driven contacts

090940
NZ1RL-538L060-M
Safety switch NZ.RL, extended roller plunger, steel roller ø 18 mm, cable entry M20 x 1.5

• Extended roller plunger, steel roller ø 18 mm
• Cable entry M20 x 1.5
• 2 positively driven, positively driven contacts
• LED indicator: AC/DC 12-60 V red

087595
NZ1RS-2121-M
NZ.RS safety switch, roller plunger, steel roller ø 12 mm, cable entry M20 x 1.5

• Roller plunger, steel roller ø 12 mm
• Version C according to EN 50041
• Cable entry M20 x 1.5
• 4 positively driven, positively driven contacts

077362
NZ1RS-2131-9C-GMMF
Safety switch NZ.RS, roller plunger, steel roller ø 12 mm, plug connector MR9

• Roller plunger, steel roller ø 12 mm
• Version C according to EN 50041
• Plug connector(s) MR9, 8-pin PE
• 3 pos. driven contacts
• 1 NO contacts

089633
NZ1RS-2131-M
NZ.RS safety switch, roller plunger, steel roller ø 12 mm, cable entry M20 x 1.5

• Roller plunger, steel roller ø 12 mm
• Version C according to EN 50041
• Cable entry M20 x 1.5
• 3 pos. driven contacts
• 1 NO contacts

089631
NZ1RS-3131-M
NZ.RS safety switch, roller plunger, steel roller ø 12 mm, cable entry M20 x 1.5

• Roller plunger, steel roller ø 12 mm
• Version C according to EN 50041
• Cable entry M20 x 1.5
• 2 pos. driven contacts
• 2 NO contacts

094169
NZ1RS-3131-M-EX
Safety switch NZ.RS ATEX, steel roller ø 12 mm, roller plunger, cable entry M20 x 1.5

• ATEX version
• Roller plunger, steel roller ø 12 mm
• Version C according to EN 50041
• Cable entry M20 x 1.5
• 2 pos. driven contacts
• 2 NO contacts

102840
NZ1RS-3131-MC2222
NZ.RS safety switch, roller plunger, steel roller ø 12 mm, cable entry M20 x 1.5

• Roller plunger, steel roller ø 12 mm
• Cable entry M20 x 1.5
• Version C according to EN 50041
• 2 pos. driven contacts
• 2 NO contacts
• Low temperature down to -40° C

079960
NZ1RS-511-M
NZ.RS safety switch, roller plunger, steel roller ø 12 mm, cable entry M20 x 1.5

• Roller plunger, steel roller ø 12 mm
• Version C according to EN 50041
• Cable entry M20 x 1.5
• 1 positively driven, positively driven contact
• 1 NO contacts

091352
NZ1RS-511-MC1588
Safety switch NZ.RS.C1588, roller plunger, steel roller ø 12 mm, external bellow, cable entry M20 x 1.5

• Roller plunger, steel roller ø 12 mm
• Version C according to EN 50041
• Cable entry M20 x 1.5
• 1 positively driven, positively driven contact
• 1 NO contacts
• Exterior bellows (CR-based material)

089053
NZ1RS-511L060-M
NZ.RS safety switch, roller plunger, steel roller ø 12 mm, cable entry M20 x 1.5

• Roller plunger, steel roller ø 12 mm
• Version C according to EN 50041
• Cable entry M20 x 1.5
• 1 positively driven, positively driven contact
• 1 NO contacts
• LED indicator: AC/DC 12-60 V red

086528
NZ1RS-511L060GE-M
NZ.RS safety switch, roller plunger, steel roller ø 12 mm, cable entry M20 x 1.5

• Roller plunger, steel roller ø 12 mm
• Version C according to EN 50041
• Cable entry M20 x 1.5
• 1 positively driven, positively driven contact
• 1 NO contacts
• LED indicator: AC/DC 12-60 V yellow

089627
NZ1RS-528-M
NZ.RS safety switch, roller plunger, steel roller ø 12 mm, cable entry M20 x 1.5

• Roller plunger, steel roller ø 12 mm
• Version C according to EN 50041
• Cable entry M20 x 1.5
• 1 positively driven, positively driven contact
• 1 NO contacts

091339
NZ1RS-528-MC1588
Safety switch NZ.RS.C1588, roller plunger, steel roller ø 12 mm, external bellow, cable entry M20 x 1.5

• Roller plunger, steel roller ø 12 mm
• Version C according to EN 50041
• Cable entry M20 x 1.5
• 1 positively driven, positively driven contact
• 1 NO contacts
• Exterior bellows (CR-based material)

086413
NZ1RS-528L060-M
NZ.RS safety switch, roller plunger, steel roller ø 12 mm, cable entry M20 x 1.5

• Roller plunger, steel roller ø 12 mm
• Version C according to EN 50041
• Cable entry M20 x 1.5
• 1 positively driven, positively driven contact
• 1 NO contacts
• LED indicator: AC/DC 12-60 V red

091291
NZ1RS-528L220-M
NZ.RS safety switch, roller plunger, steel roller ø 12 mm, cable entry M20 x 1.5

• Roller plunger, steel roller ø 12 mm
• Version C according to EN 50041
• Cable entry M20 x 1.5
• 1 positively driven, positively driven contact
• 1 NO contacts
• LED indicator: AC 230 V ±15% red

090936
NZ1RS-538-M
NZ.RS safety switch, roller plunger, steel roller ø 12 mm, cable entry M20 x 1.5

• Roller plunger, steel roller ø 12 mm
• Version C according to EN 50041
• Cable entry M20 x 1.5
• 2 pos. driven contacts

090555
NZ1RS-538L060-M
NZ.RS safety switch, roller plunger, steel roller ø 12 mm, cable entry M20 x 1.5

• Roller plunger, steel roller ø 12 mm
• Version C according to EN 50041
• Cable entry M20 x 1.5
• 2 pos. driven contacts
• LED indicator: AC/DC 12-60 V red

090424
NZ1RS-538L060GE-M
NZ.RS safety switch, roller plunger, steel roller ø 12 mm, cable entry M20 x 1.5

• Roller plunger, steel roller ø 12 mm
• Version C according to EN 50041
• Cable entry M20 x 1.5
• 2 pos. driven contacts
• LED indicator: AC/DC 12-60 V yellow

089629
NZ1WO-2131-M
Safety switch NZ.WO, domed plunger, cable entry M20 x 1.5

• Rounded plunger
• Version B according to EN 50041 (hardened)
• Cable entry M20 x 1.5
• 3 positively driven, positively driven contact
• 1 NO contacts

089626
NZ1WO-3131-M
Safety switch NZ.WO, domed plunger, cable entry M20 x 1.5

• Rounded plunger
• Version B according to EN 50041 (hardened)
• Cable entry M20 x 1.5
• 2 positively driven, positively driven contacts
• 2 NO contacts

088611
NZ1WO-511-M
Safety switch NZ.WO, domed plunger, cable entry M20 x 1.5

• Rounded plunger
• Version B according to EN 50041 (hardened)
• Cable entry M20 x 1.5
• 1 positively driven, positively driven contact
• 1 NO contacts

089057
NZ1WO-511L060-M
Safety switch NZ.WO, domed plunger, cable entry M20 x 1.5

• Rounded plunger
• Version B according to EN 50041 (hardened)
• Cable entry M20 x 1.5
• 1 positively driven, positively driven contact
• 1 NO contacts
• LED indicator: AC/DC 12-60 V red

089624
NZ1WO-528-M
Safety switch NZ.WO, domed plunger, cable entry M20 x 1.5

• Rounded plunger
• Version B according to EN 50041 (hardened)
• Cable entry M20 x 1.5
• 1 positively driven, positively driven contact
• 1 NO contacts

089078
NZ1WO-528L060-M
Safety switch NZ.WO, domed plunger, cable entry M20 x 1.5

• Rounded plunger
• Version B according to EN 50041 (hardened)
• Cable entry M20 x 1.5
• 1 positively driven, positively driven contact
• 1 NO contacts
• LED indicator: AC/DC 12-60 V red

090878
NZ1WO-538-M
Safety switch NZ.WO, domed plunger, cable entry M20 x 1.5

• Rounded plunger
• Version B according to EN 50041 (hardened)
• Cable entry M20 x 1.5
• 2 positively driven, positively driven contacts

089076
NZ1WO-538L060-M
Safety switch NZ.WO, domed plunger, cable entry M20 x 1.5

• Rounded plunger
• Version B according to EN 50041 (hardened)
• Cable entry M20 x 1.5
• 2 positively driven, positively driven contacts
• LED indicator: AC/DC 12-60 V red

090136
NZ2HB-2131
Safety switch NZ.HB, lever arm with plastic roller, plug connector SR11

• Lever arm, plastic roller ø 18 mm
• Version A according to EN 50041
• Plug connector(s) SR11, 11-pole PE
• 3 pos. driven contacts
• 1 NO contacts

090137
NZ2HB-3131
Safety switch NZ.HB, lever arm with plastic roller, plug connector SR11

• Lever arm, plastic roller ø 18 mm
• Version A according to EN 50041
• Plug connector(s) SR11, 11-pole PE
• 2 pos. driven contacts
• 2 NO contacts

089091
NZ2HB-511
Safety switch NZ.HB, lever arm with plastic roller, plug connector SR6

• Lever arm, plastic roller ø 18 mm
• Version A according to EN 50041
• Plug connector(s) SR6, 6-pin PE
• 1 positively driven, positively driven contact
• 1 NO contacts

089092
NZ2HB-511L060
Safety switch NZ.HB, lever arm with plastic roller, plug connector SR6

• Lever arm, plastic roller ø 18 mm
• Version A according to EN 50041
• Plug connector(s) SR6, 6-pin PE
• 1 positively driven, positively driven contact
• 1 NO contacts
• LED indicator: AC/DC 12-60 V red

054121
NZ2HB-511L060C1630
Safety switch NZ.HB, lever arm with plastic roller, plug connector SR6

• Lever arm, plastic roller ø 18 mm
• Version A according to EN 50041
• Plug connector(s) SR6, 6-pin PE
• 1 positively driven, positively driven contact
• 1 NO contacts
• LED indicator: AC/DC 12-60 V yellow

054122
NZ2HB-511L060C1631
Safety switch NZ.HB, lever arm with plastic roller, plug connector SR6

• Lever arm, plastic roller ø 18 mm
• Version A according to EN 50041
• SR6 angled plug connector(s), 6-pin PE
• 1 positively driven, positively driven contact
• 1 NO contacts
• LED indicator: AC/DC 12-60 V yellow

090719
NZ2HB-511L060GE
Safety switch NZ.HB, lever arm with plastic roller, plug connector SR6

• Lever arm, plastic roller ø 18 mm
• Version A according to EN 50041
• Plug connector(s) SR6, 6-pin PE
• 1 positively driven, positively driven contact
• 1 NO contacts
• LED indicator: AC/DC 12-60 V yellow

090861
NZ2HB-511SVM5
Safety switch NZ.HB, lever arm with plastic roller, plug connector(s) M12

• Lever arm, plastic roller ø 18 mm
• Version A according to EN 50041
• Plug connector M12, 5-pin
• 1 positively driven, positively driven contact
• 1 NO contacts

098649
NZ2HB-511SVM5L060GE
Safety switch NZ.HB, lever arm with plastic roller, plug connector(s) M12

• Lever arm, plastic roller ø 18 mm
• Version A according to EN 50041
• Plug connector M12, 5-pin
• 1 positively driven, positively driven contact
• 1 NO contacts
• LED indicator: AC/DC 12-60 V yellow

105839
NZ2HB-511SVM5L060GEC2273
Safety switch NZ.HB, lever arm with plastic roller, plug connector(s) M12

• Lever arm, plastic roller ø 18 mm
• Version A according to EN 50041
• Plug connector M12, 5-pin
• 1 positively driven, positively driven contact
• 1 NO contacts
• LED indicator: AC/DC 12-60 V yellow

090845
NZ2HB-528
Safety switch NZ.HB, lever arm with plastic roller, plug connector SR6

• Lever arm, plastic roller ø 18 mm
• Version A according to EN 50041
• Plug connector(s) SR6, 6-pin PE
• 1 positively driven, positively driven contact
• 1 NO contacts

090846
NZ2HB-528L060
Safety switch NZ.HB, lever arm with plastic roller, plug connector SR6

• Lever arm, plastic roller ø 18 mm
• Version A according to EN 50041
• Plug connector(s) SR6, 6-pin PE
• 1 positively driven, positively driven contact
• 1 NO contacts
• LED indicator: AC/DC 12-60 V red

091346
NZ2HB-528L060C1630
Safety switch NZ.HB, lever arm with plastic roller, plug connector SR6

• Lever arm, plastic roller ø 18 mm
• Version A according to EN 50041
• Plug connector(s) SR6, 6-pin PE
• 1 positively driven, positively driven contact
• 1 NO contacts
• LED indicator: AC/DC 12-60 V yellow

091347
NZ2HB-528L060C1631
Safety switch NZ.HB, lever arm with plastic roller, plug connector SR6

• Lever arm, plastic roller ø 18 mm
• Version A according to EN 50041
• SR6 plug connector(s), 6-pin PE angled plug connector
• 1 positively driven, positively driven contact
• 1 NO contacts
• LED indicator: AC/DC 12-60 V yellow

090864
NZ2HB-528SVM5
Safety switch NZ.HB, lever arm with plastic roller, plug connector(s) M12

• Lever arm, plastic roller ø 18 mm
• Version A according to EN 50041
• Plug connector M12, 5-pin
• 1 positively driven, positively driven contact
• 1 NO contacts

090847
NZ2HB-538
Safety switch NZ.HB, lever arm with plastic roller, plug connector SR6

• Lever arm, plastic roller ø 18 mm
• Version A according to EN 50041
• Plug connector(s) SR6, 6-pin PE
• 2 pos. driven contacts

090848
NZ2HB-538L060
Safety switch NZ.HB, lever arm with plastic roller, plug connector SR6

• Lever arm, plastic roller ø 18 mm
• Version A according to EN 50041
• Plug connector(s) SR6, 6-pin PE
• 2 pos. driven contacts
• LED indicator: AC/DC 12-60 V red

090862
NZ2HB-538SVM5
Safety switch NZ.HB, lever arm with plastic roller, plug connector(s) M12

• Lever arm, plastic roller ø 18 mm
• Version A according to EN 50041
• Plug connector M12, 5-pin
• 2 pos. driven contacts

091264
NZ2HS-2121
Safety switch NZ.HS, lever arm with steel roller, plug connector SR11

• Lever arm, steel roller ø 18 mm
• Version A according to EN 50041
• Plug connector(s) SR11, 11-pole PE
• 4 positively driven, positively driven contacts

090146
NZ2HS-2131
Safety switch NZ.HS, lever arm with steel roller, plug connector SR11

• Lever arm, steel roller ø 18 mm
• Version A according to EN 50041
• Plug connector(s) SR11, 11-pole PE
• 3 pos. driven contacts
• 1 NO contacts

122405
NZ2HS-2131L024GEC2300
Safety switch NZ.HS, lever arm with steel roller ø 18 mm, plug connector(s) M12

• Lever arm, steel roller ø 18 mm
• Version C according to EN 50041
• Plug connector M12, 8-pin
• 3 pos. driven contacts
• 1 NO contacts
• LED indicator: AC/DC 24 V yellow

090856
NZ2HS-3131
Safety switch NZ.HS, lever arm with steel roller, plug connector SR11

• Lever arm, steel roller ø 18 mm
• Version A according to EN 50041
• Plug connector(s) SR11, 11-pole PE
• 2 pos. driven contacts
• 2 NO contacts

113690
NZ2HS-3131-10C-FW
Safety switch NZ.HS, lever arm with steel roller, plug connector MR10

• Lever arm, steel roller ø 18 mm
• Version A according to EN 50041
• Plug connector(s) MR10, 9-pin PE
• 2 pos. driven contacts
• 2 NO contacts

073508
NZ2HS-3131-9C-GMMF
Safety switch NZ.HS, lever arm with steel roller, plug connector MR9

• Lever arm, steel roller ø 18 mm
• Version A according to EN 50041
• Plug connector(s) MR9, 8-pin PE
• 2 pos. driven contacts
• 2 NO contacts

089093
NZ2HS-511
Safety switch NZ.HS, lever arm with steel roller, plug connector SR6

• Lever arm, steel roller ø 18 mm
• Version A according to EN 50041
• Plug connector(s) SR6, 6-pin PE
• 1 positively driven, positively driven contact
• 1 NO contacts

089094
NZ2HS-511L060
Safety switch NZ.HS, lever arm with steel roller, plug connector SR6

• Lever arm, steel roller ø 18 mm
• Version A according to EN 50041
• Plug connector(s) SR6, 6-pin PE
• 1 positively driven, positively driven contact
• 1 NO contacts
• LED indicator: AC/DC 12-60 V red

078473
NZ2HS-511L060C1630
Safety switch NZ.HS, lever arm with steel roller, plug connector SR6

• Lever arm, steel roller ø 18 mm
• Version A according to EN 50041
• SR6 angled plug connector(s), 6-pin PE
• 1 positively driven, positively driven contact
• 1 NO contacts
• LED indicator: AC/DC 12-60 V yellow

090697
NZ2HS-511L060GE
Safety switch NZ.HS, lever arm with steel roller, plug connector SR6

• Lever arm, steel roller ø 18 mm
• Version A according to EN 50041
• Plug connector(s) SR6, 6-pin PE
• 1 positively driven, positively driven contact
• 1 NO contacts
• LED indicator: AC/DC 12-60 V yellow

115454
NZ2HS-511SEM5C2376
Safety switch NZ.HS, lever arm with steel roller, plug connector M12

• Lever arm, steel roller ø 18 mm
• Version A according to EN 50041
• Plug connector M12, 5-pin
• 1 positively driven, positively driven contact
• 1 NO contacts

090867
NZ2HS-511SVM5
Safety switch NZ.HS, lever arm with steel roller, plug connector M12

• Lever arm, steel roller ø 18 mm
• Version A according to EN 50041
• Plug connector M12, 5-pin
• 1 positively driven, positively driven contact
• 1 NO contacts

098648
NZ2HS-511SVM5L060GE
Safety switch NZ.HS, lever arm with steel roller, plug connector M12

• Lever arm, steel roller ø 18 mm
• Version A according to EN 50041
• Plug connector M12, 5-pin
• 1 positively driven, positively driven contact
• 1 NO contacts
• LED indicator: AC/DC 12-60 V yellow

105807
NZ2HS-511SVM5L060GEC2273
Safety switch NZ.HS, lever arm with steel roller, plug connector M12

• Lever arm, steel roller ø 18 mm
• Version A according to EN 50041
• Plug connector M12, 5-pin
• 1 positively driven, positively driven contact
• 1 NO contacts
• LED indicator: AC/DC 12-60 V yellow

090852
NZ2HS-528
Safety switch NZ.HS, lever arm with steel roller, plug connector SR6

• Lever arm, steel roller ø 18 mm
• Version A according to EN 50041
• Plug connector(s) SR6, 6-pin PE
• 1 positively driven, positively driven contact
• 1 NO contacts

088196
NZ2HS-528L060
Safety switch NZ.HS, lever arm with steel roller, plug connector SR6

• Lever arm, steel roller ø 18 mm
• Version A according to EN 50041
• Plug connector(s) SR6, 6-pin PE
• 1 positively driven, positively driven contact
• 1 NO contacts
• LED indicator: AC/DC 12-60 V red

090868
NZ2HS-528SVM5
Safety switch NZ.HS, lever arm with steel roller, plug connector M12

• Lever arm, steel roller ø 18 mm
• Version A according to EN 50041
• Plug connector M12, 5-pin
• 1 positively driven, positively driven contact
• 1 NO contacts

090853
NZ2HS-538
Safety switch NZ.HS, lever arm with steel roller, plug connector SR6

• Lever arm, steel roller ø 18 mm
• Version A according to EN 50041
• Plug connector(s) SR6, 6-pin PE
• 2 pos. driven contacts

090854
NZ2HS-538L060
Safety switch NZ.HS, lever arm with steel roller, plug connector SR6

• Lever arm, steel roller ø 18 mm
• Version A according to EN 50041
• Plug connector(s) SR6, 6-pin PE
• 2 pos. driven contacts
• LED indicator: AC/DC 12-60 V red

095201
NZ2HS-538SEM4AS1
Safety switch NZ.HS ASi, lever arm with steel roller, plug connector(s) M12

• AS Interface
• Lever arm, steel roller ø 18 mm
• Version A according to EN 50041 NZ.HS
• Plug connector(s) M12, 4-pin
• 2 pos. driven contacts

115259
NZ2HS-538SEM5C2334
Safety switch NZ.HS, lever arm with steel roller, plug connector M12

• Lever arm, steel roller ø 18 mm
• Version A according to EN 50041
• Plug connector M12, 5-pin
• 2 pos. driven contacts

090869
NZ2HS-538SVM5
Safety switch NZ.HS, lever arm with steel roller, plug connector M12

• Lever arm, steel roller ø 18 mm
• Version A according to EN 50041
• Plug connector M12, 5-pin
• 2 pos. driven contacts

094753
NZ2PB-511L060
Safety switch NZ.PS, adjustable lever arm with plastic roller, plug connector SR6

• Lever arm, plastic roller ø 18 mm
• Plug connector(s) SR6, 6-pin PE
• 1 positively driven, positively driven contact
• 1 NO contacts
• LED indicator: AC/DC 12-60 V red

098646
NZ2PB-511SVM5L060GE
Safety switch NZ.PS, adjustable lever arm with plastic roller, plug connector M12

• Lever arm, plastic roller ø 18 mm
• Plug connector M12, 5-pin
• 1 positively driven, positively driven contact
• 1 NO contacts
• LED indicator: AC/DC 12-60 V yellow

105853
NZ2PB-511SVM5L060GEC2273
Safety switch NZ.PB, lever arm with plastic roller, plug connector(s) M12

• Lever arm, plastic roller ø 18 mm
• Plug connector M12, 5-pin
• 1 positively driven, positively driven contact
• 1 NO contacts
• LED indicator: AC/DC 12-60 V yellow

091268
NZ2PS-2121
Safety switch NZ.PS, adjustable lever arm with steel roller, plug connector SR11

• Lever arm, steel roller ø 18 mm
• Plug connector(s) SR11, 11-pole PE
• 4 positively driven, positively driven contacts

090150
NZ2PS-3131
Safety switch NZ.PS, adjustable lever arm with steel roller, plug connector SR11

• Lever arm, steel roller ø 18 mm
• Plug connector(s) SR11, 11-pole PE
• 2 pos. driven contacts
• 2 NO contacts

093112
NZ2PS-511
Safety switch NZ.PS, adjustable lever arm with steel roller, plug connector SR6

• Lever arm, steel roller ø 18 mm
• Plug connector(s) SR6, 6-pin PE
• 1 positively driven, positively driven contact
• 1 NO contacts

090152
NZ2PS-511L060
Safety switch NZ.PS, adjustable lever arm with steel roller, plug connector SR6

• Lever arm, steel roller ø 18 mm
• Plug connector(s) SR6, 6-pin PE
• 1 positively driven, positively driven contact
• 1 NO contacts
• LED indicator: AC/DC 12-60 V red

128059
NZ2PS-511SEM5C2376
Safety switch NZ.PS, adjustable lever arm with steel roller, plug connector M12

• Lever arm, steel roller ø 18 mm
• Plug connector M12, 5-pin
• Direct connection to decentralized peripheral systems (e.g. ET200pro)
• 1 positively driven, positively driven contact
• 1 NO contacts

098645
NZ2PS-511SVM5L060GE
Safety switch NZ.PS, adjustable lever arm with steel roller, plug connector M12

• Lever arm, steel roller ø 18 mm
• Plug connector M12, 5-pin
• 1 positively driven, positively driven contact
• 1 NO contacts
• LED indicator: AC/DC 12-60 V yellow

105854
NZ2PS-511SVM5L060GEC2273
Safety switch NZ.PS, lever arm with steel roller, plug connector(s) M12

• Lever arm, steel roller ø 18 mm
• Plug connector M12, 5-pin
• 1 positively driven, positively driven contact
• 1 NO contacts
• LED indicator: AC/DC 12-60 V yellow

091632
NZ2PS-538L060
Safety switch NZ.PS, adjustable lever arm with steel roller, plug connector SR6

• Lever arm, steel roller ø 18 mm
• Plug connector(s) SR6, 6-pin PE
• 2 pos. driven contacts
• LED indicator: AC/DC 12-60 V red

136864
NZ2PS-538SEM5C2334
Safety switch NZ.PS, adjustable lever arm with steel roller, plug connector M12

• Lever arm, steel roller ø 18 mm
• Plug connector M12, 5-pin
• Direct connection to decentralized peripheral systems (e.g. ET200pro)
• 2 pos. driven contacts

090948
NZ2RG-3131
Safety switch NZ.RG, roller plunger, plastic roller ø 12 mm, plug connector SR11

• Roller plunger, plastic roller ø 12 mm
• Version C according to EN 50041
• Plug connector(s) SR11, 11-pole PE
• 2 pos. driven contacts
• 2 NO contacts

091284
NZ2RG-511L060
Safety switch NZ.RG, roller plunger, plastic roller ø 12 mm, plug connector(s) M26 (SR6)

• Roller plunger, plastic roller ø 12 mm
• Version C according to EN 50041
• Plug connector(s) M26 (SR6)
• 1 positively driven, positively driven contact
• 1 NO contacts
• LED indicator: AC/DC 12-60 V red

091348
NZ2RG-511L060C1631
Safety switch NZ.RG, roller plunger, plastic roller ø 12 mm, plug connector(s) M26 (SR6)

• Roller plunger, plastic roller ø 12 mm
• Version C according to EN 50041
• M26 plug connector(s) (SR6), 6-pin PE, angled
• 1 positively driven, positively driven contact
• 1 NO contacts
• LED indicator: AC/DC 12-60 V red

090026
NZ2RG-511SVM5
Safety switch NZ.RG, roller plunger, plastic roller ø 12 mm, plug connector(s) M12

• Roller plunger, plastic roller ø 12 mm
• Version C according to EN 50041
• Plug connector M12, 5-pin
• 1 positively driven, positively driven contact
• 1 NO contacts

090961
NZ2RG-528SVM5
Safety switch NZ.RG, roller plunger, plastic roller ø 12 mm, plug connector(s) M12

• Roller plunger, plastic roller ø 12 mm
• Version C according to EN 50041
• Plug connector M12, 5-pin
• 1 positively driven, positively driven contact
• 1 NO contacts

090921
NZ2RK-2131
Safety switch NZ.RK, roller plunger, steel roller ø 8 mm, plug connector SR11

• Roller plunger, steel roller ø 8 mm
• Plug connector(s) SR11, 11-pole PE
• 3 pos. driven contacts
• 1 NO contacts

090922
NZ2RK-3131
Safety switch NZ.RK, roller plunger, steel roller ø 8 mm, plug connector SR11

• Roller plunger, steel roller ø 8 mm
• Plug connector(s) SR11, 11-pole PE
• 2 pos. driven contacts
• 2 NO contacts

099273
NZ2RK-511L060
Safety switch NZ.RK, roller plunger, steel roller ø 8 mm, plug connector(s) M26 (SR6)

• Roller plunger, steel roller ø 8 mm
• Version C according to EN 50041
• Plug connector(s) M26 (SR6), 6-pin PE
• 1 positively driven, positively driven contact
• 1 NO contacts
• LED indicator: AC/DC 12-60 V red

089007
NZ2RK-511SVM5
Safety switch NZ.RK, roller plunger, steel roller ø 8 mm, plug connector(s) M12

• Roller plunger, steel roller ø 8 mm
• Plug connector M12, 5-pin
• 1 positively driven, positively driven contact
• 1 NO contacts

128141
NZ2RK-511SVM5L060GE
Safety switch NZ.RK, roller plunger, steel roller ø 8 mm, plug connector(s) M12

• Roller plunger, steel roller ø 8 mm
• Plug connector M12, 5-pin
• 1 positively driven, positively driven contact
• 1 NO contacts
• LED indicator: AC/DC 12-60 V yellow

127590
NZ2RK-511SVM5L060GEC2273
Safety switch NZ.RK, roller plunger, steel roller ø 8 mm, plug connector(s) M12

• Roller plunger, steel roller ø 8 mm
• Plug connector M12, 5-pin
• 1 positively driven, positively driven contact
• 1 NO contacts
• LED indicator: AC/DC 12-60 V yellow

090930
NZ2RK-528SVM5
Safety switch NZ.RK, roller plunger, steel roller ø 8 mm, plug connector(s) M12

• Roller plunger, steel roller ø 8 mm
• Plug connector M12, 5-pin
• 1 positively driven, positively driven contact
• 1 NO contacts

089018
NZ2RK-538SVM5
Safety switch NZ.RK, roller plunger, steel roller ø 8 mm, plug connector(s) M12

• Roller plunger, steel roller ø 8 mm
• Plug connector M12, 5-pin
• 2 pos. driven contacts

090975
NZ2RL-2121
Safety switch NZ.RL, extended roller plunger, steel roller ø 18 mm, plug connector SR11

• Extended roller plunger, steel roller ø 18 mm
• Plug connector(s) SR11, 11-pole PE
• 4 positively driven, positively driven contacts

095806
NZ2RL-2121C1831
Safety switch NZ.RL, extended roller plunger, steel roller ø 16 mm, plug connector(s) M26 (SR11)

• Extended roller plunger, steel roller ø 16 mm
• With grooved ball bearing
• Plug connector(s) M26 (SR11), 11-pole PE
• 4 positively driven, positively driven contacts

090958
NZ2RL-2131
Safety switch NZ.RL, extended roller plunger, steel roller ø 18 mm, plug connector SR11

• Extended roller plunger, steel roller ø 18 mm
• Plug connector(s) SR11, 11-pole PE
• 3 pos. driven contacts
• 1 NO contacts

090959
NZ2RL-3131
Safety switch NZ.RL, extended roller plunger, steel roller ø 18 mm, plug connector SR11

• Extended roller plunger, steel roller ø 18 mm
• Plug connector(s) SR11, 11-pole PE
• 2 pos. driven contacts
• 2 NO contacts

090025
NZ2RL-511
Safety switch NZ.RL, extended roller plunger, steel roller ø 18 mm, plug connector SR6

• Extended roller plunger, steel roller ø 18 mm
• Plug connector(s) SR6, 6-pin PE
• 1 positively driven, positively driven contact
• 1 NO contacts

090028
NZ2RL-511SVM5
Safety switch NZ.RL, extended roller plunger, steel roller ø 18 mm, plug connector M12

• Extended roller plunger, steel roller ø 18 mm
• Plug connector M12, 5-pin
• 1 positively driven, positively driven contact
• 1 NO contacts

091278
NZ2RL-538L060
Safety switch NZ.RL, extended roller plunger, steel roller ø 18 mm, plug connector(s) M26 (SR6)

• Extended roller plunger, steel roller ø 18 mm
• Plug connector(s) M26 (SR6), 6-pin PE
• 2 pos. driven contacts
• LED indicator: AC/DC 12-60 V red

105989
NZ2RL-538L0605MDC
Safety switch NZ.RL, extended roller plunger, steel roller ø 18 mm, plug connector M12

• Extended roller plunger, steel roller ø 18 mm
• Plug connector(s) M12, 5-pin without PE
• 2 pos. driven contacts
• LED indicator: AC/DC 12-60 V red

090974
NZ2RS-2121
Safety switch NZ.RS, roller plunger, steel roller ø 12 mm, plug connector SR11

• Roller plunger, steel roller ø 12 mm
• Version C according to EN 50041
• Plug connector(s) SR11, 11-pole PE
• 4 positively driven, positively driven contacts

090149
NZ2RS-2131
Safety switch NZ.RS, roller plunger, steel roller ø 12 mm, plug connector SR11

• Roller plunger, steel roller ø 12 mm
• Version C according to EN 50041
• Plug connector(s) SR11, 11-pole PE
• 3 pos. driven contacts
• 1 NO contacts

106478
NZ2RS-2131L024GEC2300
Safety switch NZ.RS, roller plunger, steel roller ø 12 mm, plug connector M12

• Roller plunger, steel roller ø 12 mm
• Version C according to EN 50041
• Plug connector(s) M12, 8-pin without PE
• 3 pos. driven contacts
• 1 NO contacts
• LED indicator: AC/DC 24 V yellow

090954
NZ2RS-3131
Safety switch NZ.RS, roller plunger, steel roller ø 12 mm, plug connector SR11

• Roller plunger, steel roller ø 12 mm
• Version C according to EN 50041
• Plug connector(s) SR11, 11-pole PE
• 2 pos. driven contacts
• 2 NO contacts

087074
NZ2RS-3131-9C-GMMF
Safety switch NZ.RS, roller plunger, steel roller ø 12 mm, plug connector MR9

• Roller plunger, steel roller ø 12 mm
• Version C according to EN 50041
• Plug connector(s) MR9, 8-pin PE
• 2 pos. driven contacts
• 2 NO contacts

090024
NZ2RS-511
Safety switch NZ.RS, roller plunger, steel roller ø 12 mm, plug connector SR6

• Roller plunger, steel roller ø 12 mm
• Version C according to EN 50041
• Plug connector(s) SR6, 6-pin PE
• 1 positively driven, positively driven contact
• 1 NO contacts

090147
NZ2RS-511L060
Safety switch NZ.RS, roller plunger, steel roller ø 12 mm, plug connector(s) M26 (SR6)

• Roller plunger, steel roller ø 12 mm
• Version C according to EN 50041
• Plug connector(s) M26 (SR6), 6-pin PE
• 1 positively driven, positively driven contact
• 1 NO contacts
• LED indicator: AC/DC 12-60 V red

082400
NZ2RS-511L060C1630
Safety switch NZ.RS, roller plunger, steel roller ø 12 mm, plug connector(s) M26 (SR6)

• Roller plunger, steel roller ø 12 mm
• Version C according to EN 50041
• Plug connector(s) M26 (SR6), 6-pin PE
• 1 positively driven, positively driven contact
• 1 NO contacts
• LED indicator: AC/DC 12-60 V yellow

079350
NZ2RS-511L060C1631
Safety switch NZ.RS, roller plunger, steel roller ø 12 mm, plug connector(s) M26 (SR6)

• Roller plunger, steel roller ø 12 mm
• Version C according to EN 50041
• M26 plug connector(s) (SR6), 6-pin PE; angled
• 1 positively driven, positively driven contact
• 1 NO contacts
• LED indicator: AC/DC 12-60 V yellow

090027
NZ2RS-511SVM5
Safety switch NZ.RS, roller plunger, steel roller ø 12 mm, plug connector M12

• Roller plunger, steel roller ø 12 mm
• Version C according to EN 50041
• Plug connector M12, 5-pin
• 1 positively driven, positively driven contact
• 1 NO contacts

098651
NZ2RS-511SVM5L060GE
Safety switch NZ.RS, roller plunger, steel roller ø 12 mm, plug connector M12

• Roller plunger, steel roller ø 12 mm
• Version C according to EN 50041
• Plug connector M12, 5-pin
• 1 positively driven, positively driven contact
• 1 NO contacts
• LED indicator: AC/DC 12-60 V yellow

105856
NZ2RS-511SVM5L060GEC2273
Safety switch NZ.RS, roller plunger, steel roller ø 12 mm, plug connector(s) M12

• Roller plunger, steel roller ø 12 mm
• Version C according to EN 50041
• Plug connector M12, 5-pin
• 1 positively driven, positively driven contact
• 1 NO contacts
• LED indicator: AC/DC 12-60 V yellow

090950
NZ2RS-528
Safety switch NZ.RS, roller plunger, steel roller ø 12 mm, plug connector SR6

• Roller plunger, steel roller ø 12 mm
• Version C according to EN 50041
• Plug connector(s) SR6, 6-pin PE
• 1 positively driven, positively driven contact
• 1 NO contacts

088197
NZ2RS-528L060
Safety switch NZ.RS, roller plunger, steel roller ø 12 mm, plug connector(s) M26 (SR6)

• Roller plunger, steel roller ø 12 mm
• Version C according to EN 50041
• Plug connector(s) M26 (SR6), 6-pin PE
• 1 positively driven, positively driven contact
• 1 NO contacts
• LED indicator: AC/DC 12-60 V red

090963
NZ2RS-528SVM5
Safety switch NZ.RS, roller plunger, steel roller ø 12 mm, plug connector M12

• Roller plunger, steel roller ø 12 mm
• Version C according to EN 50041
• Plug connector M12, 5-pin
• 1 positively driven, positively driven contact
• 1 NO contacts

090951
NZ2RS-538
Safety switch NZ.RS, roller plunger, steel roller ø 12 mm, plug connector SR6

• Roller plunger, steel roller ø 12 mm
• Version C according to EN 50041
• Plug connector(s) SR6, 6-pin PE
• 2 pos. driven contacts

090952
NZ2RS-538L060
Safety switch NZ.RS, roller plunger, steel roller ø 12 mm, plug connector(s) M26 (SR6)

• Roller plunger, steel roller ø 12 mm
• Version C according to EN 50041
• Plug connector(s) M26 (SR6), 6-pin PE
• 2 pos. driven contacts
• LED indicator: AC/DC 12-60 V red

095046
NZ2RS-538SEM4AS1
Safety switch NZ.RS ASi, roller plunger, plug connector(s) M12

• Roller plunger, steel roller ø 12 mm
• Plug connector(s) M12, 4-pin
• 2 pos. driven contacts

090964
NZ2RS-538SVM5
Safety switch NZ.RS, roller plunger, steel roller ø 12 mm, plug connector M12

• Roller plunger, steel roller ø 12 mm
• Version C according to EN 50041
• Plug connector M12, 5-pin
• 2 pos. driven contacts

090976
NZ2WO-2121
Safety switch NZ.WO, domed plunger, plug connector(s) SR11

• Rounded plunger
• Version B according to EN 50041 (hardened)
• Plug connector(s) SR11, 11-pole PE
• 4 positively driven, positively driven contacts

090912
NZ2WO-2131
Safety switch NZ.WO, domed plunger, plug connector(s) SR11

• Rounded plunger
• Version B according to EN 50041 (hardened)
• Plug connector(s) SR11, 11-pole PE
• 3 positively driven, positively driven contact
• 1 NO contacts

090913
NZ2WO-3131
Safety switch NZ.WO, domed plunger, plug connector(s) SR11

• Rounded plunger
• Version B according to EN 50041 (hardened)
• Plug connector(s) SR11, 11-pole PE
• 2 pos. driven contacts
• 2 NO contacts

090909
NZ2WO-511
Safety switch NZ.WO, domed plunger, plug connector(s) SR6

• Rounded plunger
• Version B according to EN 50041 (hardened)
• Plug connector(s) SR6, 6-pin PE
• 1 positively driven, positively driven contact
• 1 NO contacts

091280
NZ2WO-511L060
Safety switch NZ.WO, domed plunger, plug connector(s) SR6

• Rounded plunger
• Version B according to EN 50041 (hardened)
• Plug connector(s) SR6, 6-pin PE
• 1 positively driven, positively driven contact
• 1 NO contacts
• LED indicator: AC/DC 12-60 V red

059481
NZ2WO-511L060C1630
Safety switch NZ.WO, domed plunger, plug connector(s) SR6

• Rounded plunger
• Version B according to EN 50041 (hardened)
• Plug connector(s) SR6, 6-pin PE
• 1 positively driven, positively driven contact
• 1 NO contacts
• LED indicator: AC/DC 12-60 V yellow

059482
NZ2WO-511L060C1631
Safety switch NZ.WO, domed plunger, plug connector(s) SR6

• Rounded plunger
• Version B according to EN 50041 (hardened)
• SR6 angled plug connector, 6-pin PE
• 1 positively driven, positively driven contact
• 1 NO contacts
• LED indicator: AC/DC 12-60 V yellow

089014
NZ2WO-511SVM5
Safety switch NZ.WO, domed plunger, plug connector(s) M12

• Rounded plunger
• Version B according to EN 50041 (hardened)
• Plug connector M12, 5-pin
• 1 positively driven, positively driven contact
• 1 NO contacts

098652
NZ2WO-511SVM5L060GE
Safety switch NZ.WO, domed plunger, plug connector(s) M12

• Rounded plunger
• Version B according to EN 50041 (hardened)
• Plug connector M12, 5-pin
• 1 positively driven, positively driven contact
• 1 NO contacts
• LED indicator: AC/DC 12-60 V yellow

105851
NZ2WO-511SVM5L060GEC2273
Safety switch NZ.WO, domed plunger, plug connector(s) M12

• Rounded plunger
• Version B according to EN 50041
• Plug connector M12, 5-pin
• 1 positively driven, positively driven contact
• 1 NO contacts
• LED indicator: AC/DC 12-60 V yellow

091279
NZ2WO-528L060
Safety switch NZ.WO, domed plunger, plug connector(s) M26 (SR6)

• Rounded plunger
• Version B according to EN 50041 (hardened)
• Plug connector(s) M26 (SR6), 6-pin PE
• 1 positively driven, positively driven contact
• 1 NO contacts
• LED indicator: AC/DC 12-60 V red

090923
NZ2WO-528SVM5
Safety switch NZ.WO, domed plunger, plug connector(s) M12

• Rounded plunger
• Version B according to EN 50041 (hardened)
• Plug connector M12, 5-pin
• 1 positively driven, positively driven contact
• 1 NO contacts

087558
NZ2WO-538L060
Safety switch NZ.WO, domed plunger, plug connector(s) M26 (SR6)

• Rounded plunger
• Version B according to EN 50041 (hardened)
• Plug connector(s) M26 (SR6), 6-pin PE
• 2 positively driven, positively driven contacts
• LED indicator: AC/DC 12-60 V red

090924
NZ2WO-538SVM5
Safety switch NZ.WO, domed plunger, plug connector(s) M12

• Rounded plunger
• Version B according to EN 50041 (hardened)
• Plug connector M12, 5-pin
• 2 pos. driven contacts
