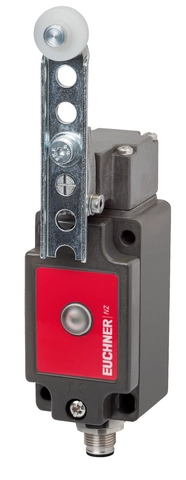

NZ2PB-511SVM5L060GEC2273 (Order no. 105853)

Safety switch NZ.PB, lever arm with plastic roller, plug connector SVM5

  • Version A according to EN 50041 (plastic roller ø 18 mm)
  • Plug connector M12
  • LED indicator
NZ2PB-511SVM5L060GEC2273 (Order no. 105853)

Description

Switching direction

  • Right, left or both sides

Lever arm adjustment

Lever arm length can be adjusted from 28 mm to 78 mm in steps of 12.5 mm.

LED function display

A function display is available for the following voltage range:

  • AC/DC 12-60 V yellow

Switching element

511

Snap-action switching contact 1 NC + 1 NO

Dimension drawing
Dimension drawing
Wiring diagram 511
Wiring diagram 511
Travel diagram
Travel diagram
Electromechanical safety switches in use

Dimensional drawings

Dimensional drawings
1Guide lug aligned
2Male socket adjustable (max. 270°)
3Positive opening function is dependent on maintaining this distance.
4Actuator (dog) must be positively mounted on the machine.
5Switching element ES511 snap-action contact element 1 NO contact + 1 NC contact, NC contact positive opening. Switching element in free position
A=Operating point
B=End position
C=Reset point

Connection examples

Connection examples

Shift travel diagrams

Shift travel diagrams
Contacts closed
Contacts open
Contacts positively driven

Technical data

Approvals

EAC_RU C-DE.MO05.B.00971/20DNV-GL_TAA0000172 Rev. 1c_UL_us_E155795_2/4CCC_2020980305000534_CQC2008010305306210

Electrical connection values

Display module
AC/DC 12 ... 60 ... 60 V LED yellow
Rated insulation voltage Ui 50 V
Rated impulse withstand voltage Uimp 1.5 kV
Utilization category
AC-15 4 A 30 V
DC-13 4 A 24 V
Short circuit protection according to IEC 60269-1 4A gG
Switching current
min. at DC 24V 10 mA
thermal rated current Ith 4 A

Mechanical values and environment

Approach speed 0.5 ... 120 m/min
Connection type
1 x Plug connector M12 (5-pin)
Number of NO contacts 1
Number of door position positively driven contacts 1
Actuating element
Slide bearing plastic Lever arm adjustable (d roller = 18 mm, length 28 - 78 mm)
Actuating force min. 15 N
Installation orientation any
Mechanical life 30 x 10⁶
Contact bounce time max. 3 ms
Switching principle Snap-action switching contact (Contact closing time<4 contact bounce time<3)
Contact closing time max. 4 ms
Degree of protection IP67
Ambient temperature -25 ... +80 °C
Material
Housing Anodized die-cast alloy
Contact Silver alloy, gold flashed

Characteristic values according to EN ISO 13849-1 and EN IEC 62061

B10DMission time
Monitoring of the guard position2x10720 y


Miscellaneous

C number
C2273

Downloads

Complete package

Download all important documents with a single click.

Content:

  • The operating instructions and any additions to the operating instructions or brief instructions
  • Any data sheets to supplement the operating instructions
  • The declaration of conformity
Download Complete Package (ZIP, 6,9 MB)

Single Documents

Other Documents

Ordering data

Ordernumber 105853
Item designation NZ2PB-511SVM5L060GEC2273
Gross weight 0,42kg
Customs tariff number 85365019000
ECLASS 27-27-26-01 Safety position switch (Type 1)
