NZ2RL-538L0605MDC (Order no. 105989)

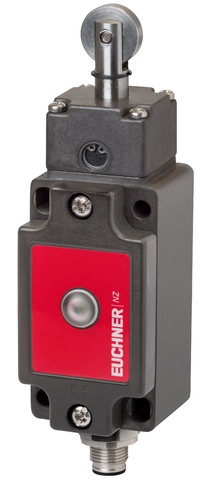

Safety switch NZ.RL, extended roller plunger, steel roller ø 18 mm, plug connector M12

  • Extended roller plunger, steel roller ø 18 mm
  • Plug connector(s) M12, 5-pin without PE
  • 2 pos. driven contacts
  • LED indicator: AC/DC 12-60 V red
NZ2RL-538L0605MDC (Order no. 105989)

Description

Approach direction

Horizontal

Can be adjusted in 90° steps

LED indicator

The switch has a freely assignable LED indicator.

Switching element

538

Slow-action switching contact 2 positively driven, positively driven contact

Dimension drawing
Dimension drawing
Wiring diagram ES538H
Wiring diagram ES538H
Travel diagram
Travel diagram
Electromechanical safety switches in use

Dimensional drawings

Dimensional drawings
1Guide lug aligned
2Operating point
3Free position
4MENCOM (5-pin)

Connection examples

Connection examples

Shift travel diagrams

Shift travel diagrams
Contacts closed
Contacts open
Contacts positively driven

Technical data

Approvals

EAC_RU C-DE.MO05.B.00971/20DNV-GL_TAA0000172 Rev. 1DGUV_NZ_ET 23025_ET 23026CCC2020980305000534_CQC2008010305306210_2024c_UL_us_E155795_2/4

Electrical connection values

Display module
AC/DC 12 ... 60 ... 60 V LED red
Rated insulation voltage Ui 250 V
Rated impulse withstand voltage Uimp 2.5 kV
Operating voltage DC max. 24 V DC
Utilization category
DC-13 4 A 24 V
Short circuit protection according to IEC 60269-1 4A gG
Switching current
min. at DC 24V 1 mA
thermal rated current Ith 4 A

Mechanical values and environment

Approach speed 0.1 ... 20 m/min
Connection type
1 x Plug connector M12 (5-pin without PE)
Number of door position positively driven contacts 2
Actuating element
Slide bearing metal Roller plunger (d roller = 18 mm)
Actuating force 15 ... 30 N
Installation orientation any
Mechanical life 30 x 10⁶
Switching principle Slow-action switching contact
Degree of protection IP65
Ambient temperature -25 ... +80 °C
Material
Housing Anodized die-cast alloy
Contact Silver alloy, gold flashed

Characteristic values according to EN ISO 13849-1 and EN IEC 62061

B10DMission time
Safety position sensor2x10720 y
Important! Values valid at DC-13 100 mA/24V


Miscellaneous

Additional feature (without earth conductor, special wiring)

Downloads

Complete package

Download all important documents with a single click.

Content:

  • The operating instructions and any additions to the operating instructions or brief instructions
  • Any data sheets to supplement the operating instructions
  • The declaration of conformity
Download Complete Package (ZIP, 5,0 MB)

Single Documents

Other Documents

Ordering data

Ordernumber 105989
Item designation NZ2RL-538L0605MDC
Gross weight 0,361kg
Customs tariff number 85365019000
ECLASS 27-27-26-01 Safety position switch (Type 1)
