NZ2HS-538SVM5 (Order no. 090869)

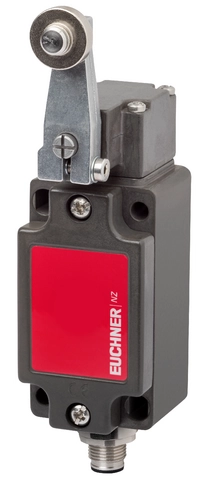

Safety switch NZ.HS, lever arm with steel roller, plug connector SVM5

  • Version A according to EN 50041 (steel roller ø 18 mm)
  • Plug connector SVM5
NZ2HS-538SVM5 (Order no. 090869)


Approach direction


Switching direction

  • Right, left or both sides

Switching element


Slow-action switching contact 2 NC

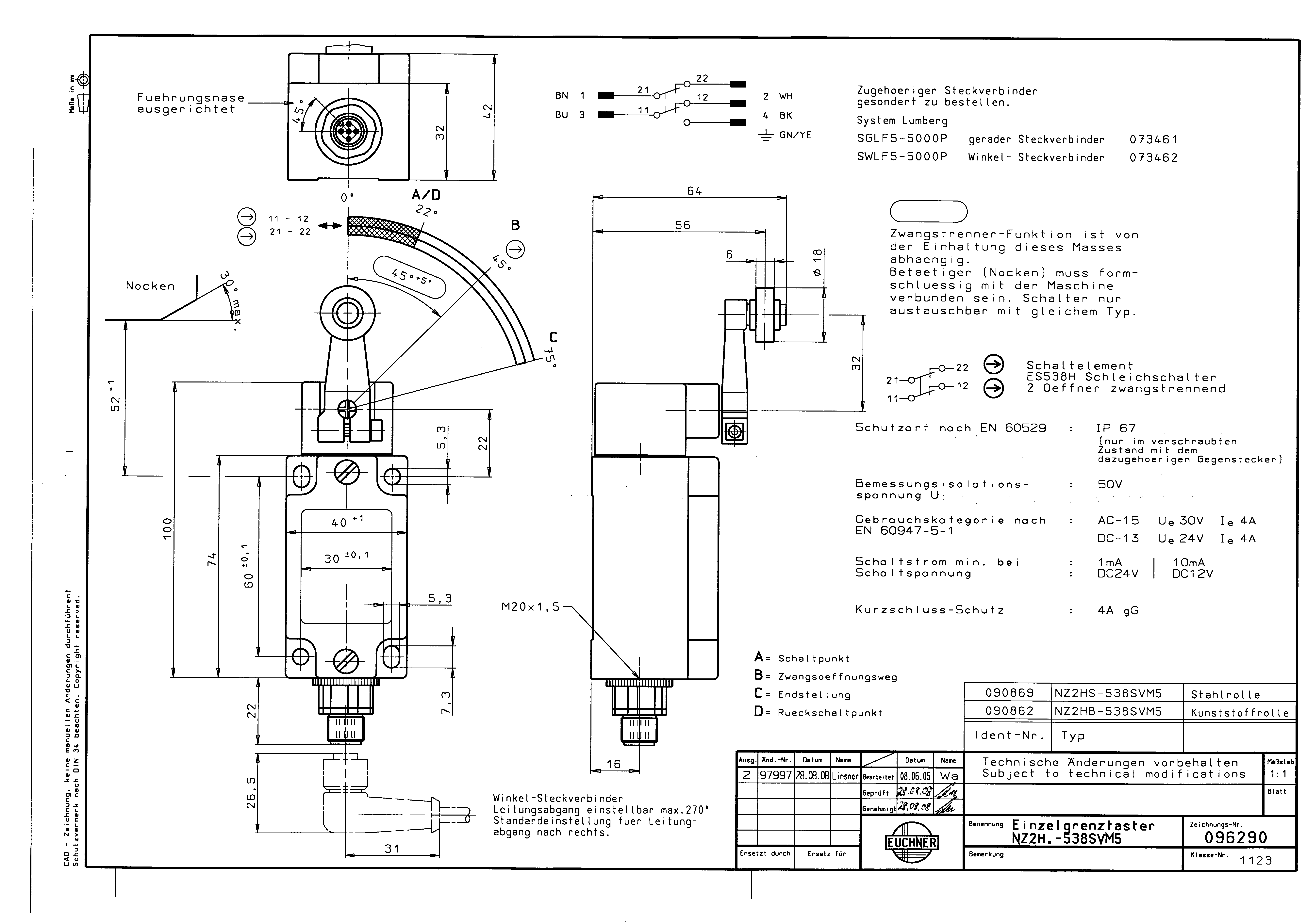

Dimension drawing
Dimension drawing
Wiring diagram 538H
Wiring diagram 538H
Travel diagram
Travel diagram
Electromechanical safety switches in use

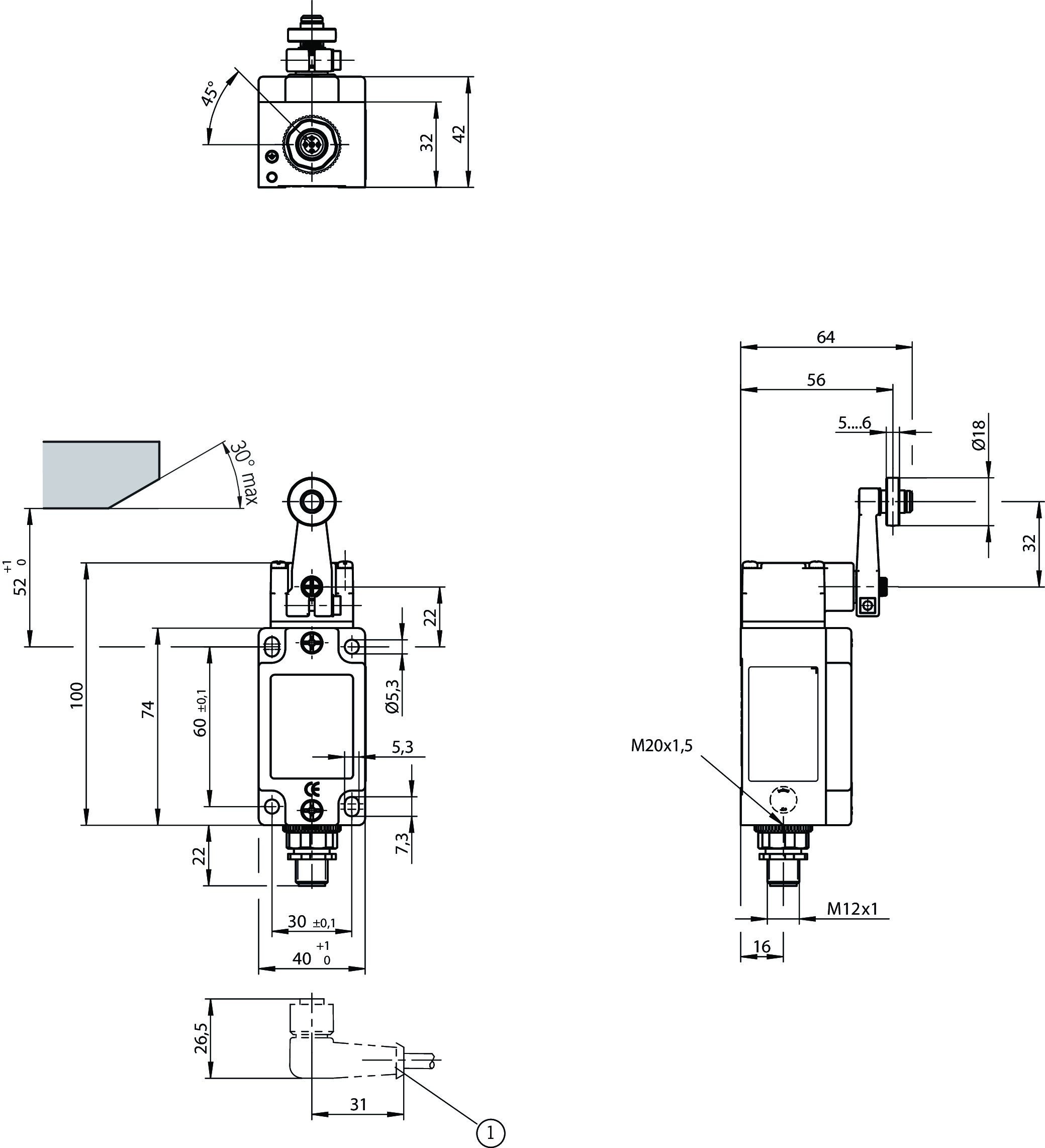

Dimensional drawings

Dimensional drawings
1Right-angle plug connector: cable outlet adjustable max. 270° Default setting for cable outlet to the right.

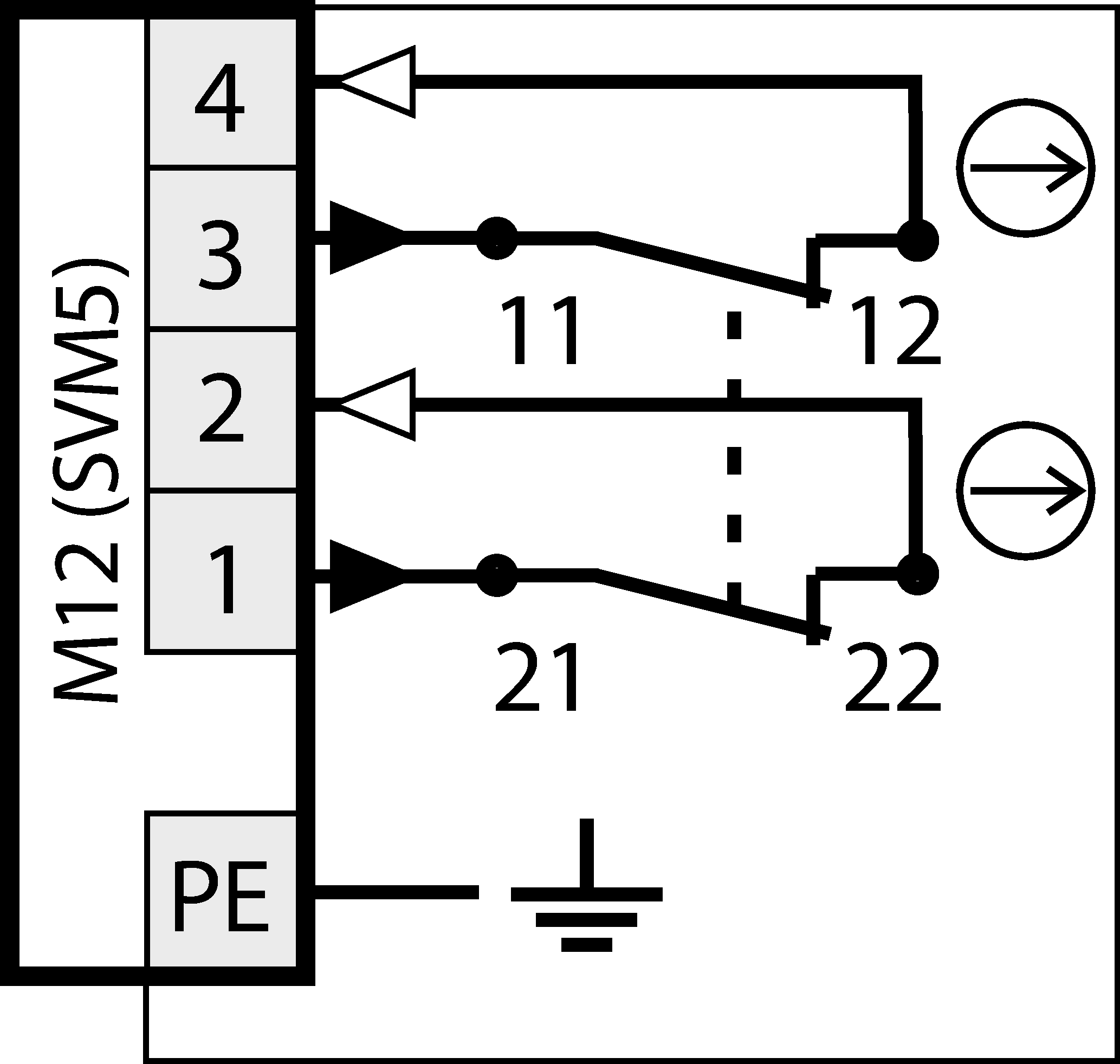

Connection examples

Connection examples

Shift travel diagrams

Shift travel diagrams
Contacts closed
Contacts open
Contacts positively driven

Technical data


EAC_RU C-DE.MO05.B.00971/20DNV-GL_TAA0000172 Rev. 1DGUV_NZ_ET 23025_ET 23026c_UL_us_E155795_2/4CCC_2020980305000534_CQC2008010305306210

Electrical connection values

Rated insulation voltage Ui 50 V
Rated impulse withstand voltage Uimp 1.5 kV
Utilization category
DC-13 4 A 24 V
AC-15 4 A 30 V
Short circuit protection according to IEC 60269-1 4A gG
Switching current
min. at DC 24V 1 mA
thermal rated current Ith 4 A

Mechanical values and environment

Approach speed 0.1 ... 60 m/min
Connection type
1 x Plug connector M12 (5-pin)
Number of door position positively driven contacts 2
Actuating element
Slide bearing metal Lever arm (d roller = 18 mm, length 32 mm)
Actuating force min. 15 N
Installation orientation any
Mechanical life 30 x 10⁶
Switching principle Slow-action switching contact
Degree of protection IP67
Ambient temperature -25 ... +80 °C
Contact Silver alloy, gold flashed
Housing Anodized die-cast alloy

Characteristic values according to EN ISO 13849-1 and EN IEC 62061

B10DMission time
Monitoring of the guard position2x10720 y


Complete package

Download all important documents with a single click.


  • The operating instructions and any additions to the operating instructions or brief instructions
  • Any data sheets to supplement the operating instructions
  • The declaration of conformity
Download Complete Package (ZIP, 7,0 MB)

Single Documents

Other Documents

Ordering data

Ordernumber 090869
Item designation NZ2HS-538SVM5
Gross weight 0,372kg
Customs tariff number 85365019000
ECLASS 27-27-26-01 Safety position switch (Type 1)
