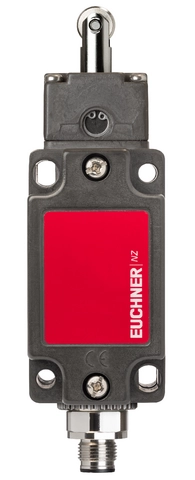

NZ2RS-511SVM5 (Order no. 090027)

Safety switch NZ.RS, roller plunger, steel roller ø 12 mm, plug connector M12

  • Roller plunger, steel roller ø 12 mm
  • Version C according to EN 50041
  • Plug connector M12, 5-pin
  • 1 positively driven, positively driven contact
  • 1 NO contacts
NZ2RS-511SVM5 (Order no. 090027)

Description

Approach direction

Horizontal

Can be adjusted in 90° steps

Switching element

511

Snap-action switching contact 1 positively driven, positively driven contact 1 NO contact

Dimension drawing
Dimension drawing
Wiring diagram 528H
Wiring diagram 528H
Travel diagram
Travel diagram
Electromechanical safety switches in use

Dimensional drawings

Dimensional drawings
1Operating point
2Free position
3Male socket adjustable (max. 270°)

Connection examples

Connection examples

Shift travel diagrams

Shift travel diagrams
Contacts closed
Contacts open
Contacts positively driven

Technical data

Approvals

EAC_RU C-DE.MO05.B.00971/20DNV-GL_TAA0000172 Rev. 1CCC2020980305000534_CQC2008010305306210_2024c_UL_us_E155795_2/4

Electrical connection values

Rated insulation voltage Ui 50 V
Rated impulse withstand voltage Uimp 1.5 kV
Utilization category
DC-13 4 A 24 V
AC-15 4 A 30 V
Short circuit protection according to IEC 60269-1 4A gG
Switching current
min. at DC 24V 10 mA
thermal rated current Ith 4 A

Mechanical values and environment

Approach speed 0.1 ... 20 m/min
Connection type
1 x Plug connector M12 (5-pin)
Number of NO contacts 1
Number of door position positively driven contacts 1
Actuating element
Slide bearing metal Roller plunger (Steel roller, d roller = 12 mm)
Actuating force 15 ... 30 N
Installation orientation any
Mechanical life 30 x 10⁶
Contact bounce time max. 3 ms
Switching principle Snap-action switching contact (Contact closing time<4 contact bounce time<3)
Schließzeit max. 4 ms
Degree of protection IP67
Ambient temperature -25 ... +80 °C
Material
Contact Silver alloy, gold flashed
Housing Anodized die-cast alloy

Characteristic values according to EN ISO 13849-1 and EN IEC 62061

B10DMission time
Safety position sensor2x10720 y
Important! Values valid at DC-13 100 mA/24V


Downloads

Complete package

Download all important documents with a single click.

Content:

  • The operating instructions and any additions to the operating instructions or brief instructions
  • Any data sheets to supplement the operating instructions
  • The declaration of conformity
Download Complete Package (ZIP, 4,8 MB)

Single Documents

Other Documents

Ordering data

Ordernumber 090027
Item designation NZ2RS-511SVM5
Gross weight 0,347kg
Customs tariff number 85365019000
ECLASS 27-27-26-01 Safety position switch (Type 1)
