NZ2HS-2131L024GEC2300 (Order no. 122405)

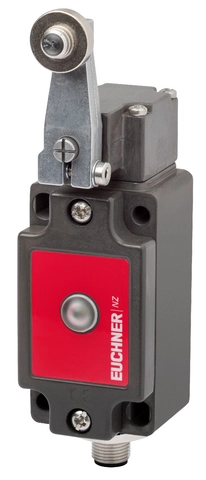

Safety switch NZ.HS, lever arm with steel roller ø 18 mm, plug connector SM8

  • Version C according to EN 50041 (steel roller ø 18 mm)
  • Plug connector SM8
  • LED indicator
NZ2HS-2131L024GEC2300 (Order no. 122405)

Description

Approach direction

Horizontal

Can be adjusted in 90° steps

Switching element

2131H

Slow-action switching contact 3 NC + 1 NO

Function
Function
Dimension drawing
Dimension drawing
Wiring diagram
Wiring diagram
Wiring diagram 2131H
Wiring diagram 2131H
Electromechanical safety switches in use

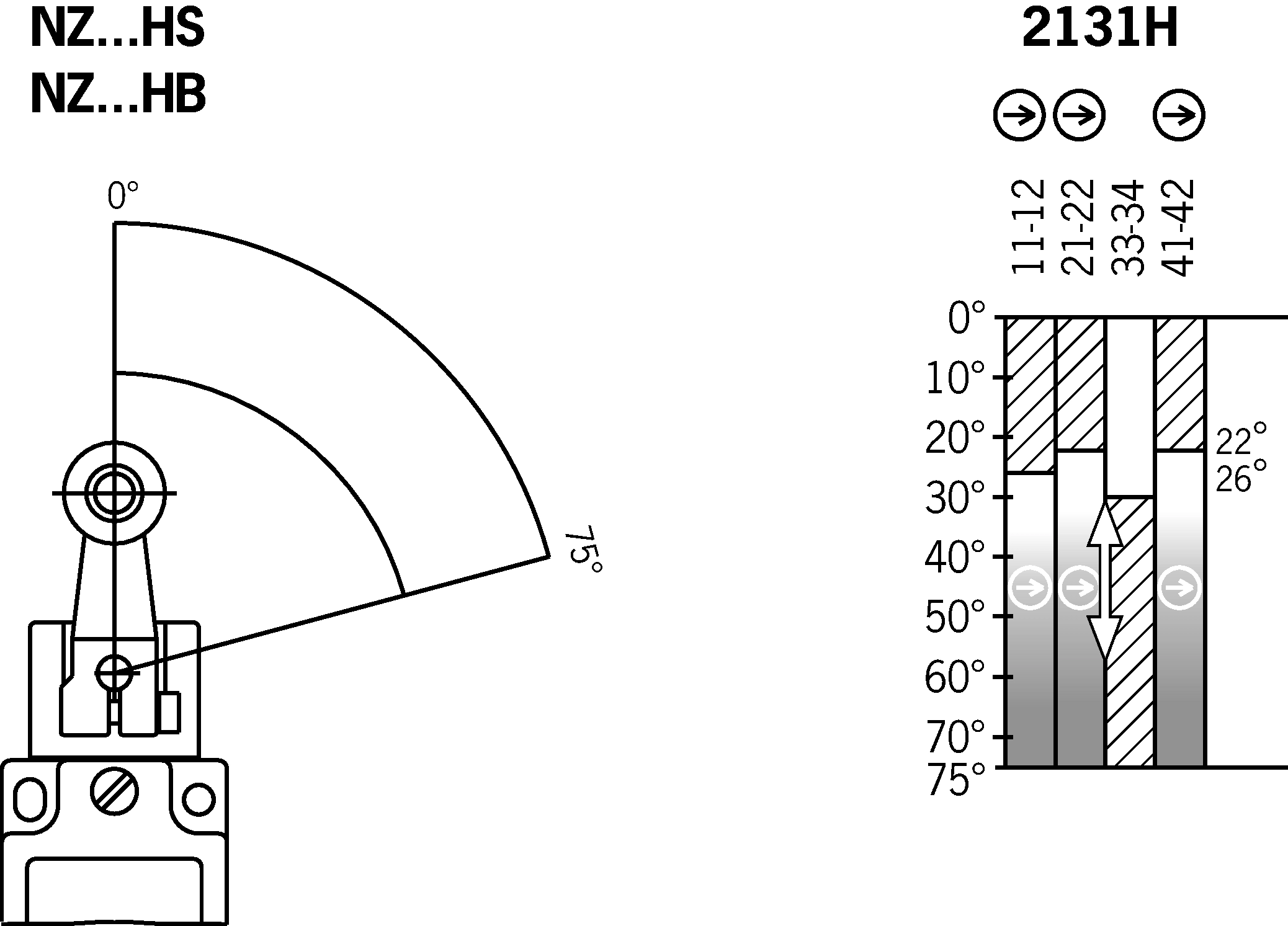

Functional drawings

Functional drawings
Contacts closed
Contacts open
Contacts positively driven

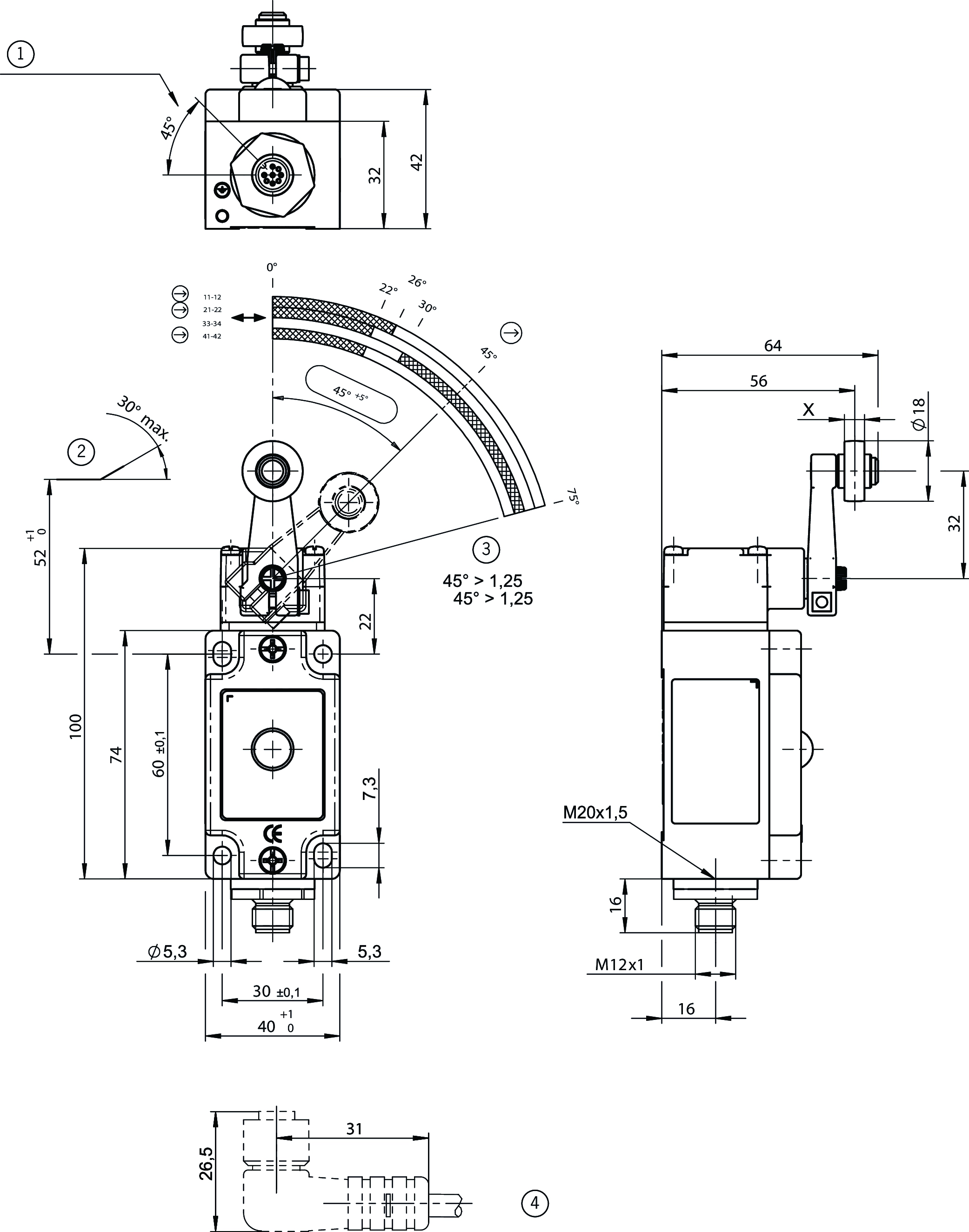

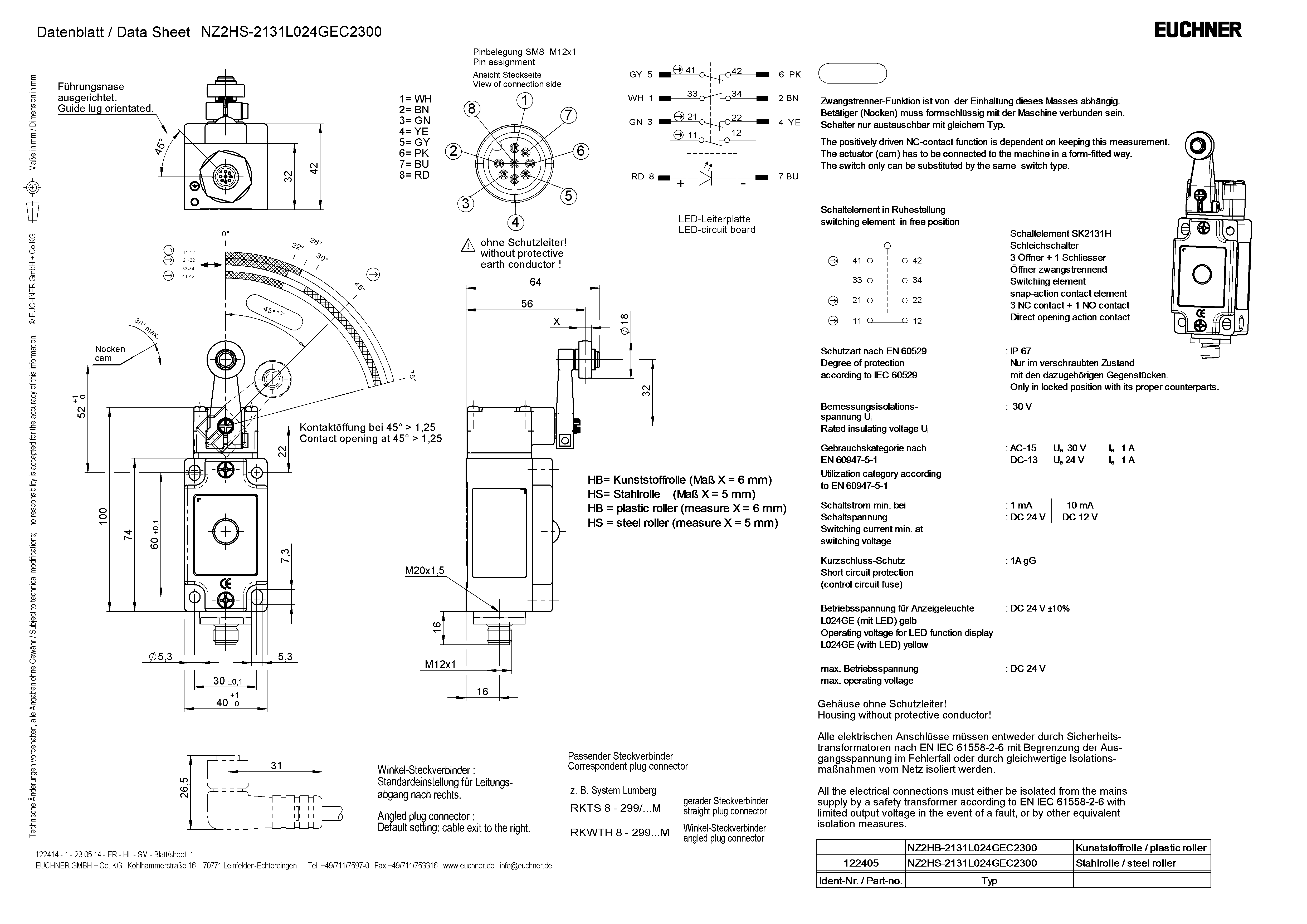

Dimensional drawings

Dimensional drawings
1Guide lug aligned
2Dog
3Contact opening
4Right-angle plug connector: default setting for cable outlet right

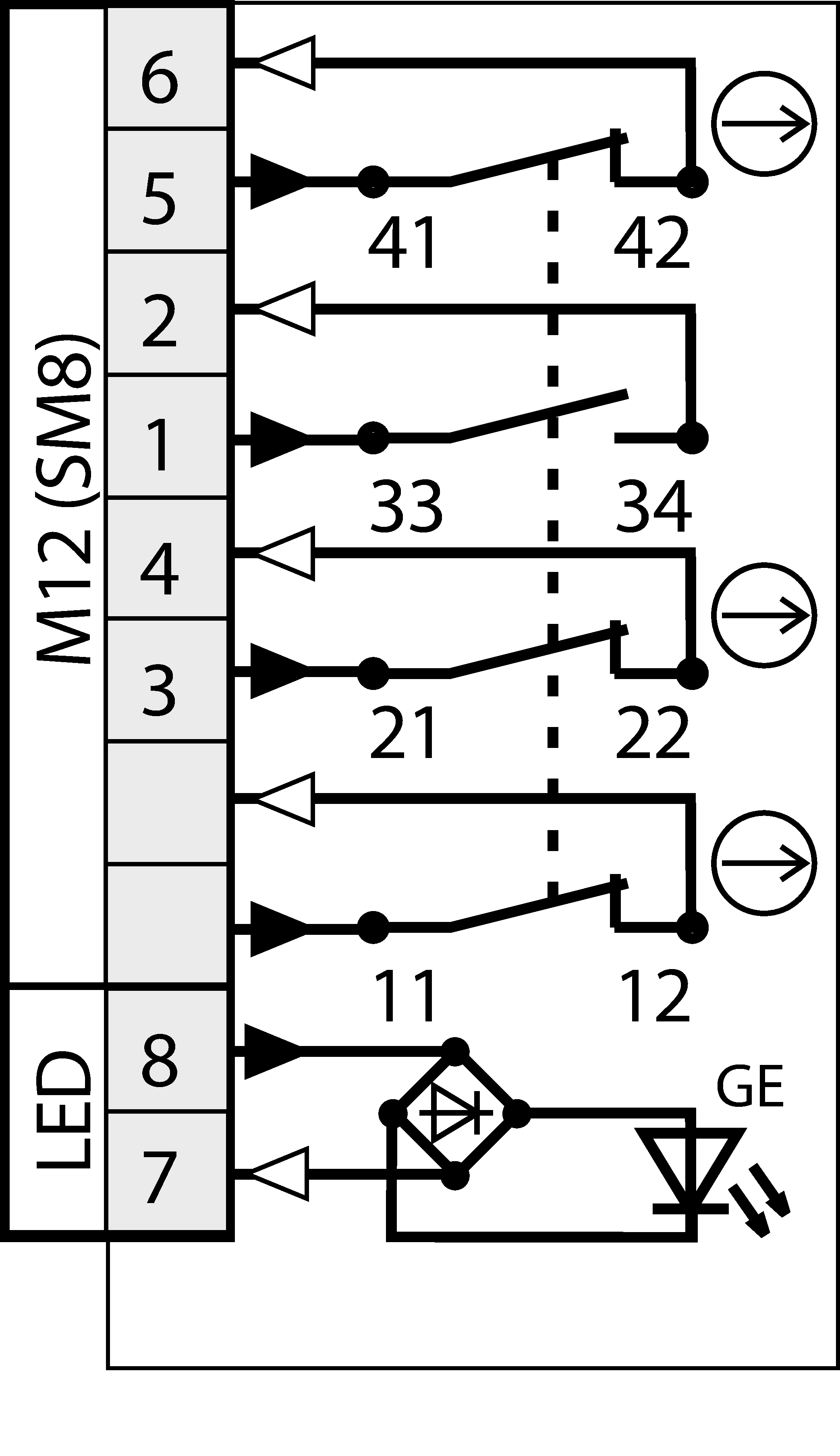

Connection examples

Connection examples
1WH
2BN
3GN
4YE
5GY
6PK
7BU
8RD
Awithout earth conductor

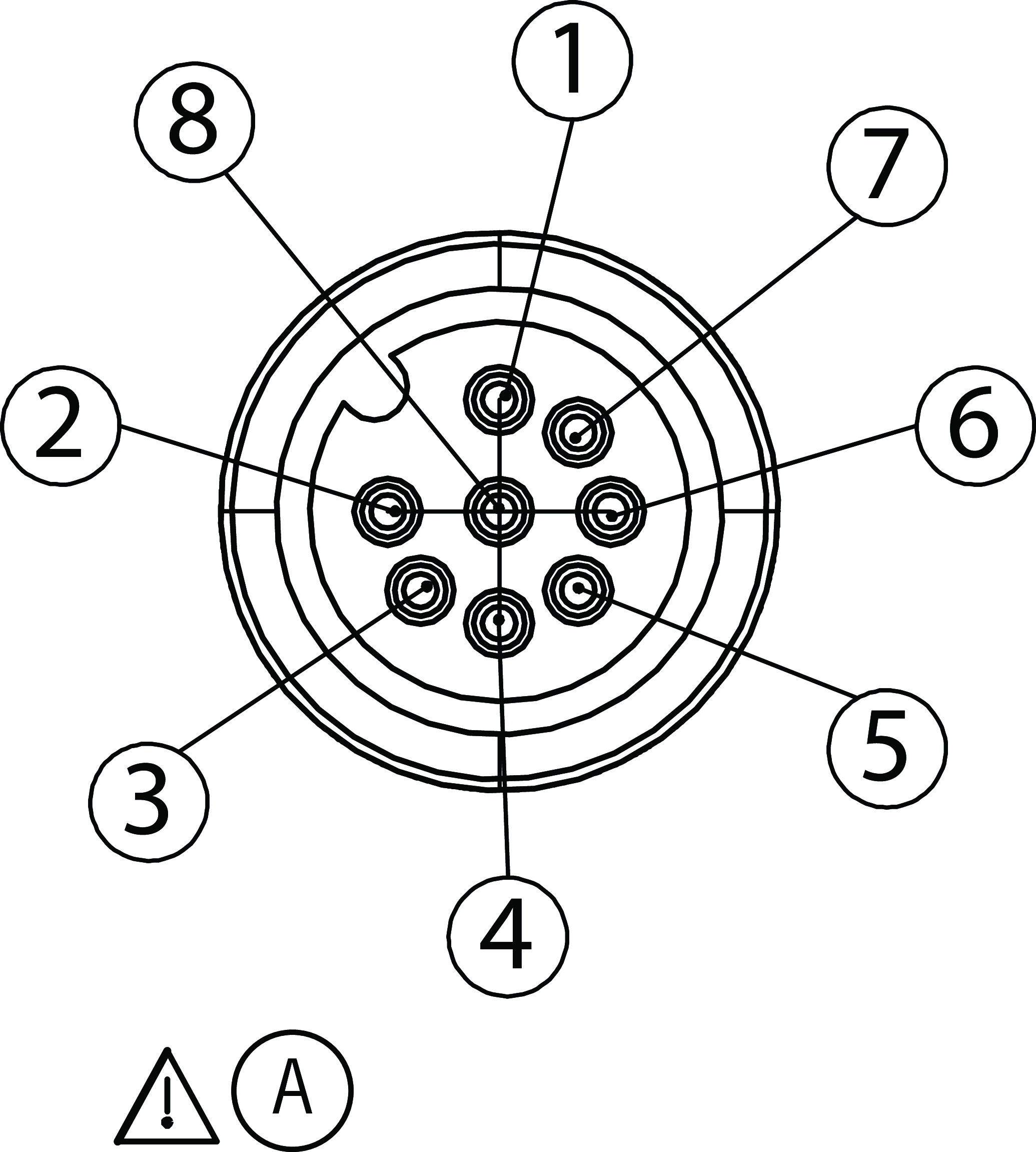

Connection examples

Connection examples

Technical data

Approvals

EAC_RU C-DE.MO05.B.00971/20DNV-GL_TAA0000172 Rev. 1DGUV_NZ_ET 23025_ET 23026c_UL_us_E155795_2/4CCC_2020980305000534_CQC2008010305306210

Electrical connection values

Display module 24 V 10% ... 10%
Rated insulation voltage Ui 30 V
Rated impulse withstand voltage Uimp 1.5 kV
Utilization category
DC-13 1 A 24 V
AC-15 1 A 30 V
Short circuit protection according to IEC 60269-1 1A gG
Switching current
min. at DC 24V 1 mA
thermal rated current Ith 1 A

Mechanical values and environment

Approach speed 0.1 ... 60 m/min
Connection type
1 x Plug connector M12 (8-pin without PE)
Number of NO contacts 1
Number of door position positively driven contacts 3
Actuating element
Slide bearing metal Lever arm (d roller = 18 mm, length = 32 mm)
Actuating force min. 15 N
Installation orientation any
Mechanical life 30 x 10⁶
Switching principle Slow-action switching contact
Degree of protection IP67
Ambient temperature -25 ... +80 °C
Material
Contact Silver alloy, gold flashed
Housing Anodized die-cast alloy

Characteristic values according to EN ISO 13849-1 and EN IEC 62061

B10DMission time
Monitoring of the guard position2x10720 y


Miscellaneous

C number
C2300 with 4-fold element + yellow LED, M12x1, 8-pin plug, circuit board with LED bonded in the cover
Additional feature Housing without earth conductor! All the electrical connections must either be isolated from the mains supply by a safety transformer according to EN IEC 61558-2-6 with limited output voltage in the event of a fault, or by other equivalent insulation measures.

Downloads

Complete package

Download all important documents with a single click.

Content:

  • The operating instructions and any additions to the operating instructions or brief instructions
  • Any data sheets to supplement the operating instructions
  • The declaration of conformity
Download Complete Package (ZIP, 7,0 MB)

Single Documents

Other Documents

Ordering data

Ordernumber 122405
Item designation NZ2HS-2131L024GEC2300
Gross weight 0,395kg
Customs tariff number 85365019000
ECLASS 27-27-26-01 Safety position switch (Type 1)
