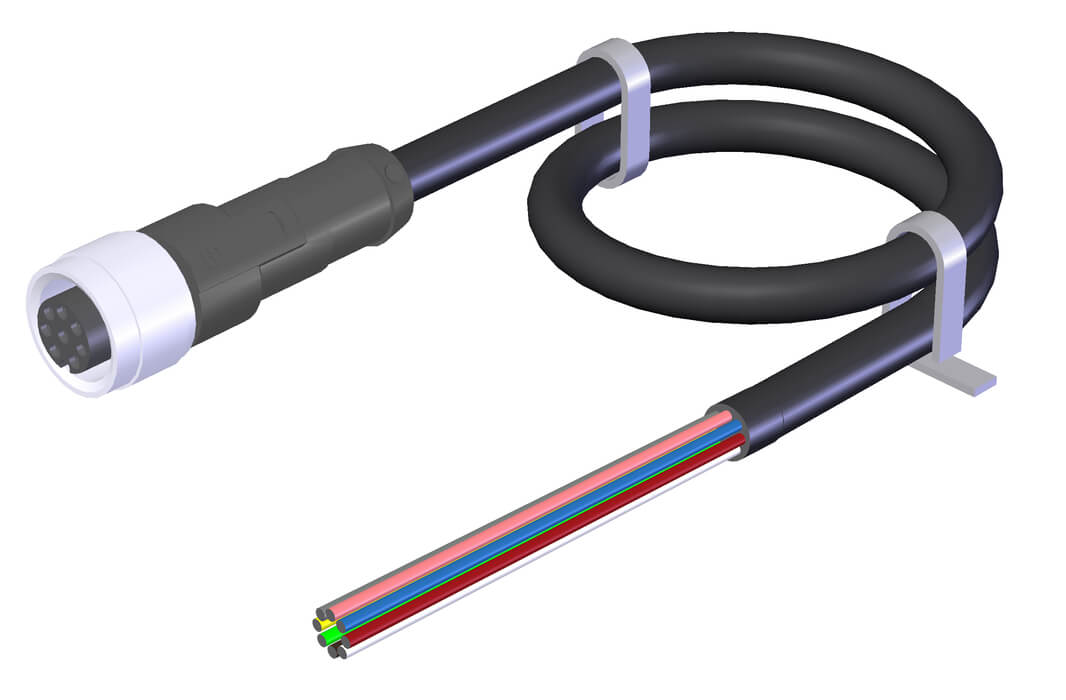

Connection cable with plug connector M12, 8-pin, 20m
- M12 female plug, 8-pin
- Straight plug connector
- PVC cable
- Cable length 20 m
- With flying lead
Description
Terminal assignment
View of connection side |
Pin |
Conductor coloring |
|---|---|---|
|
1 |
WH |
2 |
BN |
|
3 |
GN |
|
4 |
YE |
|
5 |
GY |
|
6 |
PK |
|
7 |
BU |
|
8 |
RD |
Dimension drawing
| 1 | Cable socket M12x1 / 8-pin |
Terminal assignment
Technical data
Approvals
Mechanical values and environment
| Cable ambient temperature (dynamic) | -5 ... +80 °C |
| Cable ambient temperature (static) | -25 ... +80 °C |
| Dynamic bending radius | 15 x cable diameter |
| Static bending radius | 5 x cable diameter |
| Sheath material | PVC |
| Conductor insulation material | PVC |
| Conductor material | Cu flexible wire bare |
| Fire behavior | Flame retardant according to UL-Style 2464 |
| Drag chain suitability | No |
| UV resistance | Moderately UV-resistant |
| Number of conductors | 8 |
| Type of cable | straight |
| Cable length | 20 m |
| Cable diameter | |
| Approx. | 5,9 mm |
| Conductor cross-section | 0.25 mm² |
| Conductor identification | Color code |
| Sheath color | Black |
| Connection 1 | |
| Tightening torque | 0,5 Nm |
| Degree of protection | IP67 (In the inserted state) |
| Plug lock material | CuZn, nickel-plated |
| Insertion cycles | 100 |
| Insulating material group | I |
| Connection | Plug connectors M12x1 |
| Connection type | Female plug |
| Cable outlet | straight |
| Number of pins | 8 |
| Plug lock | Screw connection |
| Plug housing material | TPU |
| Connection 2 | |
| Conductor end | Sheath stripped |
| Connection | Flying lead |
Electrical connection ratings
| Nominal current | |
| At 25° C | 2 A |
| Rated voltage | 30 V |
| Overvoltage category according to IEC EN 60664-1 | III |
| Rated surge voltage according to IEC 60664-1 | 800 V |
| Specific cable resistance | 78 Ω/km |
| Specific inductance | 0,51 mH/km |
| Specific capacitance | 107 nF/km |
| Connection 1 | |
| Degree of contamination according to EN 60664-1 | 3 |
