C-M12F08-08X025PU30,0-MA-115257 (Order no. 115257)

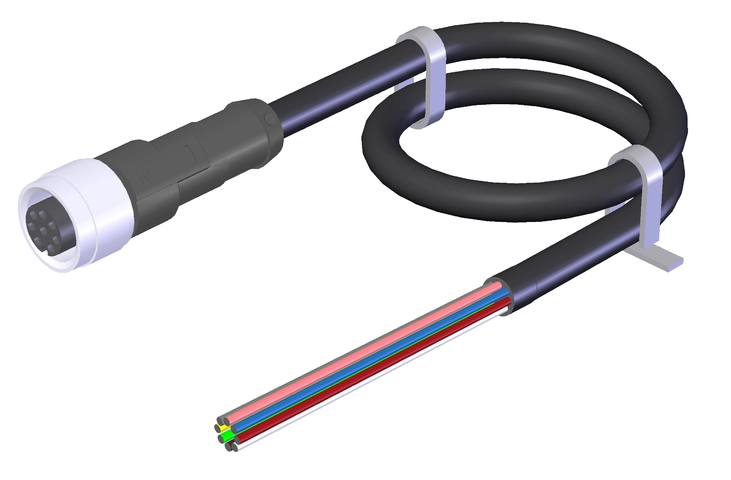

Connection cable with plug connector M12, 8-pin, 30m

  • M12 female plug, 8-pin
  • Straight plug connector
  • PUR cable
  • Cable length 30 m
  • With flying lead
C-M12F08-08X025PU30,0-MA-115257 (Order no. 115257)

Description

Terminal assignment

View of connection side

Pin

Conductor coloring

1

WH

2

BN

3

GN

4

YE

5

GY

6

PK

7

BU

8

RD

Dimension drawing
Dimension drawing
Terminal assignment
Terminal assignment

Dimension drawing

Dimension drawing

Terminal assignment

Terminal assignment

Technical data

Approvals

Zulassung c_UL_us LISTED

Mechanical values and environment

Cable ambient temperature (dynamic) -25 ... +80 °C
Cable ambient temperature (static) -25 ... +80 °C
Dynamic bending radius 10 x cable diameter
Static bending radius 8 x cable diameter
Plug lock material CuZn/ Ni
Sheath material PUR
Fire behavior Flame retardant
Halogen-free Yes (According to DIN VDE 0472 part 815)
Drag chain suitability Yes
Number of conductors 8
Type of cable straight
Cable length 30 m
Cable diameter
Approx. 5,9 mm
Conductor cross-section 0.25 mm²
Sheath color Black
Connection 1
Tightening torque 0,5 Nm
Degree of protection IP67 (In the inserted state)
Insertion cycles 100
Connection Plug connectors M12x1
Connection type Female plug
Cable outlet straight
Number of pins 8
Plug lock Screw connection
Plug housing material TPU
Connection 2
Conductor end Sheath stripped
Connection Flying lead

Electrical connection ratings

Nominal current
At 25° C 2 A
Connection 1
Degree of contamination according to EN 60664-1 3

Downloads

Technical support

Technical support
Do you have technical questions about our products, their possible use or applications? Our experts will be happy to help.

EUCHNER USA Inc.
+1 315 701-0315
info(at)euchner-usa.com
