NZ2RS-538SEM4AS1 (Order no. 095046)

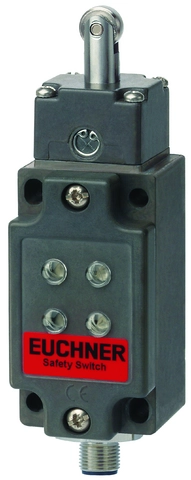

Safety switch NZ.RS ASi, roller plunger

  • Version C according to EN 50041 NZ.RS (steel roller ø 12 mm)
NZ2RS-538SEM4AS1 (Order no. 095046)

Description

Switching direction

Right, left or both sides.

AS-Interface inputs

D0, D1

Positively driven contact 1

D2, D3

Positively driven contact 2

Evaluation is performed via a safety monitor.

AS-Interface outputs

D1

LED red

D2

LED green

LED function display

  • The Power LED indicates the operating voltage on the bus.
  • The Fault LED indicates if a fault has been detected on the AS-Interface bus.
  • The green and the red LEDs can be controlled as required by the control system via the bus using bits D1 and D2.
Dimension drawing
Dimension drawing
Connector assignment
Connector assignment
Travel diagram
Travel diagram
Electromechanical safety switches in use

Dimensional drawings

Dimensional drawings

Connection examples

Connection examples
View of connection side

Shift travel diagrams

Shift travel diagrams
Contacts closed
Contacts open
Contacts positively driven

Technical data

Approvals

EAC_RU C-DE.MO05.B.00971/20DNV-GL_TAA0000172 Rev. 1DGUV_NZ_ET 23025_ET 23026Asi Interface_56201_

Electrical connection values

ASI operating current max. 45 mA
ASI data in
according to AS-i Safety at Work D0, D1 / D2, D3 (see positively driven contact)
ASI data out
LED green D2 (1 = LED on)
LED red D1 (1 = LED on)
ASI-LED
LED red Fault (Offline phase or address 0)
LED green Power (Asi voltage present)
ASI slave type
according to ASI specification 2.1 ID code: B
according to ASI specification 2.1 EA code: 7
ASI voltage 22.5 ... 30 ... 31.6 V

Mechanical values and environment

Approach speed 0.1 ... 20 m/min
Connection type
1 x Plug connector M12 (4-pin)
Number of door position positively driven contacts
according to AS-i Safety at Work 2 (D0, D1, D2, D3 / 1 = door closed)
Actuating element
Slide bearing metal Roller plunger (Steel roller, d roller = 12 mm)
Actuating force min. 30 N
Installation orientation any
Mechanical life 30 x 10⁶
Switching principle Slow-action switching contact
Degree of protection IP67
Ambient temperature -25 ... +70 °C
Material
Contact Silver alloy, gold flashed
Housing Anodized die-cast alloy

Characteristic values according to EN ISO 13849-1 and EN IEC 62061

B10DMission time
Monitoring of the guard position2x10720 y


Downloads

Complete package

Download all important documents with a single click.

Content:

  • The operating instructions and any additions to the operating instructions or brief instructions
  • Any data sheets to supplement the operating instructions
  • The declaration of conformity
Download Complete Package (ZIP, 1,9 MB)

Single Documents

Other Documents

Ordering data

Ordernumber 095046
Item designation NZ2RS-538SEM4AS1
Gross weight 0,339kg
Customs tariff number 85365019000
ECLASS 27-27-26-01 Safety position switch (Type 1)
