HomeProductsElectromechanical safety switches with guard lockingNZ.VZ.VS metal switch without guard lock monitoringNZ2VZ-3131E3VSE04

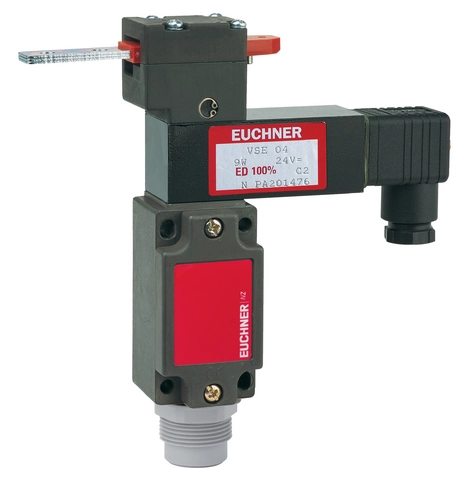

Safety switch NZ.VZ.VSE, plug connector SR11 (guard locking, open-circuit current principle)
- Housing according to EN 50041
- Plug connector SR11
Description

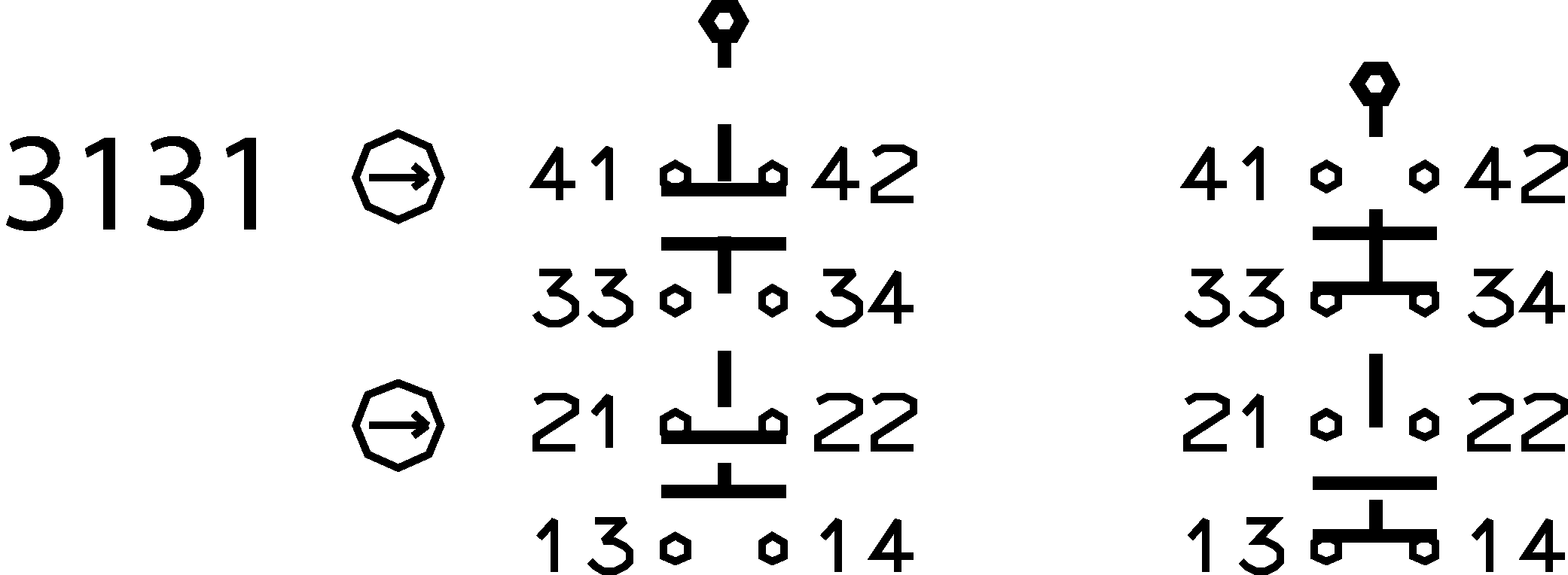

Functional drawings

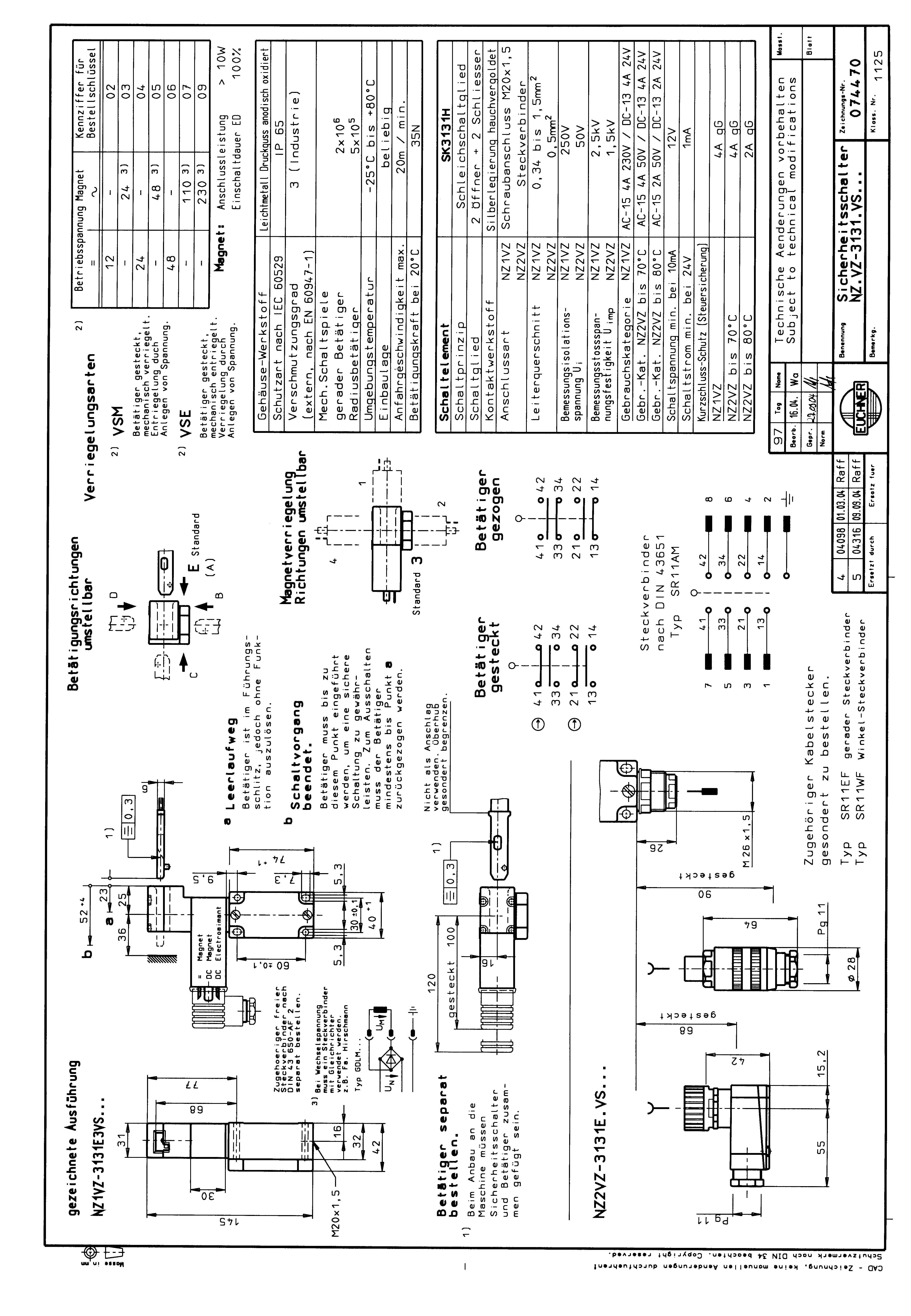

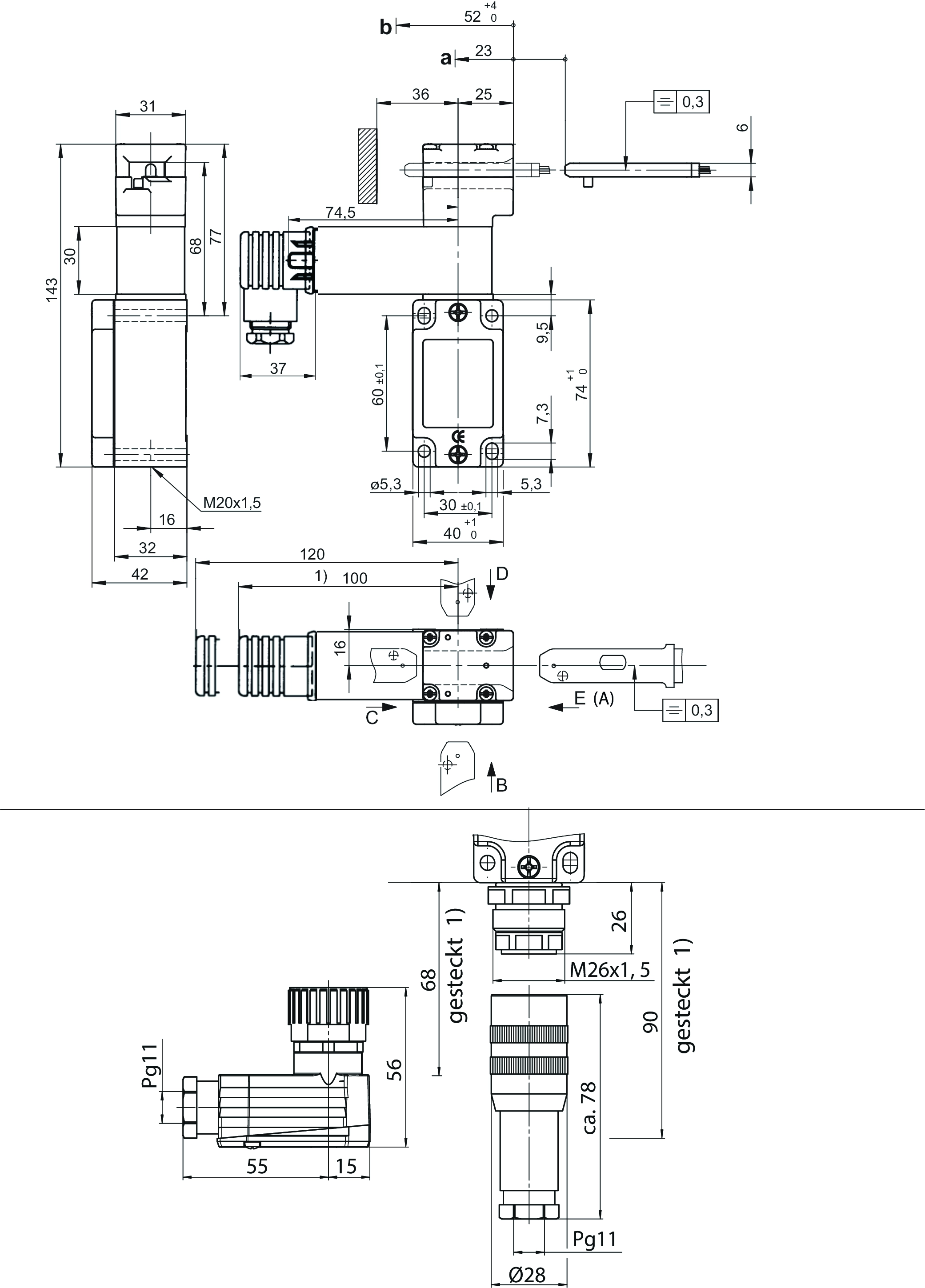

Dimensional drawings
a | Travel without operation: actuator is in the guide slot, but function is not triggered. |
b | Switching operation completed: actuator must be inserted to this point to ensure safe switching. The actuator must be withdrawn at least to point a for switching off. |

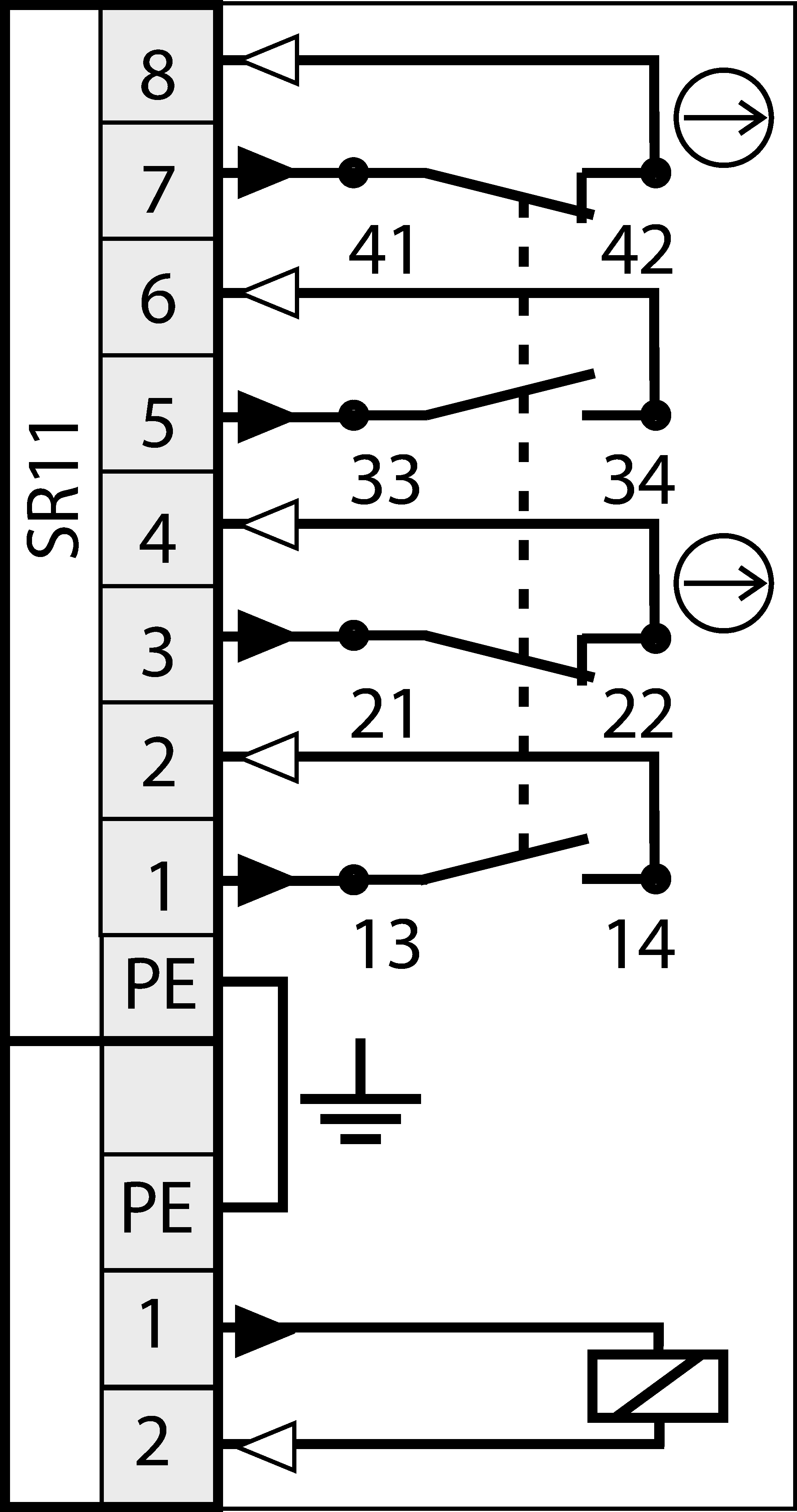

Connection examples
Technical data
Approvals
Electrical connection values
Rated insulation voltage Ui | 250 V |
Rated impulse withstand voltage Uimp | 1.5 kV |
Utilization category | |
AC-15 | 4 A 50 V (>70 °C =>2 A) |
DC-13 | 4 A 24 V (>70 °C =>2 A) |
Short circuit protection according to IEC 60269-1 | 4A gG (> 70 °C => 2A gG) |
Solenoid operating voltage | |
DC | 24 V -15% ... 10% |
Switching voltage | |
min. at 10 mA | 12 V |
Switching current | |
min. at 24 V | 1 mA |
thermal rated current Ith | 4 A (>70 °C =>2 A) |
Mechanical values and environment
Approach speed | max. 20 m/min |
Approach direction | A |
Connection type | |
1 x | Plug connector SR11 (11-pin + PE) |
Number of door position NO contacts | 2 |
Number of door position positively driven contacts | 2 |
Extraction force | 40 N |
Actuation frequency | max. 1200 1/h |
Actuating force | 45 N |
Installation orientation | any |
Insertion depth | 52 mm |
Solenoid alignment | 3 |
Mechanical life | 2 x 10⁶ |
Retention force | 35 N |
Switching principle | Slow-action switching contact |
Degree of protection | IP65 |
Ambient temperature | -25 ... +80 °C |
Material | |
Housing | Anodized die-cast alloy |
Contact | Silver alloy, gold flashed |
Locking force Fmax | 2000 N |
Locking force FZh | 1500 N |
Guard locking principle | Open-circuit current principle |
Characteristic values according to EN ISO 13849-1 and EN IEC 62061
B10D | Mission time | |
---|---|---|
Monitoring of guard locking | 4.5x106 | 20 y |
Important! Values valid at DC-13 100 mA/24V |
PL | Maximum SIL | Category | Mission time | |
---|---|---|---|---|
Control of guard locking | Depending on external control of guard locking | 20 y |
In combination with actuator ACTUATOR-Z-G
Overtravel | 4 mm |
In combination with actuator ACTUATOR-Z-GN
Overtravel | 16 mm |
Accessories
Actuator
Actuator for safety switches NZ.VZ, NZ.VZ.VS and TZ
016849
BETAETIGER-Z-G
BETAETIGER-Z-G
- Two stainless-steel safety screws per actuator
074411
BETAETIGER-Z-G/V25
BETAETIGER-Z-G/V25
- Two stainless-steel safety screws per actuator
- Packaging unit 25 pieces
072251
BETAETIGER-Z-GN
BETAETIGER-Z-GN
- Two stainless-steel safety screws per actuator
097436
BETAETIGER-Z-GME
BETAETIGER-Z-GME
- Made of solid stainless steel
- Two stainless-steel safety screws per actuator
Connection material
Metal bolt
Bolt for safety switch NZ.VZ and NZ.VZ.VS
057735
RIEGEL NZ-C
RIEGEL NZ-C
- Bolt for safety switch NZ.VZ and NZ.VZ.VS
- Steel bolt
- For doors hinged on the left
- Suitable for a door gap of approx. 15 mm
083890
RIEGEL NZ-AB
RIEGEL NZ-AB
- Bolt for safety switch NZ.VZ and NZ.VZ.VS
- Steel bolt
- For doors hinged on the right
- Ball detent mechanism in closed position
- Suitable for a door gap of approx. 15 mm
083892
RIEGEL NZ-CB
RIEGEL NZ-CB
- Bolt for safety switch NZ.VZ and NZ.VZ.VS
- Steel bolt
- For doors hinged on the left
- Ball detent mechanism in closed position
- Suitable for a door gap of approx. 15 mm
Bolt for safety switch NZ.VZ, NZ.VZ.VS and TZ
028357
RIEGEL NZ/TZ-S1
RIEGEL NZ/TZ-S1
- Bolt for safety switch NZ.VZ, NZ.VZ.VS and TZ
- Aluminum bolt
- For doors hinged on the right or left.
- Spring catch in open position
- Suitable for a door gap of approx. 15 mm
028359
RIEGEL NZ/TZ-S2
RIEGEL NZ/TZ-S2
- Bolt for safety switch NZ.VZ, NZ.VZ.VS and TZ
- Aluminum bolt
- For doors hinged on the right or left.
- Spring catch in open position
- Suitable for a door gap of approx. 15 mm
Bolt for safety switch NZ.VZ, NZ.VZ.VS and TZ with escape release
079785
RIEGEL NZ/TZ-S1/CF
RIEGEL NZ/TZ-S1/CF
- Aluminum bolt
- For doors hinged on the left
- Bolt with escape lever
- Spring catch in open position
- Suitable for a door gap of approx. 5 mm
079786
RIEGEL NZ/TZ-S1/AF
RIEGEL NZ/TZ-S1/AF
- Aluminum bolt
- For doors hinged on the right
- Bolt with escape lever
- Spring catch in open position
- Suitable for a door gap of approx. 5 mm
Downloads
Complete package
Download all important documents with a single click.
Content:
- The operating instructions and any additions to the operating instructions or brief instructions
- Any data sheets to supplement the operating instructions
- The declaration of conformity
Single Documents
Declarations of conformity
EU declaration of conformity
Doc. no.
Version
Language
Size
EU declaration of conformity
Déclaration UE de conformité
Declaración de conformidad UE
EU-Konformitätserklärung
Dichiarazione UE di conformità
Déclaration UE de conformité
Declaración de conformidad UE
EU-Konformitätserklärung
Dichiarazione UE di conformità
Doc. no.
EDC2539628
Version
Language
Size
0,2 MB
EU declaration of conformity
Déclaration UE de conformité
Declaración de conformidad UE
EU-Konformitätserklärung
Dichiarazione UE di conformità
Déclaration UE de conformité
Declaración de conformidad UE
EU-Konformitätserklärung
Dichiarazione UE di conformità
Doc. no.
EDC2539628
Version
Language
Size
0,2 MB
UKCA-Konformitätserklärung
Doc. no.
Version
Language
Size
UKCA-Konformitätserklärung
Doc. no.
EDC20001551
Version
Language
Size
0,1 MB
Instructions
Operating Instructions Safety Switch NZ.VZ-…VS
Doc. no.
Version
Language
Size
Operating Instructions Safety Switch NZ.VZ-…VS
Mode d’emploi Interrupteur de sécurité NZ.VZ-…VS
Manual de instrucciones Interruptor de seguridad NZ.VZ-…VS
Betriebsanleitung Sicherheitsschalter NZ.VZ-…VS
Mode d’emploi Interrupteur de sécurité NZ.VZ-…VS
Manual de instrucciones Interruptor de seguridad NZ.VZ-…VS
Betriebsanleitung Sicherheitsschalter NZ.VZ-…VS
Doc. no.
2094066
Version
04/24
Language
Size
3,0 MB
Betriebsanleitung Sicherheitsschalter NZ.VZ-…VS
Doc. no.
2094066
Version
04/24
Language
Size
0,8 MB
Istruzioni di impiego Finecorsa di sicurezza NZ.VZ-…VS
Doc. no.
2094066
Version
04/24
Language
Size
0,8 MB
Návod na prevádzku Bezpečnostný spínač NZ.VZ-…VS
Doc. no.
2094066
Version
04/24
Language
Size
1,3 MB
Other Documents
Approvals and certificates
c UL us
Doc. no.
Version
Language
Size
c UL us
Doc. no.
Version
Language
Size
0,3 MB
Sales documents
Safety Switches with Metal Housing
Doc. no.
Version
Language
Size
Safety Switches with Metal Housing
Doc. no.
100369
Version
11-03/18
Language
Size
7,8 MB
Interrupteurs de sécurité avec boîtier métallique
Doc. no.
100676
Version
11-03/18
Language
Size
7,9 MB
Interruptores de seguridad con carcasa metálica
Doc. no.
104856
Version
11-03/18
Language
Size
14,0 MB
Sicherheitsschalter mit Metallgehäuse
Doc. no.
100319
Version
11-03/18
Language
Size
7,9 MB
金属壳体 的安全开关
Doc. no.
102453
Version
11-03/18
Language
Size
8,2 MB
Bezpečnostní spínače s kovovým pouzdrem
Doc. no.
121650
Version
11-03/18
Language
Size
7,8 MB
CAD data
Ordering data
Ordernumber | 074474 |
Item designation | NZ2VZ-3131E3VSE04 |
Gross weight | 0,82kg |
Customs tariff number | 85365019000 |
ECLASS | 27-27-26-03 Safety switch with guard control |
