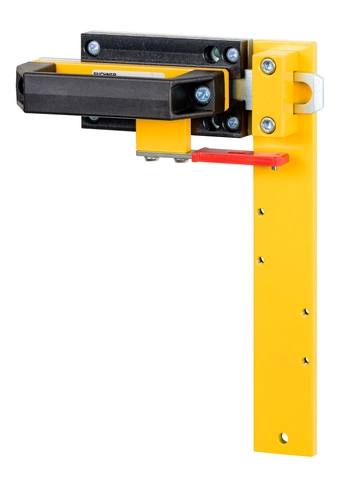

RIEGEL NZ-C (Order no. 057735)

Bolt for safety switch NZ.VZ and NZ.VZ.VS

  • Bolt for safety switch NZ.VZ and NZ.VZ.VS
  • Steel bolt
  • For doors hinged on the left
  • Suitable for a door gap of approx. 15 mm
RIEGEL NZ-C (Order no. 057735)

Description

Scope of delivery

  • Actuator

  • Switch bracket


To be ordered separately:


  • Safety switch

Door types and door hinges

Suitable for hinged and sliding doors
Suitable for doors hinged on the left
With door hinge, door cannot be opened inwards.

Integrated lockout bar

With the aid of the integrated lockout bar, the bolt can be secured in the open position, e.g. using padlocks. It is possible to prevent people from being locked in the danger area unintentionally.

Dimension drawing
Dimension drawing

Dimensional drawings

Dimensional drawings
1View B
2View D
3Safety switch NZ.VZ... Approach direction C
4Safety guard frame (40x40)
5Door hinged on the left
6Attention! Bolt is not allowed to be used in conjunction with an escape release!

Technical data

Mechanical values and environment

Approach direction C
Number of safety switches that can be mounted 1
Escape release none
Material
Handle Plastic
Switch bracket Steel powder-coated
Guide strips Plastic
Base plate Galvanized steel

Miscellaneous

Detent mechanism none

Downloads

Complete package

Download all important documents with a single click.

Content:

  • The operating instructions and any additions to the operating instructions or brief instructions
  • Any data sheets to supplement the operating instructions
  • The declaration of conformity
Download Complete Package (ZIP, 9,2 MB)

Single Documents

Doc. no.
Version
Language
Size
Doc. no. 2530033
Safety Information for Bolts
Information de sécurité pour verrous-targettes
Información de seguridad para cerrojos
Sicherheitsinformation für Riegel
Doc. no.
2530033
Version
04-03/24
Language
Size
0,2 MB
Doc. no. 2530033
Sicherheitsinformation für Riegel
Doc. no.
2530033
Version
04-03/24
Language
Size
0,2 MB
Doc. no. 2530033
Informação de segurança referente ao trinco
Doc. no.
2530033
Version
04-03/24
Language
Size
0,4 MB
Doc. no. 2530033
Informazioni sulla sicurezza per il chiavistello
Doc. no.
2530033
Version
04-03/24
Language
Size
0,1 MB
Doc. no. 2530033
Bezpečnostní informace pro petlice
Doc. no.
2530033
Version
04-03/24
Language
Size
0,5 MB
Doc. no. 2530033
Tolózár biztonsági információi
Doc. no.
2530033
Version
04-03/24
Language
Size
0,5 MB
Doc. no. 2530033
Информация за безопасност за ригели
Doc. no.
2530033
Version
04-03/24
Language
Size
0,5 MB
Doc. no. 2530033
Sikkerhedsinformation for bolte
Doc. no.
2530033
Version
04-03/24
Language
Size
0,4 MB
Doc. no. 2530033
Ohutusalane teave riivistuste kohta
Doc. no.
2530033
Version
04-03/24
Language
Size
0,5 MB
Doc. no. 2530033
Turvallisuustietoja salvalle
Doc. no.
2530033
Version
04-03/24
Language
Size
0,4 MB
Doc. no. 2530033
Πληροφορίες ασφαλείας για μάνδαλα
Doc. no.
2530033
Version
04-03/24
Language
Size
0,5 MB
Doc. no. 2530033
Sigurnosne informacije za brave
Doc. no.
2530033
Version
04-03/24
Language
Size
0,5 MB
Doc. no. 2530033
Aizbīdņu drošības informācija
Doc. no.
2530033
Version
04-03/24
Language
Size
0,5 MB
Doc. no. 2530033
Saugos informacija skląsčiui
Doc. no.
2530033
Version
04-03/24
Language
Size
0,5 MB
Doc. no. 2530033
Veiligheidsinformatie voor grendels
Doc. no.
2530033
Version
04-03/24
Language
Size
0,4 MB
Doc. no. 2530033
Sikkerhetsinformasjon for låser
Doc. no.
2530033
Version
04-03/24
Language
Size
0,4 MB
Doc. no. 2530033
Informacje o bezpieczeństwie dotyczące użytkowania zasuw
Doc. no.
2530033
Version
04-03/24
Language
Size
0,5 MB
Doc. no. 2530033
Säkerhetsinformation för regeln
Doc. no.
2530033
Version
04-03/24
Language
Size
0,4 MB
Doc. no. 2530033
Varnostne informacije o zapahu
Doc. no.
2530033
Version
04-03/24
Language
Size
0,5 MB
Doc. no. 2530033
Bezpečnostná informácia pre závory
Doc. no.
2530033
Version
04-03/24
Language
Size
0,5 MB
Doc. no. 2530033
Sürgüler için güvenlik bilgisi
Doc. no.
2530033
Version
04-03/24
Language
Size
0,5 MB
Doc. no. 2530033
Informații de siguranță privind zăvoarele
Doc. no.
2530033
Version
04-03/24
Language
Size
0,5 MB

Other Documents

Ordering data

Ordernumber 057735
Item designation RIEGEL NZ-C
Gross weight 2,057kg
European Article Number (EAN) 4047048007116
