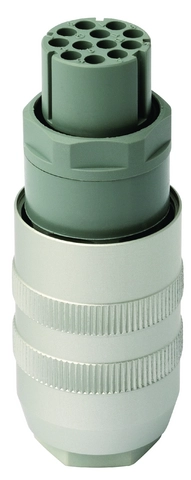

SR11EF (Order no. 070859)

Plug connector SR11 for safety switches NZ and TZ

  • Crimp contacts
  • Cable optional
  • Coding shells
SR11EF (Order no. 070859)

Description

Coding shells

Two coding shells and screws. If used only matching connectors can be mated.

Cable (optional)

Cable sleeve PUR, color gray, conductor cross-section 1.0 mm².

Crimp contacts

Socket contact (included):

Required crimp tool (supplied by Hirschmann):

  • Hirschmann crimp tool XZC 0704 932507005


  • Hirschmann extraction tool XWA 164 931812001

Connector assignment for plug with cable

11
22
33
44
55
66
77
88
99
1010
1111

12
Dimension drawing
Dimension drawing
Dimension drawing
Dimension drawing

Dimensional drawings

Dimensional drawings
1Pin assignment view of connection side

Dimensional drawings

Dimensional drawings

Technical data

Electrical connection values

Connection cross section 0.14 ... 0.5 mm²
Rated voltage
AC/DC 60 V
Rated current I 5000 mA

Mechanical values and environment

Connection type Crimp connection
Connection type Female plug
Plug connector designation SR11
Cable outlet straight
Cable diameter 8 ... 10 mm
Number of pins 12 11 + PE
Degree of protection IP65
Plug lock Screw connection
Ambient temperature -40 ... +90 °C
Material
Plug housing PET (with metal union nut)

Downloads

Complete package

Download all important documents with a single click.

Content:

  • The operating instructions and any additions to the operating instructions or brief instructions
  • Any data sheets to supplement the operating instructions
  • The declaration of conformity
Download Complete Package (ZIP, 1,0 MB)

Single Documents

Other Documents

Ordering data

Ordernumber 070859
Item designation SR11EF
Gross weight 0,044kg
European Article Number (EAN) 4047048000544
Customs tariff number 85369010000
