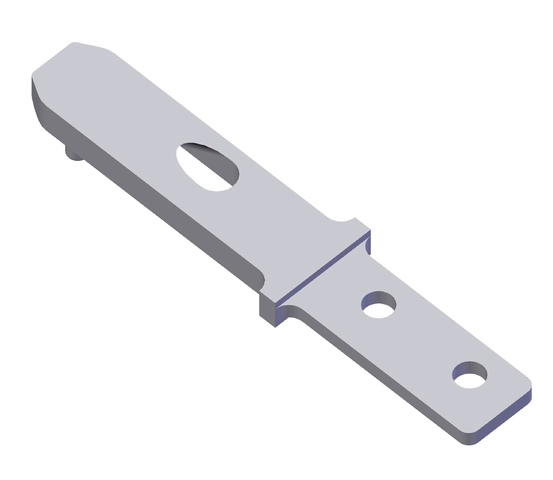

BETAETIGER-Z-GME (Order no. 097436)

Actuator for safety switches NZ.VZ, NZ.VZ.VS and TZ

  • Made of solid stainless steel
  • Two stainless-steel safety screws per actuator
BETAETIGER-Z-GME (Order no. 097436)

Description

Straight actuator

The straight actuator is used on sliding doors or hinged doors with door radii greater than 1,000 mm. Safety screws prevent unscrewing of the actuators. The safety screws included can be inserted with a normal tool, but cannot be removed again.

Actuator with overtravel

4 mm

for doors with normal play

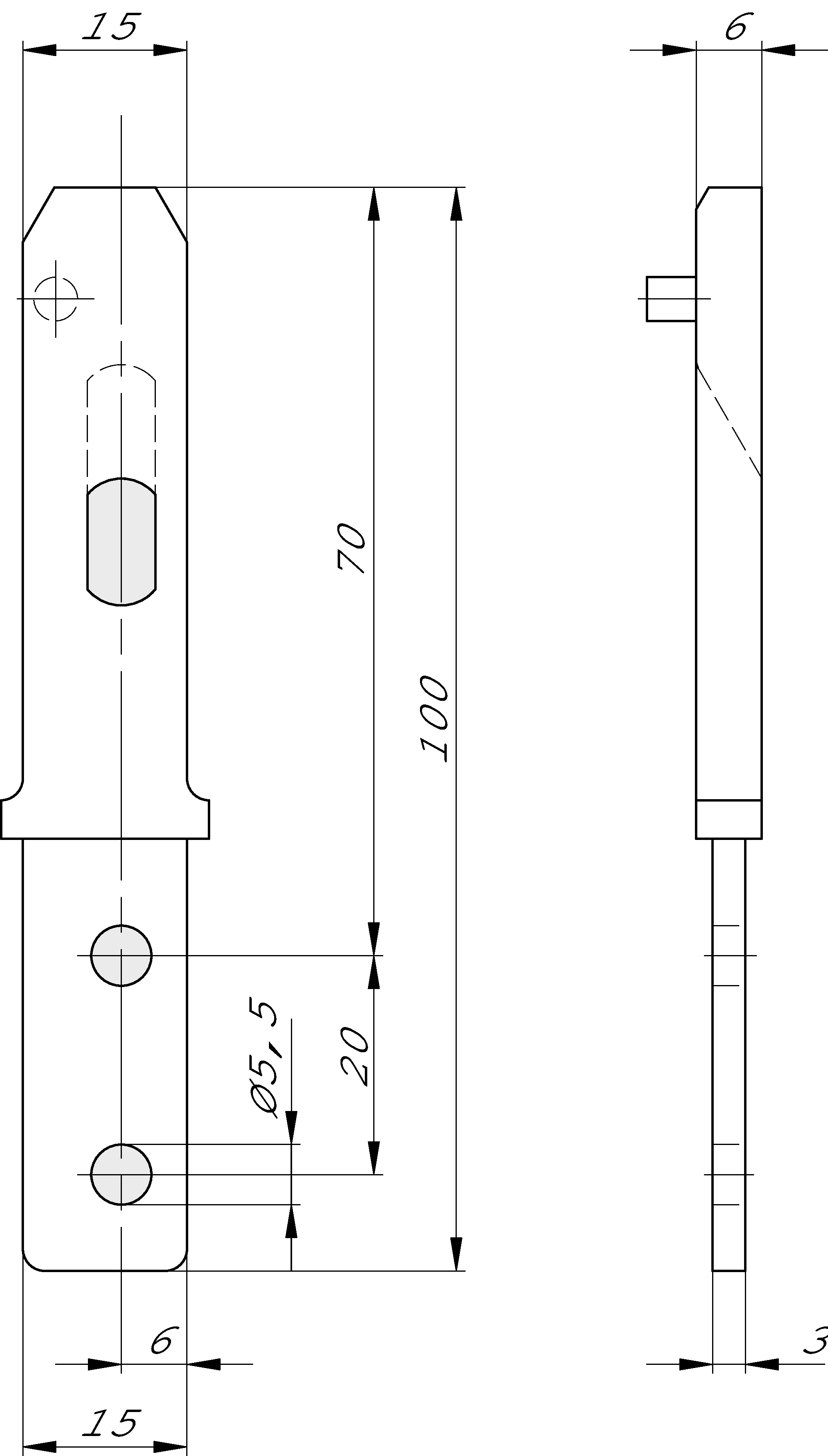

Dimension drawing
Dimension drawing

Dimensional drawings

Dimensional drawings

Technical data

Approvals

DGUV_NZVZ_ET 23004_ET 23005

Mechanical values and environment

Overtravel max. 4 mm
Door radius min. 1000 mm
Material
Actuator Stainless steel
Screw Stainless steel

Miscellaneous

Usability of insertion funnel no

Downloads

Complete package

Download all important documents with a single click.

Content:

  • The operating instructions and any additions to the operating instructions or brief instructions
  • Any data sheets to supplement the operating instructions
  • The declaration of conformity
Download Complete Package (ZIP, 0,6 MB)

Single Documents

Other Documents

Ordering data

Ordernumber 097436
Item designation BETAETIGER-Z-GME
Gross weight 0,057kg
Customs tariff number 85389099990
ECLASS 27-27-26-06 Actuator for safety-related position switch
