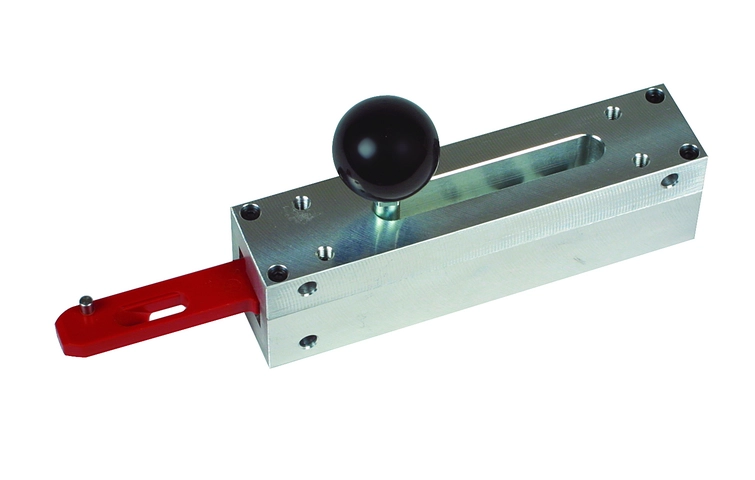

RIEGEL NZ/TZ-S2 (Order no. 028359)

Bolt for safety switch NZ.VZ, NZ.VZ.VS and TZ

  • Bolt for safety switch NZ.VZ, NZ.VZ.VS and TZ
  • Aluminum bolt
  • For doors hinged on the right or left.
  • Spring catch in open position
  • Suitable for a door gap of approx. 15 mm
RIEGEL NZ/TZ-S2 (Order no. 028359)

Description

Scope of delivery

  • Actuator pre-assembled in the bolt tongue


To be ordered separately:


  • Safety switch

Latching in open position

Latching in the open position is intended to prevent persons from trapping themselves in a machine from the inside.The bolt slider is latched in the detent position. Unlock by pulling the detent knob upward.

Door types and door hinges

Suitable for hinged or sliding doors.Suitable for doors hinged on the left or right.Without door stop, door can be opened inwards and outwards.

Integrated lockout bar

With the aid of the integrated lockout bar, the bolt can be secured in the open position, e.g. using padlocks. It is possible to prevent people from being locked in the danger area unintentionally.

Dimension drawing
Dimension drawing

Dimensional drawings

Dimensional drawings
1Ball head bonded in the lever so it cannot rotate. (included loose)
1)Additional information: The handle must be securely bonded in the thread for setup or after setting of the approach direction. Removing the handle with the system in operation is not allowed for reasons related to protection against tampering. Safety switch and actuator (bolt) must be combined correctly for mounting. Do not use safety switch as an end stop for the guard.
2Safety switch NZ.VZ approach direction A
2)Bolt fastening
3Safety switch NZ.VZ approach direction C
4Hole for 3 padlocks
5Screw secured against loosening by means of pressed-in ball

Technical data

Mechanical values and environment

Approach direction A or C
Escape release none
Material
Sliding Aluminum
Handle Plastic
Housing Aluminum

Miscellaneous

Detent mechanism none
