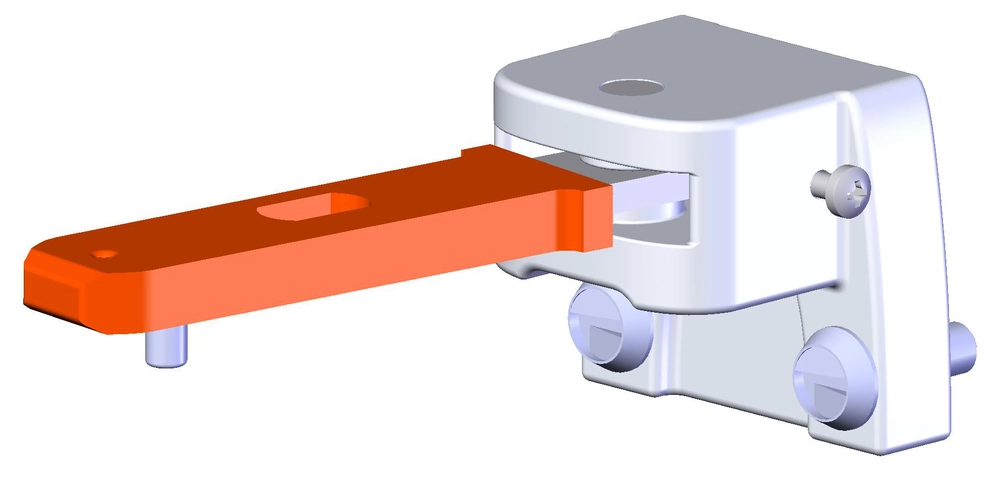

RADIUSBETAETIGER-Z-R/V25 (Order no. 074412)

Hinged actuator, right, for safety switches NZ.VZ, NZ.VZ.VS and TZ

  • Two stainless-steel safety screws per actuator
  • Packaging unit 25 pieces
RADIUSBETAETIGER-Z-R/V25 (Order no. 074412)

Description

Hinged actuators

For door radii less than 1000 mm a hinged actuator should be used. The spring action movement of the actuator prevents damage due to the actuator jamming in the actuator head. Depending on the movement of the guard, the actuator must be selected for left/right or top/bottom.

Screws made of stainless steel

The safety screws included can be inserted with a normal tool, but cannot be removed again.

Dimension drawing
Dimension drawing
Dimension drawing
Dimension drawing

Dimensional drawings

Dimensional drawings

Dimensional drawings

Dimensional drawings

Technical data

Mechanical values and environment

Overtravel max. 4 mm
Door radius min. 400 mm
Material
Screw Stainless steel
Actuator Galvanized steel
Sheath Plastic

Miscellaneous

Usability of insertion funnel no

Ordering data

Ordernumber 074412
Item designation RADIUSBETAETIGER-Z-R/V25
Gross weight 2,57kg
Customs tariff number 85389099990
ECLASS 27-27-26-06 Actuator for safety-related position switch
