C-M26F12-12X1,00PU15,0-MA-077631 (Order no. 077631)

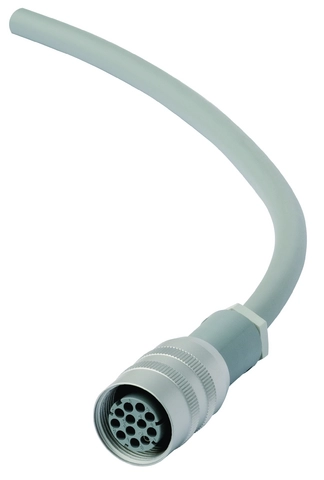

Connecting cable with plug connector SR11, 15 m

  • Female plug SR11, 11-pin + PE
  • Straight plug connector
  • PUR cable
  • Cable length 15 m
  • With flying lead
C-M26F12-12X1,00PU15,0-MA-077631 (Order no. 077631)

Description

Connector assignment

11
22
33
44
55
66
77
88
99
1010
1111

12
Dimension drawing
Dimension drawing
Dimension drawing
Dimension drawing
Dimension drawing
Dimension drawing

Dimensional drawings

Dimensional drawings

Dimensional drawings

Dimensional drawings

Dimensional drawings

Dimensional drawings

Technical data

Electrical connection values

Rated voltage 50 V
Test voltage 1.5 kV

Mechanical values and environment

Conductor cross-section 1 mm²
Number of conductors 12
Dynamic bending radius 12.5 x outer diameter
Static bending radius 4 x outer diameter
Cable type straight
Cable diameter
approx. 10.5 mm
Cable length 15 m
Drag chain suitability no
Cable ambient temperature (dynamic) -5 ... +70 °C
Cable ambient temperature (static) -40 ... +80 °C
Material
Sheath PUR
Connection 2
Conductor end Sheath stripped
Connection type flying lead
Connection 1
Connection type Plug connector M26 x 1.5
Connection type Female plug
Cable outlet straight
Number of pins 12 (11+PE)
Degree of protection IP65 (Only in the screwed tight state)
Plug lock Screw connection
Material
Plug housing PET

Downloads

Complete package

Download all important documents with a single click.

Content:

  • The operating instructions and any additions to the operating instructions or brief instructions
  • Any data sheets to supplement the operating instructions
  • The declaration of conformity
Download Complete Package (ZIP, 1,0 MB)

Single Documents

Other Documents

Ordering data

Ordernumber 077631
Item designation C-M26F12-12X1,00PU15,0-MA-077631
Gross weight 2,937kg
Customs tariff number 85389099990
ECLASS 27-06-03-04 Appliance cord (data cable)
