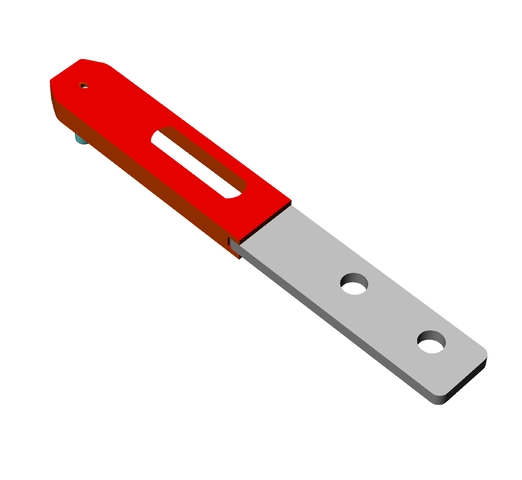

BETAETIGER-Z-GN (Order no. 072251)

Actuator for safety switches NZ.VZ, NZ.VZ.VS and TZ

  • Two stainless-steel safety screws per actuator
BETAETIGER-Z-GN (Order no. 072251)

Description

Straight actuator

The straight actuator is used on sliding doors or hinged doors with door radii greater than 1,000 mm. Safety screws prevent unscrewing of the actuators. The safety screws included can be inserted with a normal tool, but cannot be removed again.

Actuator with overtravel

16 mm

For doors with large play

Dimension drawing
Dimension drawing

Dimensional drawings

Dimensional drawings

Technical data

Approvals

DGUV_NZVZ_ET 23004_ET 23005

Mechanical values and environment

Overtravel max. 16 mm
Door radius min. 1000 mm
Material
Sheath Plastic
Actuator Galvanized steel
Screw Stainless steel

Miscellaneous

Usability of insertion funnel no

Ordering data

Ordernumber 072251
Item designation BETAETIGER-Z-GN
Gross weight 0,039kg
Customs tariff number 85389099990
ECLASS 27-27-26-06 Actuator for safety-related position switch
