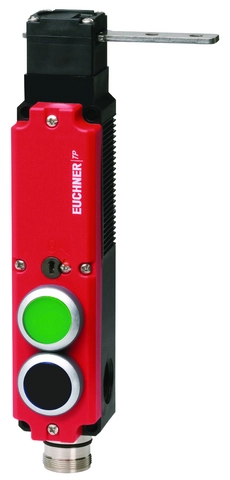

TP3-4141A024RC18EXT1 (Order no. 103339)
Safety switch TP EXTENDED, plug connector(s) M23 (RC18), contacts for door position
- Extended (pushbuttons and signal indicator)
- Plug connector M23 (RC18)
- Contacts for the door position
- Auxiliary release
- Closed-circuit current principle
Description
Approach direction
Horizontal and vertical
Can be adjusted in 90° steps
Increased overtravel for horizontal approach direction
If increased play is required when the door is closed, an actuator with overtravel is available. With this actuator the door can move slightly in the actuating direction when closed. This is important, for example, if safety doors have a rubber end stop. Using an actuator with overtravel, the continuous pressure from the compressed rubber can be reduced. In this way the load is reduced on the switch head and the door mechanism.
Version Extended
The Extended version includes additional control and display elements.
Guard locking principle
Power to unlock: On a guard with guard locking based on the closed-circuit current principle, the guard is locked by spring force until the guard locking solenoid is supplied with power. Unlocking is by solenoid force. The term mechanical guard locking is also used.
Switching element
4141 | Slow-action switching contact |
Contacts for guard locking: 2 positively driven contacts | |
Contacts for door monitoring: 2 positively driven contacts |
Auxiliary release
The auxiliary release on the front makes it possible to access the machine if there is a malfunction, e.g. a power failure. Unlocking is performed using a tool or a key. The auxiliary release must be protected against misuse (sealing, lacquer).
Accessories required
Actuator is not included.
Functional drawings
Dimensional drawings
| 1 | Auxiliary release |
| 2 | Locking screw |
| 3 | Signal indicator, green |
| 4 | Black push button |
Connection examples
| square_grey_dark.eps | Door monitoring |
| square_grey_light.eps | Solenoid monitoring |
Technical data
Approvals
Electrical connection values
| Fuse | max. 4 A gG |
| Power consumption | 8 W |
| Connection cross section | 0.34 ... 1.5 mm² |
| Rated insulation voltage Ui | 50 V |
| Rated impulse voltage Uimp | 1.5 kV |
| Utilization category | |
| DC-13 | 4 A 24 V |
| AC-15 | 4 A 50 V |
| Solenoid operating voltage | |
| AC/DC | 24 V -15% ... +10% |
| Solenoid duty cycle | 100 % |
| Switching voltage | |
| min. at 10 mA | 12 V |
| Switching current | |
| min. at 24 V | 1 mA |
| thermal rated current Ith | 4 A |
Mechanical values and environment
| Approach speed | max. 20 m/min |
| Connection type | |
| 1 x | Built-in connector RC18 (18-pin) |
| Number of door position positively driven contacts | 2 |
| Number of guard lock monitoring positively driven contacts | 2 |
| Extraction force | 20 N |
| Actuation frequency | max. 1200 1/h |
| Actuating force | 10 N |
| Installation orientation | any |
| Mechanical life | 1 x 10⁶ |
| Retention force | 10 N |
| Switching principle | Slow-action switching contact |
| Degree of protection | IP54 |
| Ambient temperature | -20 ... 55 °C |
| Material | |
| Housing | Reinforced thermoplastic |
| Contact | Silver alloy, gold flashed |
| Locking force Fmax | 1300 N |
| Locking force FZh | 1000 N |
| Guard locking principle | Closed-circuit current principle |
Characteristic values according to EN ISO 13849-1 and EN IEC 62061
| B10D | Mission time | |
|---|---|---|
| Monitoring of the guard position | 3x106 | 20 y |
| Important! Values valid at DC-13 100 mA/24V | ||
| Monitoring of guard locking | 3x106 | 20 y |
| Important! Values valid at DC-13 100 mA/24V | ||
| PL | Maximum SIL | Category | Mission time | |
|---|---|---|---|---|
| Control of guard locking | Depending on external control of guard locking | 20 y | ||
Miscellaneous
| Additional feature | |
| 1 x pushbutton | black (24 V (breaking capacity max. 250 mW)) |
| 1 x signal indicator | green (24 V DC) |
In combination with actuator ACTUATOR-P-GNT
| Horizontal overtravel | 7 mm |
In combination with actuator ACTUATOR-P-GT
| Horizontal overtravel | 2 mm |
| Vertical overtravel | 1.5 mm |
Accessories
Downloads
Complete package
Download all important documents with a single click.
Content:
- The operating instructions and any additions to the operating instructions or brief instructions
- Any data sheets to supplement the operating instructions
- The declaration of conformity
Single Documents
Déclaration UE de conformité
Declaración de conformidad UE
EU-Konformitätserklärung
Dichiarazione UE di conformità
Déclaration UE de conformité
Declaración de conformidad UE
EU-Konformitätserklärung
Dichiarazione UE di conformità
Other Documents
Ordering data
| Ordernumber | 103339 |
| Item designation | TP3-4141A024RC18EXT1 |
| Gross weight | 0,552kg |
| Customs tariff number | 85371098 |
| ECLASS | 27-27-26-03 Safety switch with guard control |
