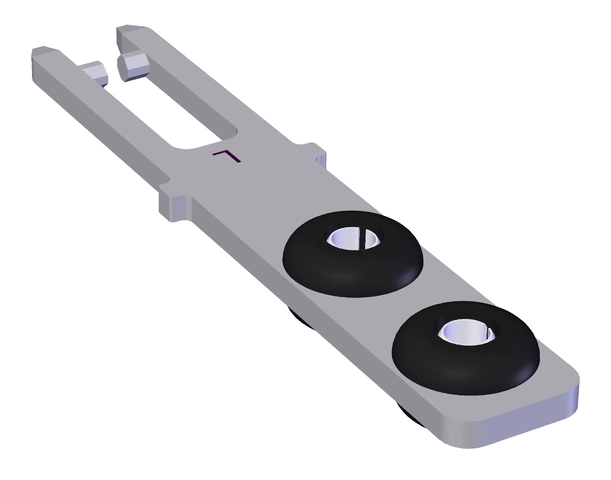

BETAETIGER-P-GNT (Order no. 074576)

Actuator for safety switch NP/GP/TP, increased overtravel

  • Actuator made of stainless steel
  • Two stainless-steel safety screws per actuator
  • Actuator with rubber bush
BETAETIGER-P-GNT (Order no. 074576)

Description

Straight actuator

The straight actuator is used on sliding doors or hinged doors with door radii greater than 1,000 mm. Safety screws prevent unscrewing of the actuators.

Actuator with rubber bush

For flexible mounting of the actuator.

Screws made of stainless steel

The safety screws included can be inserted with a normal tool, but cannot be removed again.

Dimension drawing
Dimension drawing

Dimensional drawings

Dimensional drawings

Technical data

Mechanical values and environment

Overtravel max. 7 mm
Door radius min. 1000 mm
Material
Actuator Stainless steel
Rubber bush NBR
Screw Stainless steel

Miscellaneous

Usability of insertion funnel yes

Ordering data

Ordernumber 074576
Item designation BETAETIGER-P-GNT
Gross weight 0,031kg
Customs tariff number 85389099990
ECLASS 27-27-26-06 Actuator for safety-related position switch
