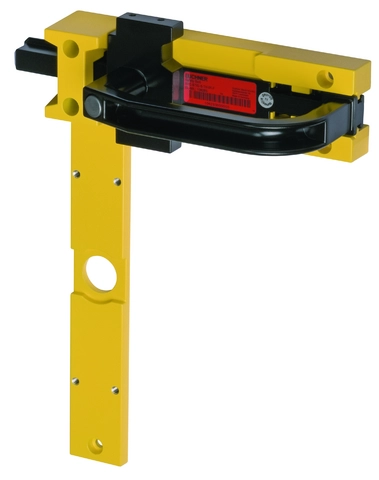

BTC-T/GP-S-TH-00-X (Order no. 106301)

Bolt BTC-T/GP... without escape release for safety switches GP and TP

  • Aluminum bolt
  • For doors hinged on the left or right
  • Can be locked in open position with padlocks
  • Actuator included
BTC-T/GP-S-TH-00-X (Order no. 106301)



  • Robust construction
  • Easily mounted to standard aluminum profiles and machine covers by screw connection
  • Distinctive yellow color for easy recognition
  • No additional door handle necessary


  • The bolts are suitable for the series TP...A and GP
  • Order safety switch separately
Dimension drawing
Dimension drawing

Dimensional drawings

Dimensional drawings
1Notice: Due to the symmetrical design, the bolt can be used for doors hinged on the right and left.
3Safety guard frame (40x40)
4Door hinged on the right

Technical data

Mechanical values and environment

Approach direction A or C
Number of safety switches that can be mounted 1
Escape release none
Base plate Aluminum
Switch bracket Aluminum
Guide strips Aluminum
Handle Aluminum


Detent mechanism none


Complete package

Download all important documents with a single click.


  • The operating instructions and any additions to the operating instructions or brief instructions
  • Any data sheets to supplement the operating instructions
  • The declaration of conformity
Download Complete Package (ZIP, 0,2 MB)

Single Documents

Other Documents

Ordering data

Ordernumber 106301
Item designation BTC-T/GP-S-TH-00-X
Gross weight 1,25kg
Customs tariff number 83014090000
