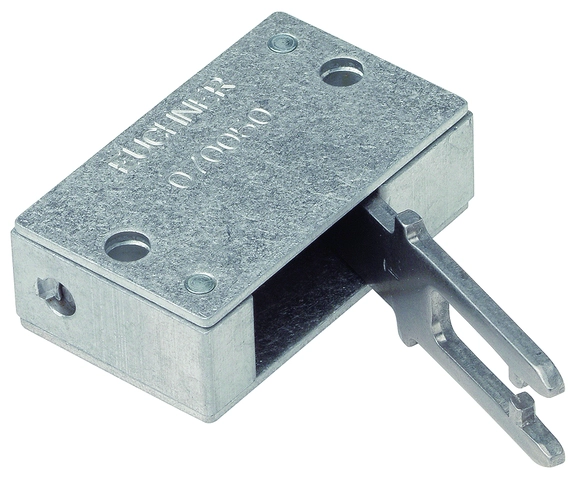

RADIUSBETAETIGER-P-OU (Order no. 070050)

Hinged actuator, top/bottom, for safety switch NP/GP/TP

  • Actuator made of stainless steel
  • Two stainless-steel safety screws per actuator
  • For top-hinged and bottom-hinged doors
RADIUSBETAETIGER-P-OU (Order no. 070050)

Description

Hinged actuators

For door radii less than 1000 mm a hinged actuator should be used. The spring action movement of the actuator prevents damage due to the actuator jamming in the actuating head. Depending on the movement of the guard, the actuator must be selected for left/right or top/bottom.

Dimension drawing
Dimension drawing
Dimension drawing
Dimension drawing

Dimensional drawings

Dimensional drawings

Dimensional drawings

Dimensional drawings

Technical data

Mechanical values and environment

Overtravel max. 2 mm
Door radius min. 90 mm
Material
Screw Stainless steel
Actuator Stainless steel

Miscellaneous

Usability of insertion funnel no

Ordering data

Ordernumber 070050
Item designation RADIUSBETAETIGER-P-OU
Gross weight 0,063kg
Customs tariff number 85389099990
ECLASS 27-27-26-06 Actuator for safety-related position switch
