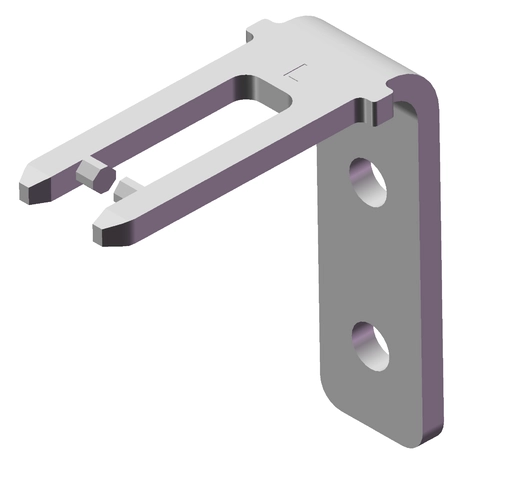

BETAETIGER-P-WN (Order no. 074571)

Bent actuator for safety switch NP/GP/TP, increased overtravel

  • Actuator made of stainless steel
  • Two stainless-steel safety screws per actuator
BETAETIGER-P-WN (Order no. 074571)

Description

Screws made of stainless steel

The safety screws included can be inserted with a normal tool, but cannot be removed again.

Dimension drawing
Dimension drawing

Dimensional drawings

Dimensional drawings

Technical data

Mechanical values and environment

Overtravel max. 7 mm
Door radius min. 1000 mm
Material
Screw Stainless steel
Actuator Stainless steel

Miscellaneous

Usability of insertion funnel yes

Ordering data

Ordernumber 074571
Item designation BETAETIGER-P-WN
Gross weight 0,029kg
Customs tariff number 85389099990
ECLASS 27-27-26-06 Actuator for safety-related position switch
