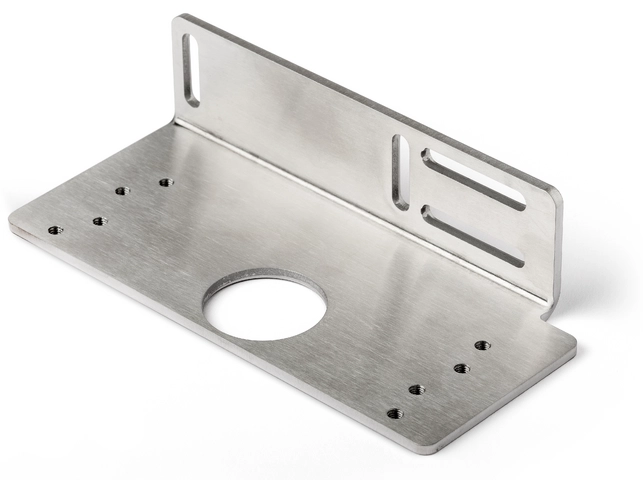

Mounting plates EMP-SB for safety switches CTP, TP...A, STA, STP and TX
- For vertical and horizontal mounting of safety switches TP...A, STA, STP and TX
Description
The mounting plates are used for fastening safety switches TP...A, STA, STP and TX on guards. The safety switches can be attached vertically or horizontally.
Dimension drawing
Technical data
Mechanical values and environment
| Material | Galvanized steel |
| Weight | |
| Net | 0,6 kg |
Accessories
