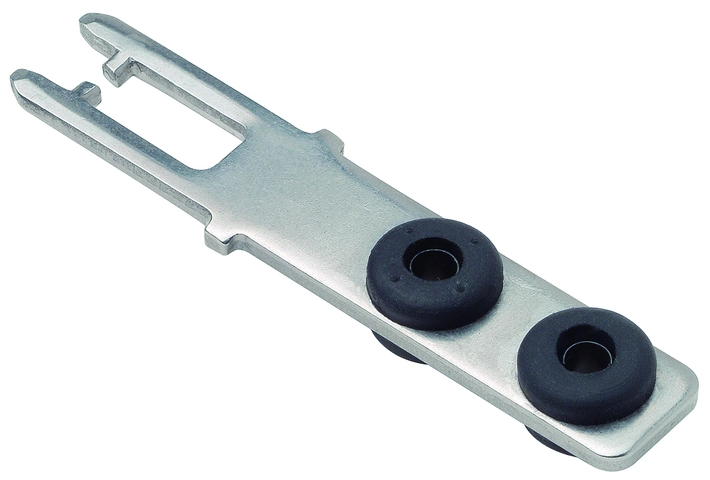

BETAETIGER-P-GT (Order no. 070046)

Actuators for safety switches NP/GP/TP

  • Actuator made of stainless steel
  • Two stainless-steel safety screws per actuator
  • Actuator with rubber bush
BETAETIGER-P-GT (Order no. 070046)

Description

Straight actuator

The straight actuator is used on sliding doors or hinged doors with door radii greater than 1,000 mm. Safety screws prevent unscrewing of the actuators.

Actuator with rubber bush

For flexible mounting of the actuator.

Screws made of stainless steel

The safety screws included can be inserted with a normal tool, but cannot be removed again.

Dimension drawing
Dimension drawing

Dimensional drawings

Dimensional drawings

Technical data

Mechanical values and environment

Overtravel max. 2 mm
Door radius min. 1000 mm
Material
Rubber bush NBR
Actuator Stainless steel
Screw Stainless steel

Miscellaneous

Usability of insertion funnel no

Ordering data

Ordernumber 070046
Item designation BETAETIGER-P-GT
Gross weight 0,03kg
Customs tariff number 85389099990
ECLASS 27-27-26-06 Actuator for safety-related position switch
