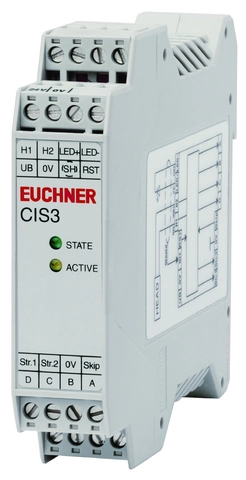

Read-only interface adapter CIA3PL1G08
- Parallel interface
- In combination with read head CIT3ASX1N12ST
- Rail mounting
Description
Attention:
- The connecting cable to the control system is allowed to be max. 15 m long.
- On the use of a screened cable the connecting cable to the read head is allowed to be max. 15 m long.
- It is only ever possible to connect 1 read head per interface adapter.
Dimensional drawings
| 1 | Suitable for 35 mm mounting rail according to DIN 46277 |

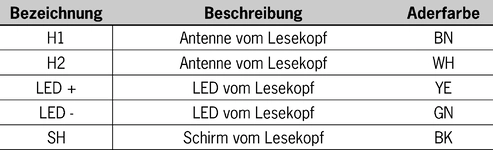

Connection examples
Connection examples
Technical data
Operating and display elements
| LED display | |
| Green | STATE LED operational |
| Yellow | ACTIVE LED data carrier active |
Electrical connection values
| Connection cross section | 0.14 ... 2.5 mm² |
| Output type | Push-Pull |
| Operating voltage DC | 20 ... 24 ... 28 V DC (All electrical connections must be isolated from the mains either by safety transformers according to IEC/EN 61558-2-6 with limitation of the output voltage in the event of a fault or by equivalent isolation measures).) |
| Input voltage | |
| 0 ... 2 V DC Lowsignal (Reset,Skip) | |
| 15 ... Ub V DC Highsignal (Reset,Skip) | |
| Switching voltage | |
| 0 ... 2 V (Lowsignal (A,B,C,D,Strobe)) | |
| Ub-3 ... Ub V (Highsignal (A,B,C,D,Strobe)) | |
| Switching current | |
| per output | -30 ... +30 mA |
| Current consumption | |
| without load | 65 ... 100 mA |
| Resistance | 4.5 kΩ for inputs (Reset,Skip) |
Mechanical values and environment
| Connection type | plug-in screw terminal |
| Number of read heads | max. 1 |
| Mounting type | Mounting rail 35 mm according to DIN EN 60715 TH35 |
| Ambient temperature | 0 ... +55 °C |
| Material | |
| Housing | PA6.6, gray |
Interface
| Date interface | 4 bit binary coded Strobe |
In combination with CIT3ASX1N12ST read/write head and data carriers CIS3AP10D05KH01K, CIS3AP10D05KH01K-P
| Read distance | |
| with center offset m=0 | |
| Read distance | |
| with center offset m=0 | 0 ... 3 ... 6 mm (These values apply to non-flush installation of the read head and flush installation of the data carrier in iron.) |
| with center offset m=0 | 0 ... 3 ... 5 mm (These values apply to non-flush installation of the read head and flush installation of the data carrier in aluminum.) |
| with center offset m=0 | 0 ... 3 ... 6.5 mm (These values apply to non-flush installation of the read head and flush installation of the data carriers in a non-metallic environment.) |
| Center offset | |
| Read distance s = 3 mm | -2,5 ... 2,5 mm (These values apply to non-flush installation of the read head and flush installation of the data carriers in a non-metallic environment.) |
