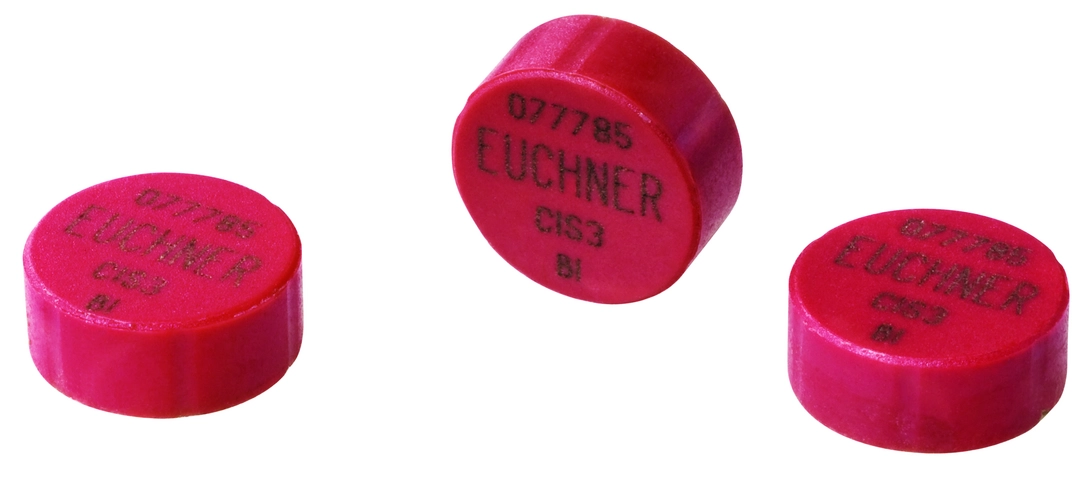

CIS3AP10D05KH01K-P (Order no. 092320)

Data carrier CIS3A-Mini

  • Cylindrical design, Ø 10 mm
  • Programmed
CIS3AP10D05KH01K-P (Order no. 092320)


Mounting instructions

Fasten with two-component epoxy resin adhesive, for example.


The data carrier can be written (programmed) for read-only operation with a maximum of 8 hexadecimal digits (value from 0hexto Fhex) on customer request. Standard filler digit after the customer-specific defined digits is Ehex. The housing is permanently laser marked with the digits programmed (not including filler digits) in hexadecimal notation.

Dimension drawing
Dimension drawing

Dimensional drawings

Dimensional drawings

Technical data


EAC_RU C-DE.MO05.B.00971/20

Electrical connection values

Number of read cycles not limited
Number of write cycles max. 50000
Data retention time max. 10 y at +22 °C
Length of serial number 8 B (Serial number read only)
Power supply Inductive via read head
Storage capacity 116 B read/write

Mechanical values and environment

Mounting type bonding, flush in metal
Degree of protection IP67
Ambient temperature -25 ... +70 °C
Housing PPS - plastic

Ordering data

Ordernumber 092320
Item designation CIS3AP10D05KH01K-P
Gross weight 0,002kg
Customs tariff number 85389099990
ECLASS 27-28-04-02 Identification, RFID Transponder
