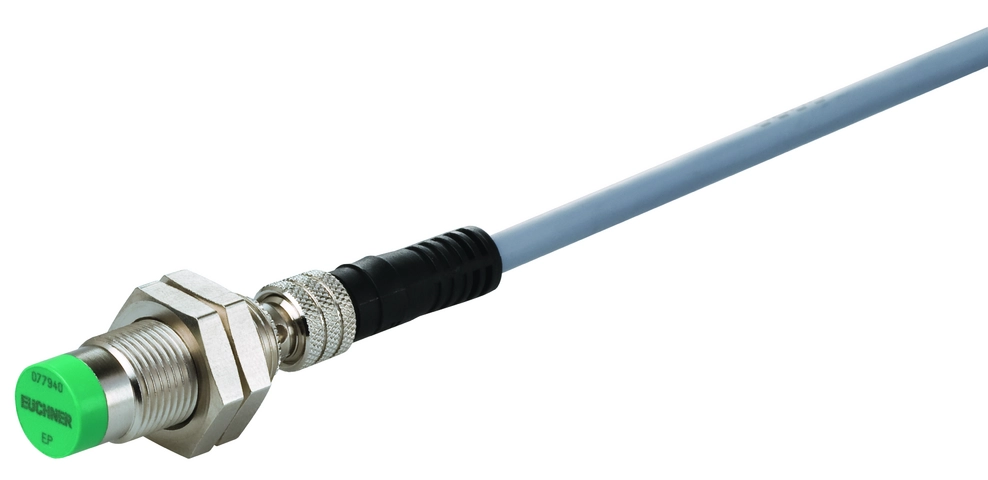

CIT3ASX1N12ST (Order no. 077940)

Read-write head CIT3A Mini

  • Use with interface adapter CIA3...
  • Cylindrical design M12
  • M8 plug connector
  • Axial connection
CIT3ASX1N12ST (Order no. 077940)



The read head CIT3ASX1N12ST has

  • Read-only functionality in combination with the read-only interface adapter with parallel interface
  • Read/write functionality in combination with the read/write interface adapter with serial interface


On the use of a screened cable the connecting cable to the interface adapter is allowed to be max. 15 m long.

Dimension drawing
Dimension drawing
Wiring diagram
Wiring diagram

Dimensional drawings

Dimensional drawings
1)Clear zone
2To insert
3Active face
4Terminal assignment
mCenter offset
sRead distance

Connection examples

Connection examples

Technical data

Operating and display elements

LED display Yellow: data carrier active

Mechanical values and environment

Connection type M8 plug connector, 4-pin, axial connection
Tightening torque 5 ... 9 Nm M12 thread
Mounting type surface
Degree of protection IP65
Ambient temperature 0 ... +50 °C
Housing sleeve CuZn, nickel plated

Ordering data

Ordernumber 077940
Item designation CIT3ASX1N12ST
Gross weight 0,037kg
Customs tariff number 85389099990
ECLASS 27-28-04-01 Identification, RFID Reader
