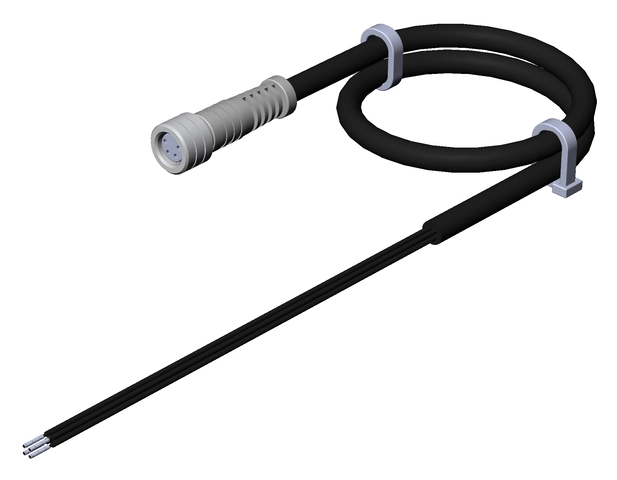

C-M08F04-04X025PV10,0-ES-084643 (Order no. 084643)

Connecting cable with plug connector M8, 4-pin, 10 m

  • M8 female plug, 4-pin
  • Straight plug connector
  • PVC cable
  • Cable length 10 m
  • With flying lead
  • Knurled nut electrically connected to cable shield
C-M08F04-04X025PV10,0-ES-084643 (Order no. 084643)


Dimension drawing
Dimension drawing
Wiring diagram
Wiring diagram

Dimensional drawings

Dimensional drawings

Dimensional drawings

Dimensional drawings

Technical data



Electrical connection values

Rated surge voltage according to IEC 60664-1 800 V
Test voltage 0.65 kV
Cable shielding yes (Cu braid, coverage approx. 85%, connected to union nut)

Mechanical values and environment

Conductor identification Color code
Conductor cross-section 0.25 mm²
Number of conductors 4
Dynamic bending radius 10 x cable diameter
Static bending radius 5 x cable diameter
Cable type straight
Cable diameter
approx. 5 mm
Cable length 10 m
Drag chain suitability no
Cable ambient temperature (dynamic) -5 ... +70 °C
Cable ambient temperature (static) -25 ... +80 °C
Sheath PVC
Connection 2
Conductor end Cable end sleeve with insulating collar
Connection type flying lead
Connection 1
Connection type Plug connector M8
Connection type Female plug
Tightening torque 0.4 Nm
Cable outlet straight
Number of pins 4
Degree of protection IP65/IP67 (in the inserted state)
Plug lock Screw connection
Plug housing TPU


Complete package

Download all important documents with a single click.


  • The operating instructions and any additions to the operating instructions or brief instructions
  • Any data sheets to supplement the operating instructions
  • The declaration of conformity
Download Complete Package (ZIP, 1,1 MB)

Single Documents

Other Documents

Ordering data

Ordernumber 084643
Item designation C-M08F04-04X025PV10,0-ES-084643
Gross weight 0,378kg
Customs tariff number 85389099990
ECLASS 27-06-03-04 Appliance cord (data cable)
