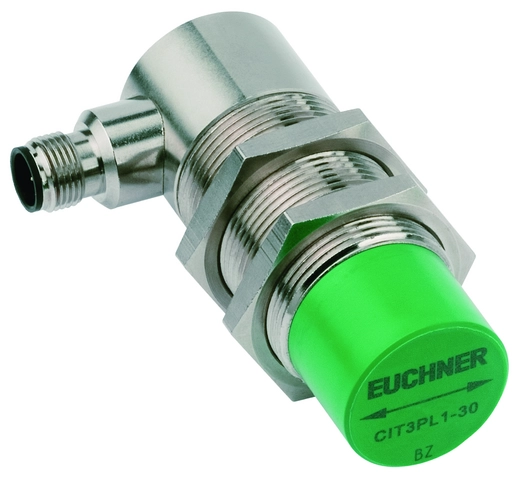

CIT3PL1N30-STR (Order no. 071950)

Read-only head CIT3 with parallel interface, plugged in radially

  • Parallel interface
  • Cylindrical design M30
  • M12 plug connector
  • Radial connection
CIT3PL1N30-STR (Order no. 071950)


Dimension drawing
Dimension drawing
Terminal assignment
Terminal assignment

Dimensional drawings

Dimensional drawings
1)Clear zone
2Active face
3Crossing direction
4Adjustment range
mCenter offset
sRead distance

Connection examples

Connection examples

Technical data


EAC_RU C-DE.MO05.B.00971/20

Operating and display elements

LED display Yellow: data carrier active

Electrical connection values

Output type Push-Pull
Output voltage
min. UB-3 V DC for HIGH - level
max. 2 V DC for LOW - level
Operating voltage DC 20 ... 28 V DC (All electrical connections must be isolated from the mains either by safety transformers according to IEC/EN 61558-2-6 with limitation of the output voltage in the event of a fault or by equivalent isolation measures.)
Input voltage
max. 2 V DC SKIP input LOW - level V DC
min. 15 V DC SKIP input HIGH - level
Switching current
per output -30 ... +30 mA
Current consumption
without load 65 ... 100 mA
Resistance 4.5 kΩ Input resistance

Mechanical values and environment

Connection type M12 plug, 8-pin, radial connection (The shield on the connecting cable is connected to the read head's housing via the knurled nut on the M12 plug connector.)
Mounting type surface
Degree of protection IP67
Ambient temperature 0 ... +50 °C
Housing CuZn, nickel plated


Date interface 4 bit binary coded Strobe

In combination with data carriers CIS3P16D08KH16YSNOU, CIS3P16D08KH16YSNOP

Read distance 0 ... 5 ... 14 mm
Center offset
at 25 °C -6 ... 6 mm (Center offset mL in y-direction (at sL = 5 mm))
at 25 °C -18 ... 18 mm (Center offset mL in x-direction (at sL = 5 mm)

In combination with data carriers CIS3P35X16SH16YHNOU, CIS3P35X16SH16YHNOP, CIS3P35X16SH16YVNOU, CIS3P35X16SH16YVNOP

Read distance
at 21 °C 0 ... 7 ... 18 mm
Center offset
at 21 °C -23 ... 23 mm (Center offset mL in x-direction (at sL = 7 mm))
at 21 °C -8 ... 8 mm (Center offset mL in y-direction (at sL = 7 mm))



Complete package

Download all important documents with a single click.


  • The operating instructions and any additions to the operating instructions or brief instructions
  • Any data sheets to supplement the operating instructions
  • The declaration of conformity
Download Complete Package (ZIP, 1,0 MB)

Single Documents

Other Documents

Ordering data

Ordernumber 071950
Item designation CIT3PL1N30-STR
Gross weight 0,218kg
Customs tariff number 85389099990
ECLASS 27-28-04-01 Identification, RFID Reader
