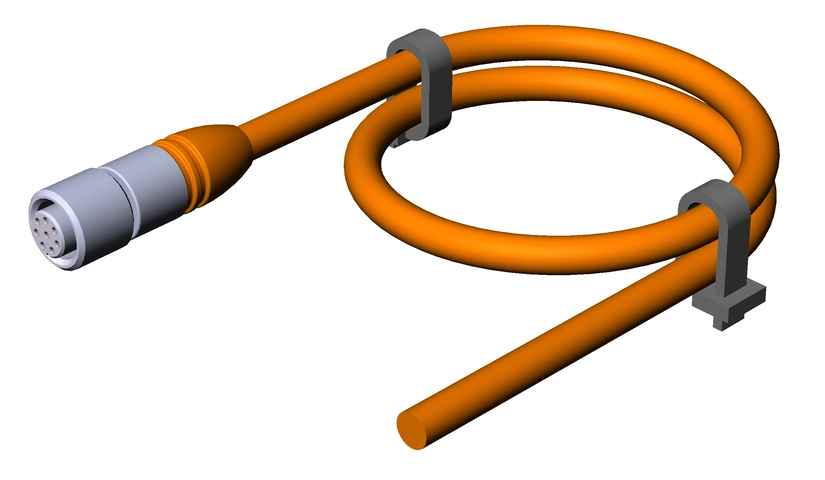

C-M12F08-08X025PV15,0-GA-077753 (Order no. 077753)

Connecting cable with plug connector M12, 8-pin, 15 m

  • M12 female plug, 8-pin
  • Straight plug connector
  • PVC cable, screened
  • Cable length 15 m
  • With flying lead
C-M12F08-08X025PV15,0-GA-077753 (Order no. 077753)

Description

Dimension drawing
Dimension drawing

Dimensional drawings

Dimensional drawings
1Female plug M12, 8-pin
2Terminal assignment as seen from the connection side

Technical data

Approvals

c_UL_us_E155795_3/2

Electrical connection values

Rated voltage 30 V
Cable shielding connected to union nut (Cu braid, coverage approx. 85%)

Mechanical values and environment

Conductor identification Color code
Conductor cross-section 0.25 mm²
Number of conductors 8
Dynamic bending radius 15 x cable diameter
Static bending radius 8 x cable diameter
Cable type straight
Cable diameter
approx. 6.6 mm
Cable length 15 m
Drag chain suitability no
Cable ambient temperature (dynamic) +5 ... +70 °C
Cable ambient temperature (static) -25 ... +70 °C
Material
Sheath PVC
Connection 2
Conductor end trimmed smooth
Connection type flying lead
Connection 1
Connection type Plug connector M12x1
Connection type Female plug
Tightening torque 0.5 Nm
Cable outlet straight
Number of pins 8
Degree of protection IP67 (in the screwed tight state)
Plug lock Screw connection
Material
Plug housing Plastic

Downloads

Complete package

Download all important documents with a single click.

Content:

  • The operating instructions and any additions to the operating instructions or brief instructions
  • Any data sheets to supplement the operating instructions
  • The declaration of conformity
Download Complete Package (ZIP, 1,0 MB)

Single Documents

Other Documents

Ordering data

Ordernumber 077753
Item designation C-M12F08-08X025PV15,0-GA-077753
Gross weight 1,066kg
European Article Number (EAN) 4047048006492
Customs tariff number 85444290900
ECLASS 27-06-03-04 Appliance cord (data cable)
