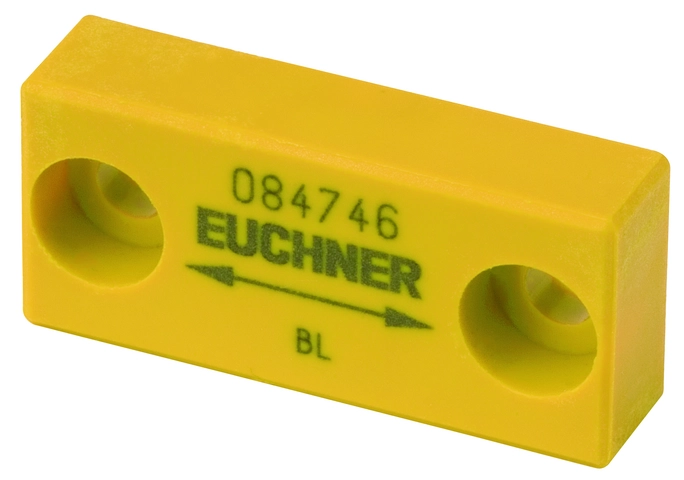

CIS3P35X16SH16YHNOU (Order no. 084746)

Data carrier CIS3 horizontal

  • Cube-shaped design 35 x 16 mm
  • Unprogrammed
CIS3P35X16SH16YHNOU (Order no. 084746)


Assembly Instructions

On mounting the read head and data carrier, it is to be ensured the crossing direction as per the direction of the arrow on the active face of the read head or read/write head is observed.

Dimension drawing
Dimension drawing

Dimensional drawings

Dimensional drawings

Technical data


EAC_RU C-DE.MO05.B.00971/20

Electrical connection values

Number of read cycles not limited
Number of write cycles max. 100000
Data retention time max. 10 y at +50 °C
Power supply Inductive via read head
Storage capacity 16 B read/write (storage capacity 128 bits or 32 digits) (The memory of the read/write data carrier is organized as follows: writing possible only in 2-byte blocks, reading possible byte by byte)

Mechanical values and environment

Mounting type screws, surface mounting
Degree of protection IP67
Ambient temperature -40 ... +85 °C
Housing PPS plastic
Method of operation Operating frequency 125kHz


Complete package

Download all important documents with a single click.


  • The operating instructions and any additions to the operating instructions or brief instructions
  • Any data sheets to supplement the operating instructions
  • The declaration of conformity
Download Complete Package (ZIP, 1,6 MB)

Single Documents

Other Documents

Ordering data

Ordernumber 084746
Item designation CIS3P35X16SH16YHNOU
Gross weight 0,005kg
Customs tariff number 85389099990
ECLASS 27-28-04-02 Identification, RFID Transponder
