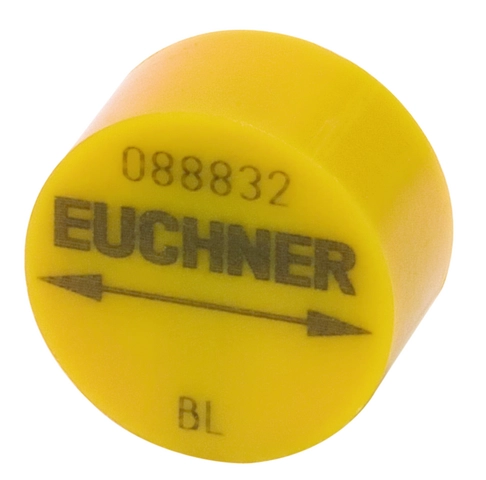

CIS3P16D08KH16YSNOU (Order no. 088832)

Data carrier CIS3 round

  • Cylindrical design, Ø 16 mm
  • Unprogrammed
CIS3P16D08KH16YSNOU (Order no. 088832)

Description

Assembly Instructions

  • On mounting the read head and data carrier, it is to be ensured the crossing direction as per the direction of the arrow on the active face of the read head or read/write head is observed.
  • Fasten with two-component epoxy resin adhesive, for example.
Dimension drawing
Dimension drawing

Dimensional drawings

Dimensional drawings

Technical data

Approvals

EAC_RU C-DE.MO05.B.00971/20

Electrical connection values

Number of read cycles not limited
Number of write cycles max. 100000
Data retention time max. 10 y at +50 °C
Power supply Inductive via read head
Storage capacity 16 B read/write (storage capacity 128 bits or 32 digits) (The memory of the read/write data carrier is organized as follows: writing possible only in 2-byte blocks, reading possible byte by byte)

Mechanical values and environment

Mounting type bonding, flush in metal
Degree of protection IP67
Ambient temperature 0 ... +50 °C
Material
Housing PPS plastic
Method of operation Operating frequency 125kHz

Ordering data

Ordernumber 088832
Item designation CIS3P16D08KH16YSNOU
Gross weight 0,003kg
Customs tariff number 85389099990
ECLASS 27-28-04-02 Identification, RFID Transponder
