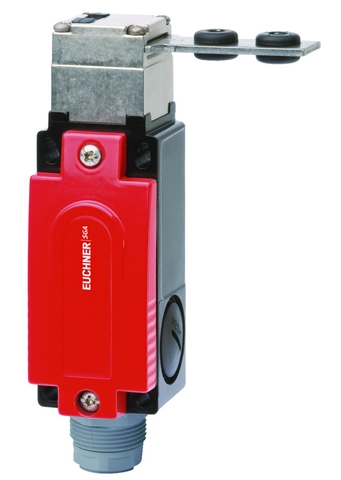

SGA2A-2121ASR11 (Order no. 116396)

Safety switch SGA, plug connector SR11

  • Plug connector(s) SR11, 11-pole PE
  • 4 positively driven, positively driven contacts
  • Switching disk made of metal
SGA2A-2121ASR11 (Order no. 116396)


Approach direction

Horizontal and vertical

Can be adjusted in 90° steps

Switching element


Slow-action switching contact 4 positively driven, positively driven contact

Required accessories

Actuator is not included in the scope of delivery.

Dimension drawing
Dimension drawing
Wiring diagram 2121
Wiring diagram 2121
Electromechanical safety switches in use

Dimensional drawings

Dimensional drawings
1Actuating direction can be changed

Connection examples

Connection examples

Technical data


EAC_RU C-DE.MO05.B.00971/20CCC_2020980305000503_CQC2009010305380680DGUV_SGA_ET 22058_ET 22059c_UL_us_E155795_2/4

Electrical connection values

Rated insulation voltage Ui 50 V
Rated impulse withstand voltage Uimp 1.5 kV
Utilization category
DC-13 4 A 24 V (>70 °C =>2 A)
AC-15 4 A 50 V (>70 °C =>2 A)
Short circuit protection according to IEC 60269-1 4A gG (>70 °C =>2A gG)
Switching voltage
min. at 10 mA 12 V
Switching current
min. at 24 V 1 mA
thermal rated current Ith 4 A (>70 °C =>2 A)

Mechanical values and environment

Approach speed max. 20 m/min
Approach direction A
Connection type
1 x Plug connector SR11 (11-pin + PE)
Number of door position positively driven contacts 4
Extraction force 25 N
Actuation frequency max. 6700 1/h
Actuating force 25 N
Installation orientation any
Insertion depth 28.5 mm
Mechanical life 2 x 10⁶
Retention force 10 N
Switching principle Slow-action switching contact
Degree of protection IP65
Ambient temperature -20 ... +80 °C
Housing Die-cast alloy, cathodically dipped
Contact Silver alloy, gold flashed

Characteristic values according to EN ISO 13849-1 and EN IEC 62061

B10DMission time
Monitoring of the guard position3x10620 y
Important! Values valid at DC-13 100 mA/24V

In combination with actuator ACTUATOR-S-GT-LN

Overtravel 5 mm



Complete package

Download all important documents with a single click.


  • The operating instructions and any additions to the operating instructions or brief instructions
  • Any data sheets to supplement the operating instructions
  • The declaration of conformity
Download Complete Package (ZIP, 5,7 MB)

Single Documents

Other Documents

Ordering data

Ordernumber 116396
Item designation SGA2A-2121ASR11
Gross weight 0,386kg
Customs tariff number 85365019000
ECLASS 27-27-26-02 Safety switch with separate actuator (Type 2)
