A-S-ROU-SS-176045 (Order no. 176045)

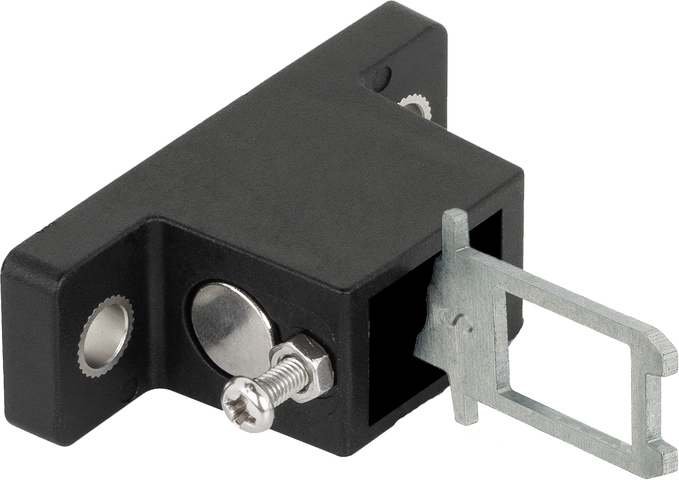

Hinged actuator S, top/bottom, for safety switch SGA/SGP/STA/STP/STM

  • Actuator made of stainless steel
  • Two safety screws included
  • For top-hinged and bottom-hinged doors
A-S-ROU-SS-176045 (Order no. 176045)

Description

Notice

S-...-SN actuators must not be used in conjunction with insertion funnels. S-...-LN actuators must be used for insertion funnels.

Hinged actuators

For door radii smaller than 300 mm, a hinged actuator should be used. The spring-loaded movement of the actuator prevents damage caused by the actuator jamming in the actuating head. The actuator must be selected for left/right or up/down operation depending on the movement of the guard.

Technical data

Approvals

DGUV_SGA_ET 22058_ET 22059

Mechanical values and environment

Storage temperature -25 ... 70 °C
Overtravel max. 5 mm
Door radius min. 200 mm
Material
Actuator Stainless steel
Screw Stainless steel
Housing Plastic

Miscellaneous

Usability of insertion funnel No

Downloads

Ordering data

Ordernumber 176045
Item designation A-S-ROU-SS-176045
Gross weight 36,kg
Customs tariff number 85389099990
ECLASS 11.0 27-27-26-06 Actuator for safety-related position switch
