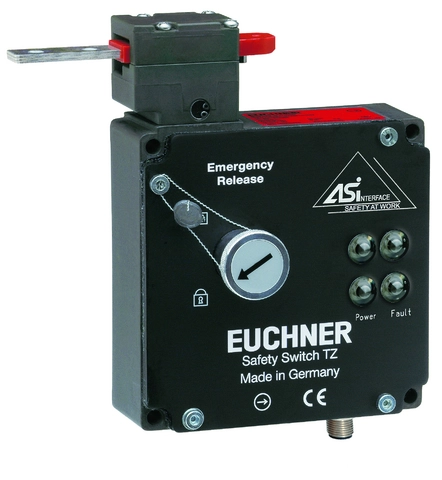

TZ1LE024SEM4AS1-C1937 (Order no. 090278)

Safety switch TZ ASi, plug connector M12, emergency release (closed-circuit current principle)

  • Emergency release on the front with rotary knob
  • Actuating head fitted left
TZ1LE024SEM4AS1-C1937 (Order no. 090278)

Description

Guard locking type

TZ1

Closed-circuit current principle, guard locking by spring force. Release by control of AS-i output 0.

Control of the guard locking solenoid

The guard locking solenoid is controlled by the control system via AS-Interface bus bit D0. In addition, the 24V connection can be switched safely.

AS-Interface inputs

D0, D1

Door monitoring contact SK

D2, D3

Solenoid monitoring contact ÜK

Evaluation is performed via a safety monitor.

AS-Interface outputs

D0

Guard locking solenoid

D1

LED red

D2

LED green

LED function display

  • The Power LED indicates the operating voltage on the bus.
  • The Fault LED indicates if a fault has been detected on the AS-Interface bus.
  • The green and the red LEDs can be controlled as required by the control system via the bus using bits D1 and D2.

Emergency release

It is used for manual release of the guard locking without tools in an emergency. The emergency unlocking mechanism must be returned to the locked state manually. A sealing wire is fitted to protect against tampering.

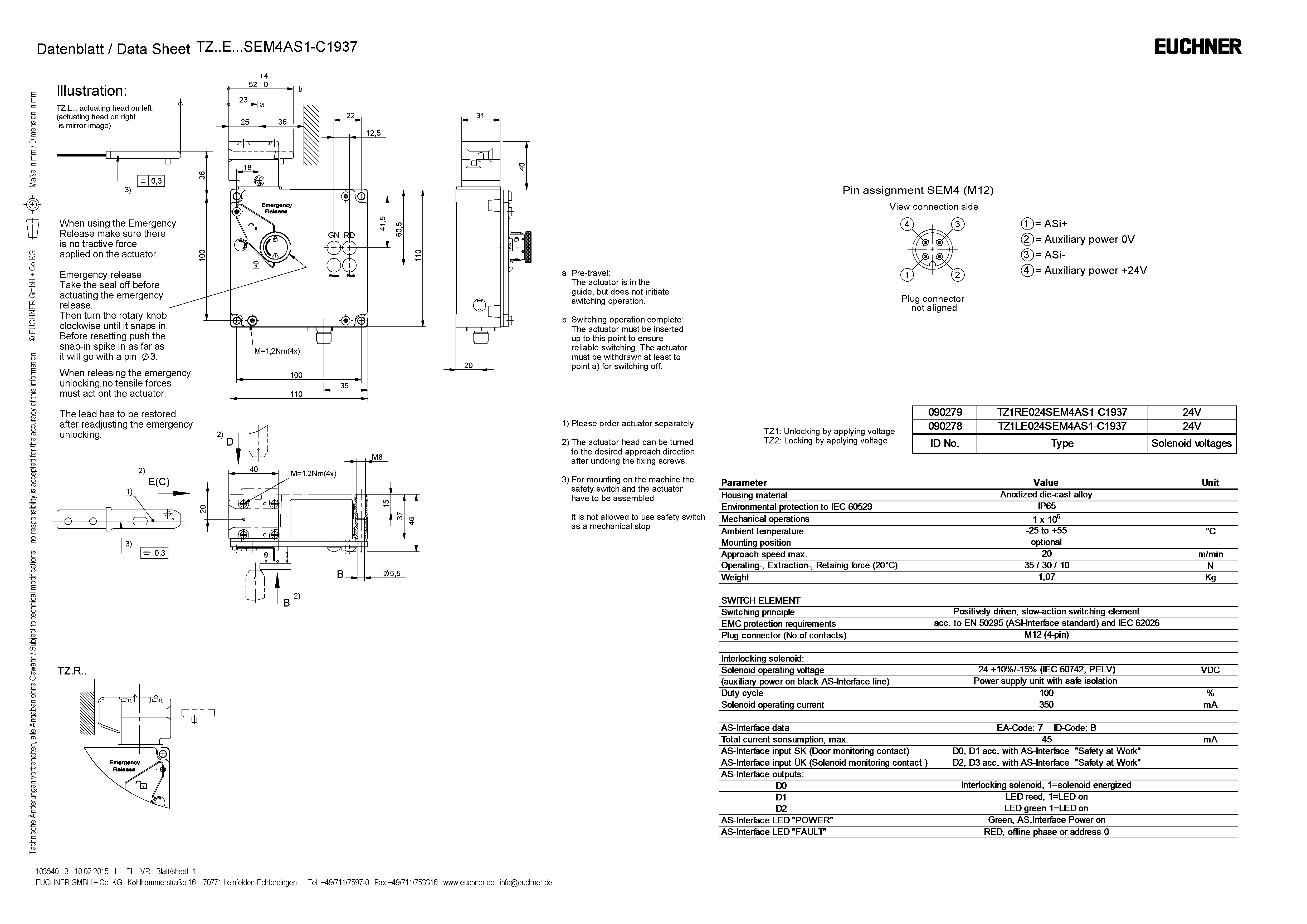

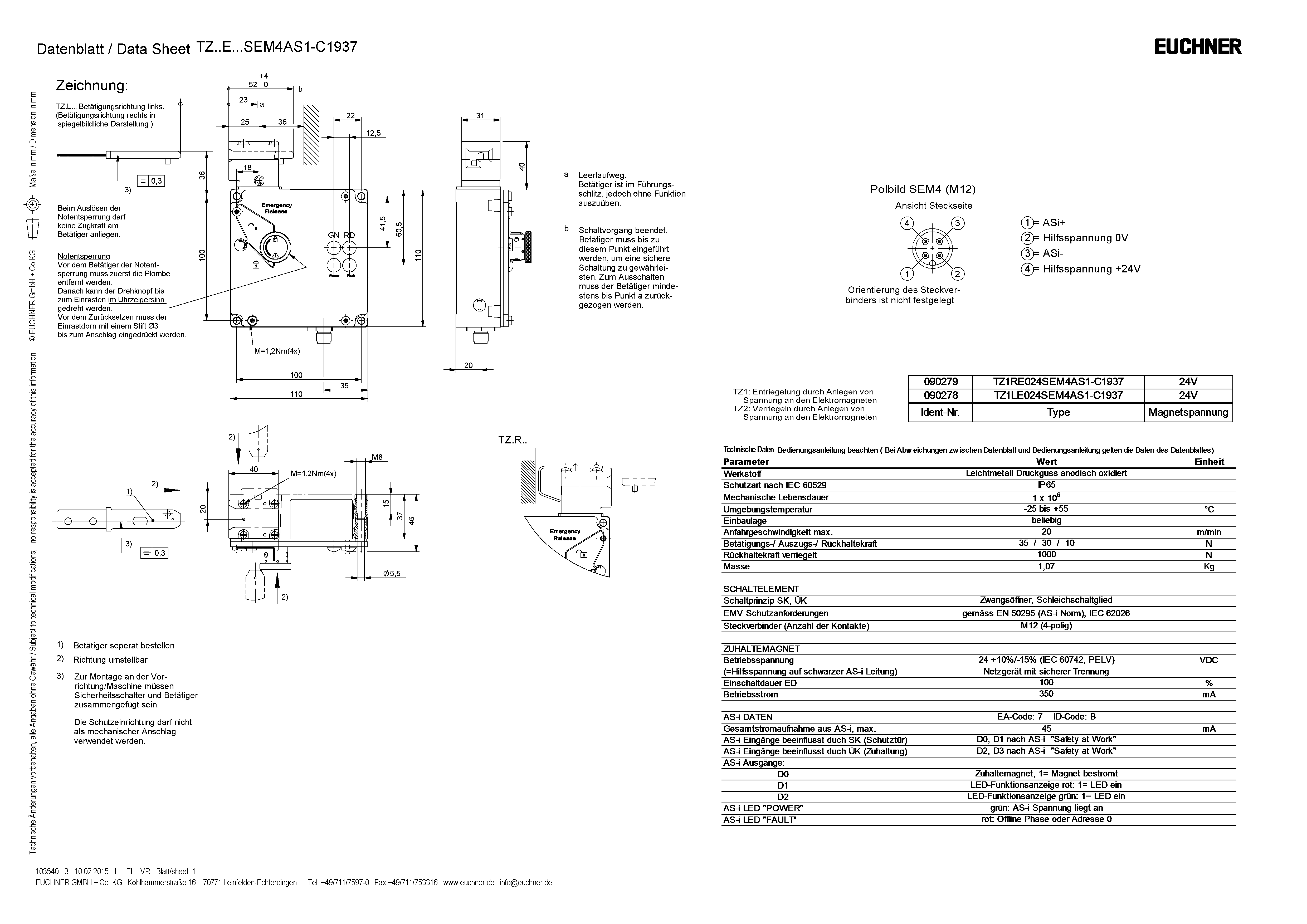

Dimension drawing
Dimension drawing
Connector assignment
Connector assignment
Electromechanical safety switches in use

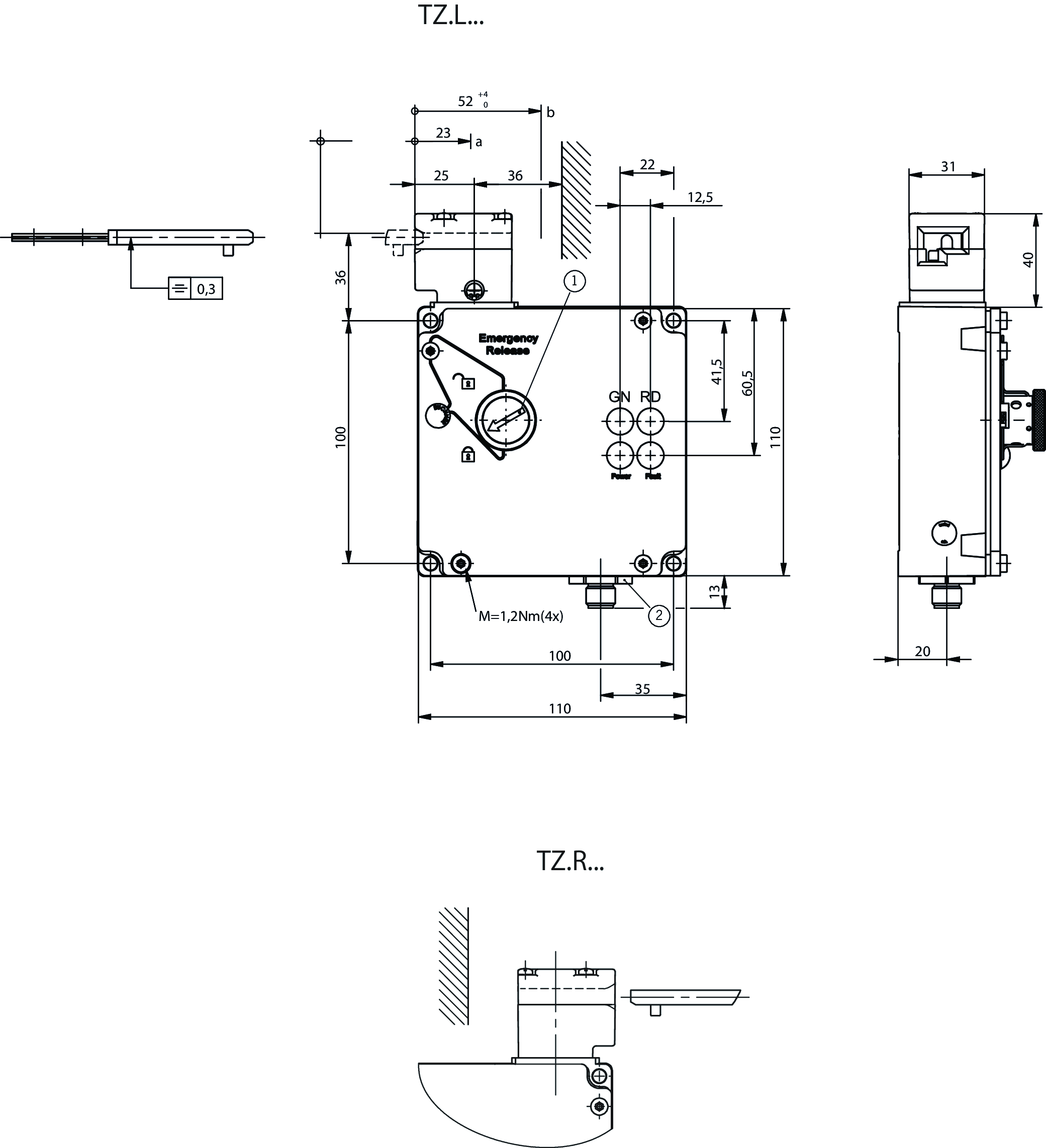

Dimensional drawings

Dimensional drawings
1Emergency unlocking (rotary knob)
2Plug connector not aligned

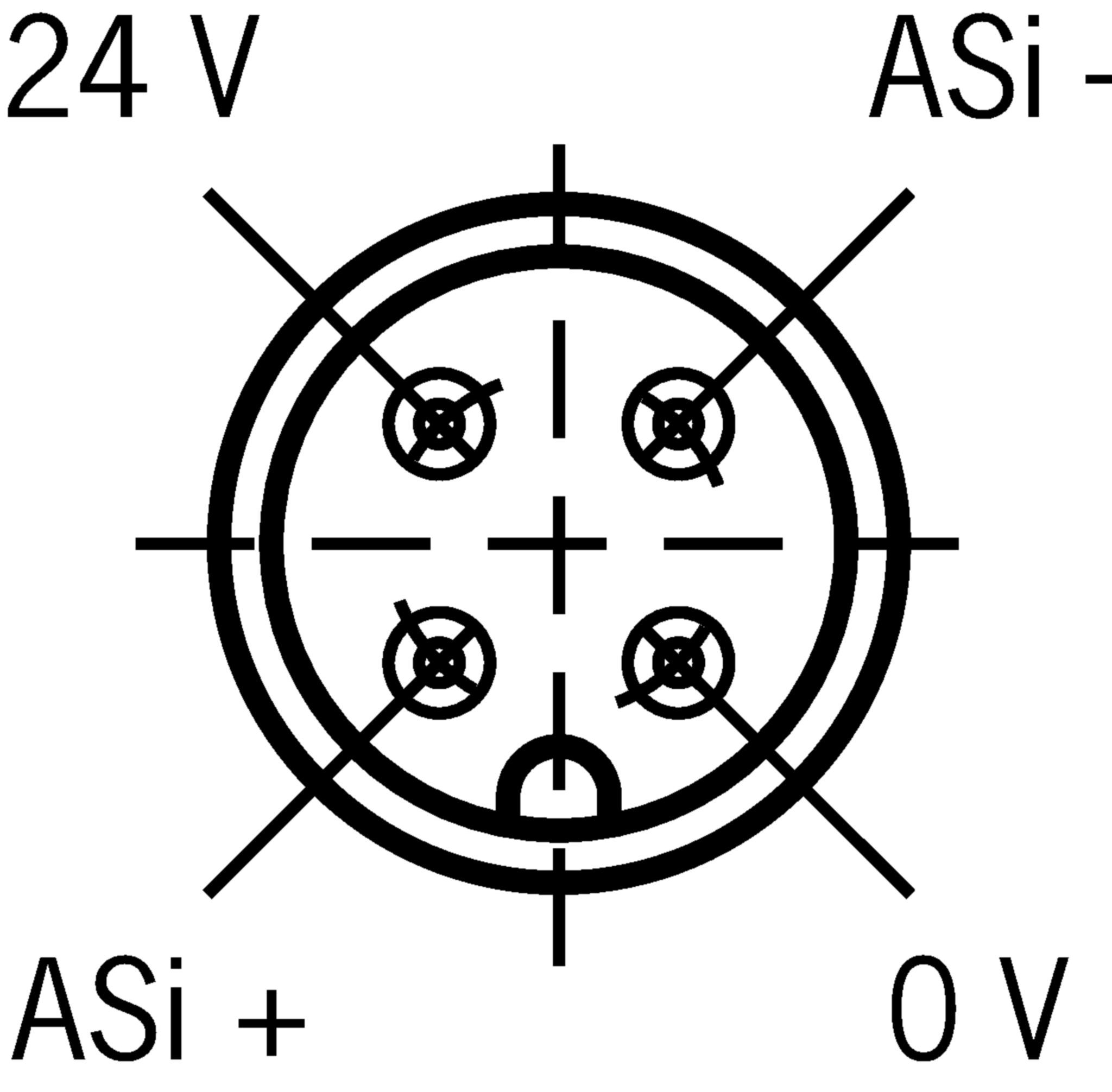

Connection examples

Connection examples
View of plug side

Technical data

Approvals

EAC_RU C-DE.MO05.B.00971/20DNV-GL_TAA0000172 Rev. 1c_UL_us_E155795_2/5DGUV_ET 19039_ET 19040CCC_2020980305000541_CQC2008010305306207

Electrical connection values

ASI operating current max. 45 mA
ASI data in
according to AS-i Safety at Work D0, D1, D2, D3 (see positively driven contact)
ASI data out
Guard locking solenoid D0 (1 = Solenoid energized)
LED green D2 (1 = LED on)
LED red D1 (1 = LED on)
ASI auxiliary voltage
IEC 60742, PELV 24 V -15% ... +10%
ASI auxiliary current 350 mA
ASI-LED
LED green Power (ASI voltage present)
LED red Fault (Offline phase or address 0)
ASI slave type
according to ASI specification 2.1 EA code: 7
according to ASI specification 2.1 ID code: B
ASI voltage 22.5 ... 30 ... 31.6 V
Solenoid duty cycle 100 %

Mechanical values and environment

Approach speed max. 20 m/min
Approach direction
Actuating head left C
Connection type
1 x Plug connector M12 (4-pin)
Number of door position positively driven contacts
according to AS-i Safety at Work 1 (D0,D1 / 1 = door closed)
Number of guard lock monitoring positively driven contacts
according to AS-i Safety at Work 1 D2,D3 (1 = locked)
Extraction force 30 N
Actuation frequency max. 1200 1/h
Actuating force 35 N
Installation orientation any
Insertion depth 52 mm
Mechanical life 1 x 10⁶
Retention force 10 N
Switching principle Slow-action switching contact
Degree of protection IP67
Ambient temperature -25 ... +55 °C
Material
Housing Anodized die-cast alloy
Contact Silver alloy, gold flashed
Guard locking principle Closed-circuit current principle

Characteristic values according to EN ISO 13849-1 and EN IEC 62061

B10DMission time
Monitoring of the guard position3x10620 y
Important! Values valid at DC-13 100 mA/24V
Monitoring of guard locking3x10620 y
Important! Values valid at DC-13 100 mA/24V


Miscellaneous

C number
C1937 with auxiliary release, special wiring ((rotary knob, latching))

In combination with actuator ACTUATOR-Z-GN

Overtravel 16 mm

In combination with actuator ACTUATOR-Z-G

Overtravel 4 mm

Accessories

Downloads

Complete package

Download all important documents with a single click.

Content:

  • The operating instructions and any additions to the operating instructions or brief instructions
  • Any data sheets to supplement the operating instructions
  • The declaration of conformity
Download Complete Package (ZIP, 5,5 MB)

Single Documents

Other Documents

Ordering data

Ordernumber 090278
Item designation TZ1LE024SEM4AS1-C1937
Gross weight 1,21kg
Customs tariff number 85365019000
ECLASS 27-27-26-03 Safety switch with guard control
