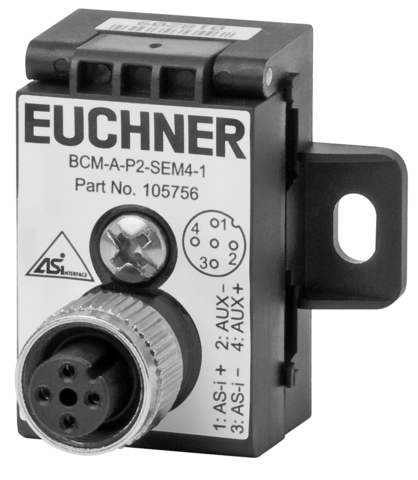

BCM-A-P2-SEM4-1 (Order no. 105756)

Choose content Description Choose content Technical data Components Accessories Choose content Ordering data

Bus coupling module with plug connector M12, 5-pin

Conversion from M12 to ribbon cable
Very compact design
Easy handling

Description

Suitable for safety switch

Safety switches with integrated AS-Interface are mostly equipped with an M12 plug connector. However, in the field the familiar AS-Interface ribbon cable is used both for the AS-i bus, and for the auxiliary power. The conversion from M12 to ribbon cable is realized using the bus coupling module. The module is very easy to use – it is only necessary to undo one screw to insert the ribbon cables.

Dimensional drawings

1	AS-Interface
2	Power
3	M12x1 socket, 5-pole

Connection examples

Technical data

Electrical connection values

Rated insulation voltage U_i
AS-Interface to power	200 V
Operating voltage DC	max. 36 V DC
Current	max. 4 A

Mechanical values and environment

Connection type
Cable 2	Power ribbon cable ((+24 V, 0 V))
Safety switch	M12 socket
Cable 1	AS-Interface bus ribbon cable ((AS-Interface +, AS-Interface -))
Installation orientation	any
Mounting type	Screw mounting ((1 x M6))
Degree of protection	IP67 (on single piercing of the cable)
Ambient temperature	-20 ... +70 °C
Material
Housing	Reinforced thermoplastic
