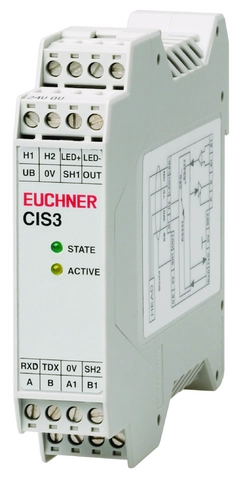

CIA3SX1R1G08 (Order no. 077910)

Read/write interface adapter CIA3SX1R1G08

  • Serial interface RS232/RS422
  • In combination with read head CIT3ASX1N12ST
  • Rail mounting
CIA3SX1R1G08 (Order no. 077910)

Description

Serial interface

The individual commands for reading and writing the data carrier are in accordance with the common 3964R protocol and are described in the EUCHNER CIS3 system manual (order no. 084 727). For data carrier programming away from the system, a convenient WINDOWS®-compatible PC software application is available (Transponder Coding software)

Attention:

  • On the use of a screened cable, the connecting cable for the serial interface is allowed to be max. 5 m long for RS232 and max. 1,000 m long for RS422.
  • On the use of a screened cable the connecting cable to the write/read head is allowed to be max. 15 m long.
  • It is only ever possible to connect 1 read head per interface adapter.
Dimension drawing
Dimension drawing
Wiring diagram power supply and interface
Wiring diagram power supply and interface

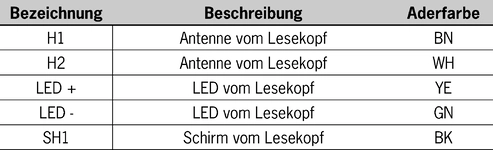

Wiring diagram read head
Wiring diagram read head

Dimensional drawings

Dimensional drawings
1Suitable for 35 mm mounting rail according to DIN 46277

Connection examples

Connection examples

Connection examples

Connection examples

Technical data

Operating and display elements

LED display
Green STATE LED operational
Yellow ACTIVE LED data carrier active

Electrical connection values

Connection cross section 0.14 ... 2.5 mm²
Output current 10 mA
Operating voltage DC 20 ... 24 ... 28 V DC (All the electrical connections must either be isolated from the mains supply by a safety transformer according IEC/ EN 61558-2-6 with limited output voltage in the event of a fault, or by other equivalent isolation measures.)
Current consumption
without load 65 ... 100 mA

Mechanical values and environment

Connection type plug-in screw terminals
Number of read heads max. 1
Cable length max. 5 m with RS232, max. 1,000 m with RS422
Mounting type Mounting rail 35 mm according to DIN EN 60715 TH35
Degree of protection IP20
Ambient temperature 0 ... +55 °C
Material
Housing PA 6.6

Miscellaneous

Additional feature
Moisture test (not condensing) at +50 °C and 80% rel. h
Vibration - IEC60068-2-6, amplitude 1 mm, 10-55 Hz, 3 axes
Shock - IEC60068-2-27 acceleration 30 g, 6 shocks per axis, 11 ms/half-sine

Interface

Data protocol 3964R via RS232/RS422
Data rate 9600 ... 28800 kbit/s selectable via DIP switches

In combination with read/write head CIT3ASX1N12ST and data carrier CIS3AP10D05KH01K, CIS3AP10D05KH01K-P

Read distance
with center offset m=0 0 ... 3 ... 5 mm (These values apply for the surface installation of the read/write head and flush installation of the data carrier in aluminum.)
with center offset m=0 0 ... 3 ... 6 mm (These values apply for the surface installation of the read/write head and flush installation of the data carrier in ferrous metals.)
with center offset m=0 0 ... 3 ... 6.5 mm (These values apply for the surface installation of the read/write head and flush installation of the data carrier in non-metallic surroundings.)
Center offset
Read distance s = 3 mm -2.5 ... 2.5 mm (These values apply for the surface installation of the read/write head and data carrier in non-metallic surroundings.)
Write distance s = 3 mm -2 ... 2 mm (These values apply for the surface installation of the read/write head and data carrier in non-metallic surroundings.)
Write distance
with center offset m=0 0 ... 3 ... 6 mm (These values apply for the surface installation of the read/write head and flush installation of the data carrier in non-metallic surroundings. For the flush installation of the data carrier in ferrous metals, the value is max. 5.5 mm and in aluminum max. 4.5 mm.)

Accessories

Ordering data

Ordernumber 077910
Item designation CIA3SX1R1G08
Gross weight 0,205kg
Customs tariff number 85364110
ECLASS 27-28-04-01 Identification, RFID Reader
