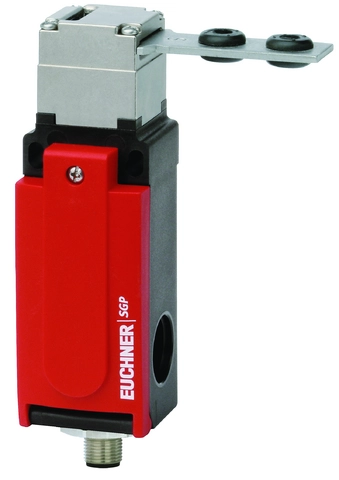

SGP3E-538ASFM5C2628 (Order no. 169844)

Safety switch SGP, plug connector(s) M12

  • M12 plug connector(s), 5-pin (4 poles connected)
  • 2 pos. driven contacts
SGP3E-538ASFM5C2628 (Order no. 169844)

Description

Approach direction

Horizontal and vertical

Can be adjusted in 90° steps

Switching element

538

Slow-action switching contact 2 positively driven, positively driven contact

Required accessories

Actuator is not included in the scope of delivery.

Dimension drawing
Dimension drawing
Wiring diagram
Wiring diagram
Electromechanical safety switches in use

Dimensional drawings

Dimensional drawings
1Insertion depth
2Fixed positioning for safety applications (screw M5)

Connection examples

Connection examples

Technical data

Approvals

EAC_RU C-DE.MO05.B.00971/20CCC_2020980305000503_CQC2009010305380680TÜV Rheinland_SGP_968/EL 473.04/22c_UL_us_E155795_2/4

Electrical connection values

Rated insulation voltage Ui 50 V
Rated impulse withstand voltage Uimp 1.5 kV
Utilization category
DC-13 2 A 24 V
AC-15 2 A 24 V
Short circuit protection according to IEC 60269-1 2A gG
Switching voltage
min. at 10 mA min. 12 V
Switching current
min. at 24 V 1 mA
thermal rated current Ith 2 A

Mechanical values and environment

Approach speed max. 20 m/min
Approach direction A
Connection type Plug connector M12 (5-pin (4 poles connected))
Number of door position positively driven contacts 2
Extraction force 25 N
Actuation frequency max. 6700 1/h
Actuating force 25 N
Installation orientation any
Insertion depth 24.5 mm
Mechanical life 2 x 10⁶
Retention force 10 N
Switching principle Slow-action switching contact
Degree of protection IP67
Ambient temperature -20 ... +80 °C
Material
Contact Silver alloy, gold flashed
Housing Reinforced thermoplastic

Characteristic values according to EN ISO 13849-1 and EN IEC 62061

B10DMission time
Monitoring of the guard position3x10620 y
Important! Values valid at DC-13 100 mA/24V


Miscellaneous

C number
C2628 5-pole but 4-pole occupied, two positively driven, positively driven contacts

Accessories

Downloads

Complete package

Download all important documents with a single click.

Content:

  • The operating instructions and any additions to the operating instructions or brief instructions
  • Any data sheets to supplement the operating instructions
  • The declaration of conformity
Download Complete Package (ZIP, 4,6 MB)

Single Documents

Other Documents

Ordering data

Ordernumber 169844
Item designation SGP3E-538ASFM5C2628
Gross weight 0,27kg
Customs tariff number 85365019000
ECLASS 27-27-26-02 Safety switch with separate actuator (Type 2)
