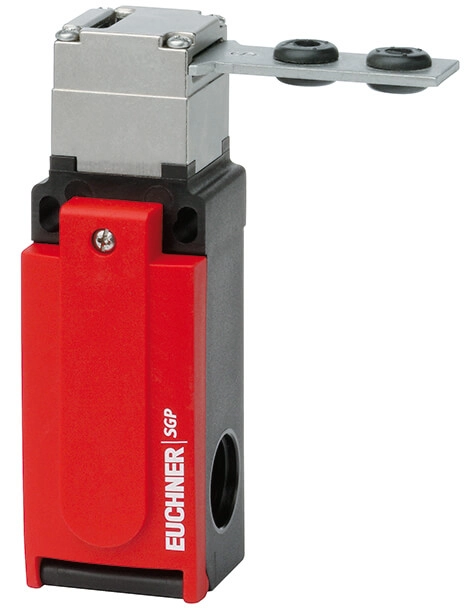

Safety switch SGP

Safety switch SGP

The SGP safety switch is the counterpart to the STP safety switch. The entire STP and SGP product families have the same metal actuating head and the same actuators.
This means that the STP (safety switch with guard locking) or SGP (without guard locking) safety switches can be used in a system, depending on the requirements.
EUCHNER offers the SGP product series with switching elements with different contact combinations (positively driven, positively driven contact / normally open contact).
Dual-channel wiring for the highest possible safety level is possible for all variants.
With the ability of the switching contacts to switch a minimum current of 1 mA, the SGP safety switch is also suitable for mode on safe control systems.

Features

  • Same drilling pattern as STP, same actuators
  • Same metal actuating head for the highest requirements
  • Flexible connection options via three cable entries
  • High degree of protection IP 67
