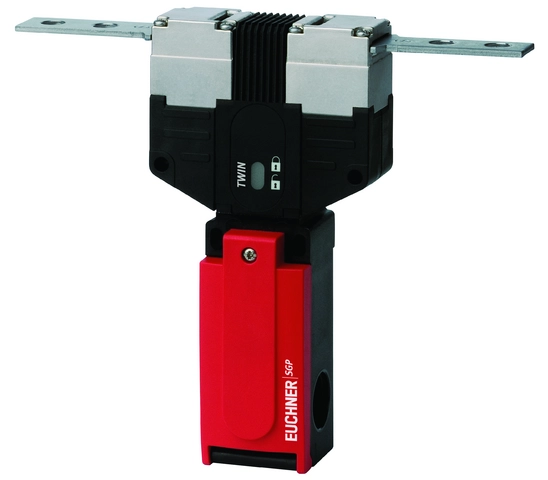

SGP-TW-1E-2131AC-M (Order no. 100809)

Safety switch SGP-TW

  • Two actuating heads made of metal
  • Simultaneous monitoring of two safety doors
  • Cable entry M20 x 1.5
SGP-TW-1E-2131AC-M (Order no. 100809)

Description

Approach direction

Horizontal and vertical

Can be adjusted in 90° steps

Switching element

2131

Slow-action switching contact 3 NC + 1 NO

Dimension drawing
Dimension drawing
Wiring diagram 2131
Wiring diagram 2131
Electromechanical safety switches in use

Dimensional drawings

Dimensional drawings

Connection examples

Connection examples

Technical data

Approvals

EAC_RU C-DE.MO05.B.00971/20CCC_2020980305000503_CQC2009010305380680

Electrical connection values

Connection cross section 0.34 ... 1.5 mm²
Rated insulation voltage Ui 250 V
Rated impulse withstand voltage Uimp 2.5 kV
Utilization category
AC-15 4 A 230 V
DC-13 4 A 24 V
Short circuit protection according to IEC 60269-1 4A gG
Switching voltage
min. at 10 mA 12 V
Switching current
min. at 24 V 1 mA
thermal rated current Ith 4 A

Mechanical values and environment

Approach speed max. 20 m/min
Approach direction A C
Connection type
3 x M20 x 1.5
Number of door position NO contacts 1
Number of door position positively driven contacts 3
Extraction force 25 N
Actuation frequency max. 6700 1/h
Actuating force 25 N
Installation orientation any
Insertion depth 24.5 mm
Mechanical life 1 x 10⁶
Retention force 10 N
Switching principle Slow-action switching contact
Degree of protection IP67
Ambient temperature -20 ... +80 °C
Material
Contact Silver alloy, gold flashed
Housing Reinforced thermoplastic

Characteristic values according to EN ISO 13849-1 and EN IEC 62061

B10DMission time
Monitoring of the guard position2x10620 y


In combination with actuator ACTUATOR-S-GT-SN

Overtravel 5 mm

Downloads

Complete package

Download all important documents with a single click.

Content:

  • The operating instructions and any additions to the operating instructions or brief instructions
  • Any data sheets to supplement the operating instructions
  • The declaration of conformity
Download Complete Package (ZIP, 8,5 MB)

Single Documents

Other Documents

Ordering data

Ordernumber 100809
Item designation SGP-TW-1E-2131AC-M
Gross weight 0,402kg
Customs tariff number 85365019000
ECLASS 27-27-26-02 Safety switch with separate actuator (Type 2)
