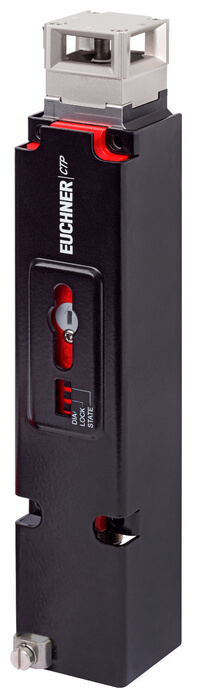

Transponder-coded safety switch CTP-AP, M12, ATEX
- ATEX version
- Suitable for use in zones 2 and 22 (gases and dusts)
- Safety switch with guard locking and integrated evaluation electronics
- Short circuit monitoring
- 2 safety outputs (semiconductor outputs)
- Up to category 4/PL e according to EN ISO 13849-1
- With plug connector M12
- Unicode
- Door monitoring output
- Diagnostics output OI
- Approach directions A, B and C (delivery state)
Description
Unicode evaluation
Each actuator is highly coded (unicode). The switch detects only taught-in actuators. Additional actuators can be taught-in. Only the last actuator taught-in is detected.
Guard locking type
| CTP‑L1 | Guard locking actuated by spring force applied and power-ON released (closed-circuit current principle) |
Connector assignment
Plug connector (view of connection side) |
Pin |
Designation |
Function |
Conductor coloring of connecting cable |
|---|---|---|---|---|
|
1 |
IMP |
Operating voltage of guard locking solenoid, 24 V DC |
WH |
2 |
UB |
Operating voltage of AP electronics, 24 V DC |
BN |
|
3 |
FO1A |
Safety output, channel 1 |
GN |
|
4 |
FO1B |
Safety output, channel 2 |
YE |
|
5 |
OI |
Diagnostic output |
GY |
|
6 |
OD |
Door monitoring output |
PK |
|
7 |
0 V UB |
Operating voltage of AP electronics, 0 V |
BU |
|
8 |
IMM |
Operating voltage of guard locking solenoid, 0 V |
RD |

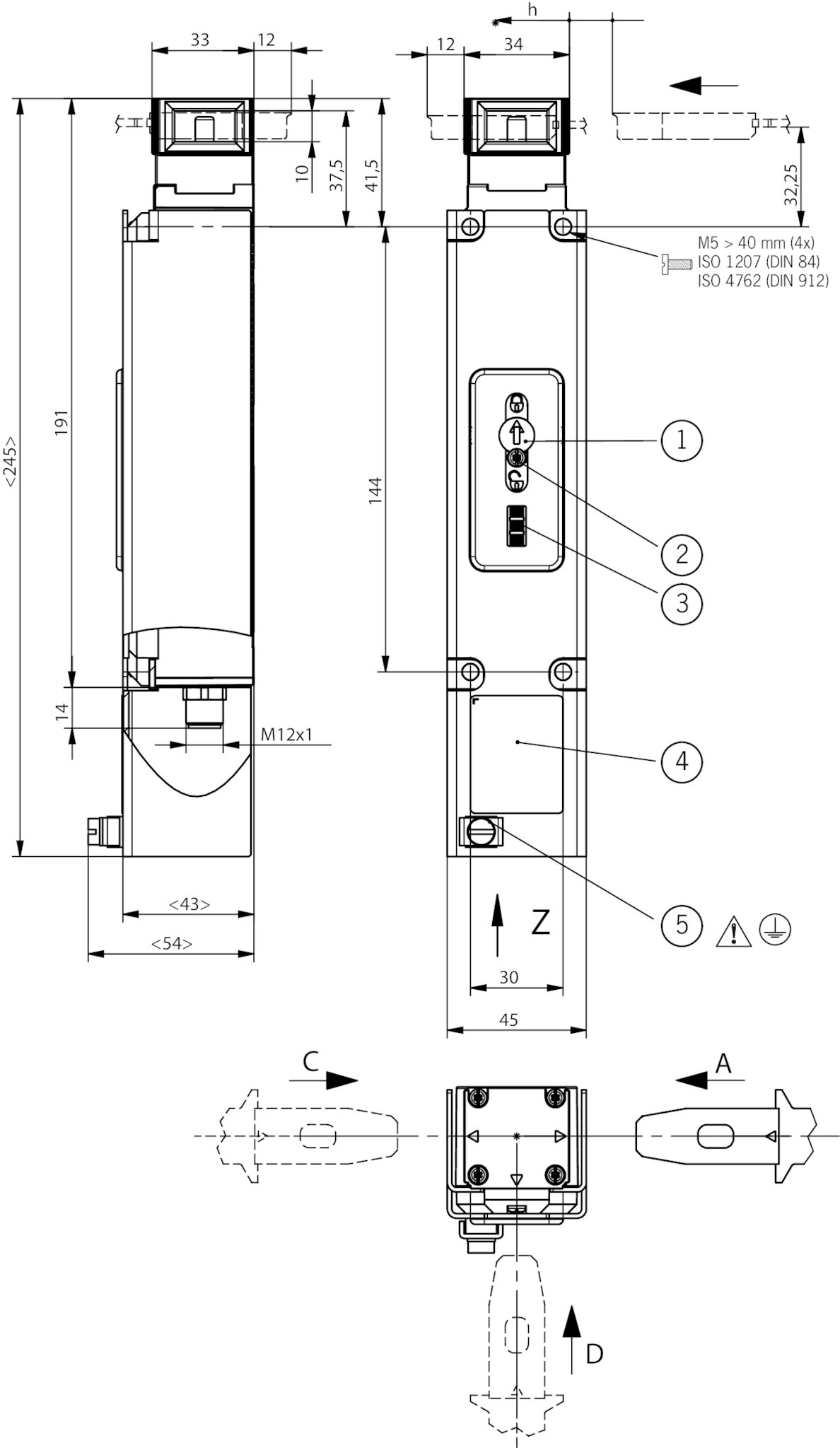

Dimension drawing
| 1 | Auxiliary release |
| 2 | Locking screw |
| 3 | LEDs |
| 4 | Protective plate |
| 5 | Grounding terminal - for preventing electrostatic charging. Ground switch via cable. Cable cross-section 4...6 mm² |
Wiring diagram
Technical data
Approvals
Mechanical values and environment
| Shock and vibration resistance | In acc. with EN 60947-5-3 |
| Housing material | |
| Switch head cover | Die-cast zinc |
| Safety switch housing | Fiber glass reinforced thermoplastic |
| Weight | |
| Net | 0,78 kg |
| Ambient temperature | |
| At UB = 24V DC | -20 ... +55 °C |
| Degree of protection | IP65/IP66 (Screwed tight plug connector/mating component) |
| Mechanical life | 1 x 106 |
| Installation orientation | Any |
| Ready delay | max.1 s |
| Switching frequency | max.0,5 Hz |
| Connection | 1 plug connector M12, 8-pin |
| Approach speed | max.20 m/min |
| Guard locking principle | Closed-circuit current principle |
| Locking force Fmax | 3900 N |
| Locking force FZh | 3000 N (Fzh = Fmax/1.3 Depending on the actuator used) |
| Retention force | 20 N |
| Extraction force | 20 N |
| Actuating force | 10 N |
| Overtravel | 5 mm |
Electrical connection ratings
| Test-pulse interval | min.100 ms |
| Test pulses | max.0,3 ms (Applies for a load with C ≤ 30nF and R ≤ 20kOhm) |
| Operating voltage DC | |
| UUB | 24 V DC -15% ... 15% Reverse polarity protected, regulated, residual ripple < 5%, PELV |
| Current consumption | |
| IIMP | 400 mA |
| IUB | 40 mA |
| Utilization category acc. to EN 60947-5-2 | |
| DC-13 | 24V 150mA (Caution: outputs must be protected with a free-wheeling diode in case of inductive loads) |
| Solenoid operating voltage DC | |
| UIMP | 24 V DC -15% ... +10% Reverse polarity protected, regulated, residual ripple < 5%, PELV |
| Fusing | |
| External (operating voltage UB) | 0,25 ... 8 A |
| External (solenoid operating voltage IMP) | 0,5 ... 8 A |
| Rated insulation voltage Ui | 50 V |
| Rated impulse withstand voltage Uimp | 0,5 kV |
| Connection rating | 6 W |
| EMC protection requirements | In acc. with EN IEC 60947-5-3 |
| Solenoid duty cycle | 100 % |
| Degree of contamination (external, according to EN 60947-1) | 3 |
| Safety class | |
| EN IEC 61140 | III |
| Switching load | |
| According to UL | 24V DC, class 2 (Alternatively see operating instructions) |
| Monitoring output OI | |
| Type of output | p-switching, short circuit-proof |
| Switching current | 1 ... 50 mA |
| Output voltage | 0,8xUB ... UB V DC |
| Safety outputs FO1A / FO1B | |
| Type of output | 2 semiconductor outputs, p-switching, short circuit-proof |
| Switching current | |
| Per safety output FO1A / FO1B | 1 ... 150 mA |
| Output voltage | |
| HIGH U(FO1A) / U(FO1B) | UB-1,5 ... UB V DC |
| LOW U(FO1A) / U(FO1B) | 0 ... 1 V DC |
| Off-state current Ir | max.0,25 mA |
| Turn-on time | max.400 ms |
| Discrepancy time | |
| Both safety outputs | max.10 ms In acc. with EN IEC 60947-5-3 |
| Monitoring output OD | |
| Type of output | p-switching, short circuit-proof |
| Switching current | 1 ... 50 mA |
| Output voltage | 0,8xUB ... UB V DC |
Work area
| Repeat accuracy R | |
| According to EN 60947-5-2 | 10 % |
Other
| Explosion protection | |
| incl. cover | II3G Ex ec IIC T4 Gc X / II3D Ex tc IIIC T110°C Dc X |
| For the approval acc. to UL the following applies | Operation only with UL class 2 power supply, or equivalent measures see operating instructions |
Reliability values according to EN ISO 13849-1
| Performance Level | PL e |
| Category | 4 |
| PFHD | 4.1 x 10 -9 |
| Mission time | 20 y |
Accessories
Actuator
Hinged actuator for safety switch CTP-EX, ATEX
166340
A-C-H-RL-LS-EX-166340
A-C-H-RL-LS-EX-166340
- Hinged actuator for doors hinged on the left
- ATEX version
- Suitable for use in zones 2 and 22 (gases and dusts)
- Two safety screws included
166341
A-C-H-RR-LS-EX-166341
A-C-H-RR-LS-EX-166341
- Hinged actuator for doors hinged on the left
- ATEX version
- Suitable for use in zones 2 and 22 (gases and dusts)
- Two safety screws included
Connection material
Mounting accessories
Efficient protection against tampering for safety switch mounting
161344
AM-C-SW4-V3-161344
AM-C-SW4-V3-161344
- Plastic inserts for hexagon socket screws a/f 4
- Efficient protection against tampering for safety switch mounting
- The packaging includes inserts for 18 screws
161348
AM-C-SW5-V3-161348
AM-C-SW5-V3-161348
- Plastic inserts for hexagon socket screws a/f 5
- Efficient protection against tampering for safety switch mounting
- The packaging includes inserts for 18 screws
