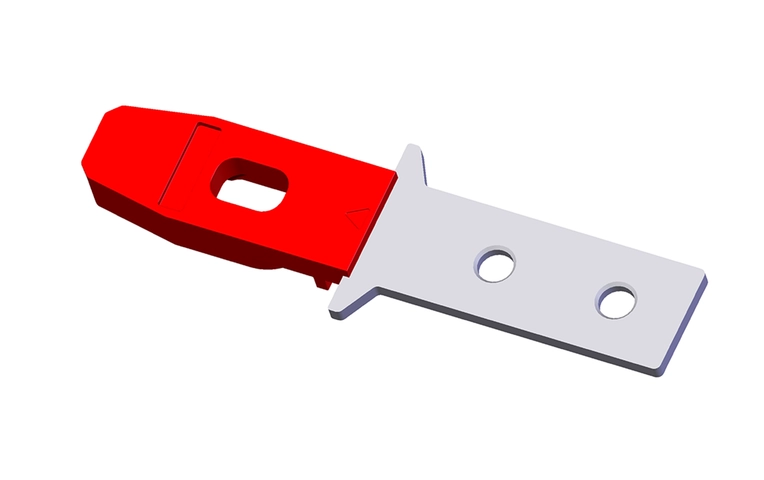

A-C-H-G-LS-EX-136826 (Order no. 136826)

Straight actuator for safety switch CTP-EX, ATEX

  • ATEX version
  • Suitable for use in zones 2 and 22 (gases and dusts)
  • Straight actuator
  • Two safety screws included
A-C-H-G-LS-EX-136826 (Order no. 136826)

Description

Straight actuator

The straight actuator is used on sliding doors or hinged doors with door radii greater than 300 mm. Safety screws prevent unscrewing of the actuators.

The safety screws included can be inserted with a normal tool, but cannot be removed again.

Dimension drawing
Dimension drawing

Dimension drawing

Dimension drawing
12x non-removable screws M5 included
2Min. door radii

Technical data

Approvals

ATEX

Mechanical values and environment

Housing material
Encapsulation Fiber reinforced plastic, red
Mounting Stainless steel
Weight 0,03 kg
Ambient temperature -20 ... 55 °C
Degree of protection IP65/IP66
Mechanical life 1 x 106
Installation orientation Any
Locking force Fmax 3900 N
Locking force FZh 3000 N (Fzh = Fmax/1.3)
Overtravel 5 mm

Electrical connection ratings

Power supply Inductive via read head

Other

Explosion protection II3G Ex ic IIC T4 Gc / II3D Ex ic IIIC T110°C Dc X
