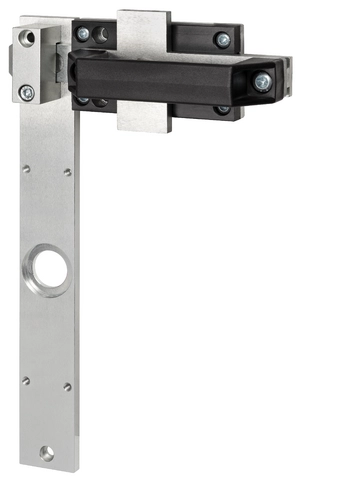

Bolt BTM-UNIP-S... for safety switches TP, STP, STA, CTP and CTA
- Steel bolt
- For doors hinged on the left or right
- Can be locked in open position with padlocks
- Actuator not included
Description
Benefits
- Robust construction
- Easily mounted to standard aluminum profiles and machine covers by screw connection
- No additional door handle necessary
Notes
- The bolts are suitable for the series TP, STP, STA, CTP and CTA.
- Order safety switch and actuator separately
- In combination with the safety switches CTP-...-EX, the bolt can be used in potentially explosive atmospheres according to ATEX in Zone 2/22.
- The specifications of the ATEX Directive and ATEX standards additionally apply to non-electric parts of a potentially explosive installation. Mechanical parts (the mechanical bolts in this case) are not subject to identification according to the ATEX Directive, however. The bolt BTM-UNIP-S-TH-00-X-159951 has no ATEX rating.
Dimensional drawings
1 | View B |
2 | View A |
3 | Safety guard frame (40x40) |
4 | Attention! Bolt is not allowed to be used in conjunction with an escape release. |
Technical data
Mechanical values and environment
Number of safety switches that can be mounted | 1 |
Escape release | none |
Material | |
Base plate | Galvanized steel |
Switch bracket | Galvanized steel |
Guide strips | Plastic |
Handle | Plastic |
Miscellaneous
Detent mechanism | none |
Accessories
Downloads
Complete package
Download all important documents with a single click.
Content:
- The operating instructions and any additions to the operating instructions or brief instructions
- Any data sheets to supplement the operating instructions
- The declaration of conformity
Single Documents
Instructions
Safety Information for Bolts
Doc. no.
Version
Language
Size
Safety Information for Bolts
Information de sécurité pour verrous-targettes
Información de seguridad para cerrojos
Sicherheitsinformation für Riegel
Information de sécurité pour verrous-targettes
Información de seguridad para cerrojos
Sicherheitsinformation für Riegel
Doc. no.
2530033
Version
03-08/23
Language
Size
0,2 MB
Sicherheitsinformation für Riegel
Doc. no.
2530033
Version
03-08/23
Language
Size
0,1 MB
Other Documents
Sales documents
CAD data
Ordering data
Ordernumber | 159951 |
Item designation | BTM-UNIP-S-TH-00-X-159951 |
Gross weight | 2,33kg |
Customs tariff number | 83014090000 |
