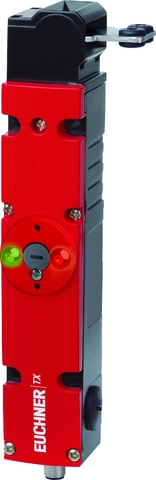

TX1B-A024SEM4AS1 (Order no. 094403)

Safety switch TX ASi, plug connector M12 (closed-circuit current principle)

  • Auxiliary release on the front
  • Plug connector M12
TX1B-A024SEM4AS1 (Order no. 094403)

Description

Guard locking type

TX1

Closed-circuit current principle, guard locking by spring force. Release by control of AS-i output 0.

Control of the guard locking solenoid

The guard locking solenoid is controlled by the control system via AS-Interface bus bit D0. In addition, the 24V connection can be switched safely.

AS-Interface inputs

D0, D1

Positively driven NC contact 1 (safety door monitor)

D2, D3

Positively driven NC contact 2 (guard lock monitoring)

Evaluation is performed via a safety monitor.

AS-Interface outputs

D1

LED red

D2

LED green

Internal LED function display

  • The Power LED indicates the operating voltage on the bus.
  • The Fault LED indicates if a fault has been detected on the AS-Interface bus.

External LED function display

  • The green and the red LEDs can be controlled as required by the control system via the bus using bits D1 and D2.

Auxiliary release

This is used for releasing the guard locking with the aid of a tool. To protect against tampering, the auxiliary release is sealed with sealing lacquer.

Dimension drawing
Dimension drawing
Connector assignment
Connector assignment
Electromechanical safety switches in use

Dimensional drawings

Dimensional drawings
1Auxiliary release
2LED indicator
3Locking screw

Connection examples

Connection examples
View of plug side

Technical data

Approvals

EAC_RU C-DE.MO05.B.00971/20DNV-GL_TAA0000172 Rev. 1DGUV_TX_ET 23014_ET 23015c_UL_us_E155795_2/5CCC_2020980305000541_CQC2008010305306207Asi Interface_60901_

Electrical connection values

ASI operating current max. 45 mA
ASI data in
according to AS-i Safety at Work D0, D1, D2, D3 (see positively driven contact)
ASI data out
LED green D2 (1 = LED on)
LED red D1 (1 = LED on)
Guard locking solenoid D0 (1 = Solenoid energized)
ASI auxiliary voltage
IEC 60742, PELV 24 V -15% ... +10%
ASI auxiliary current 300 mA
ASI slave type
according to ASI specification 2.1 ID code: B
according to ASI specification 2.1 EA code: 7
ASI voltage 22.5 ... 30 ... 31.6 V
Solenoid duty cycle 100 %

Mechanical values and environment

Approach speed max. 20 m/min
Connection type
1 x Plug connector M12 (4-pin)
Number of door position positively driven contacts
according to AS-i Safety at Work 1 (D0,D1 / 1 = door closed)
Number of guard lock monitoring positively driven contacts
according to AS-i Safety at Work 1 D2,D3 (1 = locked)
Extraction force 35 N
Actuation frequency max. 1200 1/h
Actuating force 35 N
Installation orientation any
Insertion depth 32 mm
Mechanical life 1 x 10⁶
Retention force 20 N
Switching principle Slow-action switching contact
Degree of protection IP67
Ambient temperature -20 ... +50 °C
Material
Contact Silver alloy, gold flashed
Housing Die-cast alloy cathodically dipped
Guard locking principle Closed-circuit current principle

Characteristic values according to EN ISO 13849-1 and EN IEC 62061

B10DMission time
Monitoring of the guard position5x10620 y
Important! Values valid at DC-13 100 mA/24V
Monitoring of guard locking5x10620 y
Important! Values valid at DC-13 100 mA/24V


In combination with actuator ACTUATOR-X-GNQ

Overtravel 8 mm

In combination with actuator ACTUATOR-X-GQ

Overtravel 1 mm

Accessories

Downloads

Complete package

Download all important documents with a single click.

Content:

  • The operating instructions and any additions to the operating instructions or brief instructions
  • Any data sheets to supplement the operating instructions
  • The declaration of conformity
Download Complete Package (ZIP, 3,6 MB)

Single Documents

Other Documents

Ordering data

Ordernumber 094403
Item designation TX1B-A024SEM4AS1
Gross weight 0,87kg
Customs tariff number 85365019000
ECLASS 27-27-26-03 Safety switch with guard control
