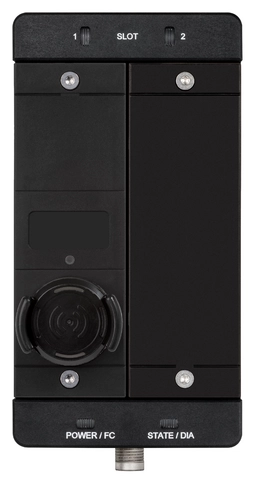

MCM-MLI-YJ1A4-UA-169635 (Order no. 169635)

Expansion module MCM-MLI... (CKS2 key adapter)

  • Function expansion for bus module MBM and locking module MGB2-L.-MLI
  • Two slots for mounting submodules
  • CKS2 key adapter with integrated evaluation electronics
  • Freely controllable LEDs (red, green, yellow)
  • Additional RGB LED for simple diagnostics
  • Cut-out for slide-in label
  • Incl. color slide-in labels
  • Compatible with all Modular devices
MCM-MLI-YJ1A4-UA-169635 (Order no. 169635)

Description

Function

The MCM Modular can be connected directly or remotely to the bus module and in this way can be operated as a control terminal. It can also be used to extend the control features on a locking module. The MCM Modular offers two slots for mounting submodules.

Expandable via connection on the top

Either a module plug connector or a plug for the direct connection of a signal light with up to four lamps can be used on the top of the MCM.

Dimension drawing
Dimension drawing

Dimensional drawings

Dimensional drawings

Technical data

Approvals

c_UL_us_E155795_3/9TÜV Süd München_Z10 040393 0028 Rev.04

Mechanical values and environment

Storage temperature -25 ... 70 °C

Characteristic values according to EN ISO 13849-1 and EN IEC 62061

PFHD 2.82 x 10-9 (Fixed failure rate without consideration of faults in wearing parts)

Submodules MSM-1-N-AA-000-A4-126372 (Order no. 126372)

Submodules MSM-1-N-AA-000-A4-126372 (Order no. 126372)

Mechanical values and environment

Installation orientation any
Storage temperature -30 ... 70 °C
Shock and vibration resistance Acc. to EN IEC 60947-5-3
Ambient temperature
at UB = 24 V DC -30 ... 55 °C
Material Fiber glass reinforced plastic

Miscellaneous

Submodulbreite 1

Module connector AC-MC-SB-M-A-157024 (Order no. 157024)

Module connector AC-MC-SB-M-A-157024 (Order no. 157024)

Electrical connection values

Connecting cable
MLI 5-pin, M12x1
Rated voltage 36 V
Rated voltage 30 V
Nominal current
at 40 °C 4 A
Degree of contamination according to EN 60664-1 3

Mechanical values and environment

Storage temperature -30 ... 70 °C
Ambient temperature -30 ... 55 °C
Connection 1
Connection type 2x M4 screws
Connection type Male plug
Number of pins 5
Degree of protection IP65 (Only in the screwed tight state with the related mating components.)
Insertion cycles 100
Material
Plug housing Plastic
Connection 2
Connection type Screw terminal
Connection type Male plug
Type specification M12 EN 61076-2-101 / A-coded
Number of pins 5
Degree of protection IP65 (Only in the screwed tight state with the related mating components.)
Insertion cycles 100
Material
Plug lock die-cast zinc, nickel plated
Plug housing Plastic, die-cast zinc, nickel plated

Control modules MCM-MLI-Y0000-JJ-164241 (Order no. 164241)

Control modules MCM-MLI-Y0000-JJ-164241 (Order no. 164241)

Electrical connection values

Rated insulation voltage Ui 75 V
Rated impulse voltage Uimp 0.5 kV
EMC protection requirements EMC Directive 2014/30/EU
Safety class III
Current consumption max. 75 mA
Degree of contamination (external, according to EN 60947-1) 3

Mechanical values and environment

Switching frequency 0.25 Hz
Storage temperature -25 ... 70 °C
Mechanical life 1 x 10⁶
Shock and vibration resistance Acc. to EN IEC 60947-5-3
Degree of protection IP65 (In the closed state when the connection cables, connecting cables and submodules are correctly mounted.)
Ambient temperature
at UB = 24 V DC -25 ... 55 °C
Material
Housing Fiber glass reinforced plastic, die-cast zinc, nickel plated

Characteristic values according to EN ISO 13849-1 and EN IEC 62061

PLMaximum SILPFHDCategoryMission time
Evaluating safety signalsPL e32.82x10-9420 y
Applies to all safety functions contained in submodules such as EMERGENCY STOP, enabling switch, etc.


Miscellaneous

Slotkonfiguration 1,1

AC-MC-00-0-B-156718 (Order no. 156718)

AC-MC-00-0-B-156718 (Order no. 156718)

Electrical connection values

Degree of contamination according to EN 60664-1 3

Mechanical values and environment

Storage temperature -30 ... 70 °C
Ambient temperature -30 ... 55 °C
Material Fiber glass reinforced plastic
Connection 1
Connection type 2x M4 screws
Degree of protection IP65 (Only in the screwed tight state with the specified base units.)

Miscellaneous

Color black
Additional feature
incl. fixing screws
incl. seal

Submodules MSM-1-R-CKS2-FLX-00Q0FS-J1-168595 (Order no. 168595)

Submodules MSM-1-R-CKS2-FLX-00Q0FS-J1-168595 (Order no. 168595)

Operating and display elements

ItemColorExtrasSlide-in labelVersionSwitching elementNote slide-in labelNumberDesignation1LED
212.5x27 mmPosition for slide-in label
3CKS2 key system

Electrical connection values

Current consumption max. 50 mA
Controls and indicators
Breaking capacity max. 0.25 W
Switching voltage 24 V
Switching current 5 ... 10 mA
LED power supply 24 V DC

Mechanical values and environment

Installation orientation any
Storage temperature -25 ... 70 °C
Shock and vibration resistance Acc. to EN IEC 60947-5-3
Degree of protection IP65 (IP20) (in the installed state)
Ambient temperature
at UB = 24 V DC -25 ... 55 °C
Material Fiber glass reinforced plastic

Characteristic values according to EN ISO 13849-1 and EN IEC 62061

PLMaximum SILPFHDCategoryMission time
Safe key detectionPL e33.37x10-9420 y


Miscellaneous

Submodulbreite 1
Slide-in label
NumberLabelingNote
1without marking
Software ID (SW ID) 168595

Components

MSM-1-N-AA-000-A4-126372
126372
MSM-1-N-AA-000-A4-126372
Submodule MSM-1-N... (blanking cover)
  • Function expansion for modules MGB2 and MCM
  • Connection type: N
  • Blanking cover
AC-MC-SB-M-A-157024
157024
AC-MC-SB-M-A-157024
Module connector MLI (M12), 5-pin, plug
  • Module plug connector MLI (M12), straight
  • Number of pins: 5-pin, plug
MCM-MLI-Y0000-JJ-164241
164241
MCM-MLI-Y0000-JJ-164241
Expansion module MCM-MLI... (module without blanking covers, 2 slots for submodules)
  • Function expansion for bus module MBM and locking module MGB2-L.-MLI
  • Two slots for mounting submodules
  • Category 4/PL e for the evaluation of all safety functions
  • Open version (without submodules)
  • Submodule connection type: N/P
  • Compatible with all Modular devices
AC-MC-00-0-B-156718
156718
AC-MC-00-0-B-156718
Cover for unused module connections
  • Cover for unused connections
  • incl. fixing screws
  • incl. seal
MSM-1-R-CKS2-FLX-00Q0FS-J1-168595
168595
MSM-1-R-CKS2-FLX-00Q0FS-J1-168595
Submodule MSM-1-R... (CKS2 key adapter)
  • Function expansion for modules MGB2 and MCM
  • Connection type: R
  • CKS2 key adapter with integrated evaluation electronics
  • Freely controllable LEDs (red, green, yellow)
  • Additional RGB LED for simple diagnostics
  • Cut-out for slide-in label
  • Incl. color slide-in labels

Accessories

Downloads

Complete package

Download all important documents with a single click.

Content:

  • The operating instructions and any additions to the operating instructions or brief instructions
  • Any data sheets to supplement the operating instructions
  • The declaration of conformity
Download Complete Package (ZIP, 8,1 MB)

Single Documents

Other Documents

Ordering data

Ordernumber 169635
Item designation MCM-MLI-YJ1A4-UA-169635
Gross weight 0,635kg
Customs tariff number 85371098
ECLASS 27-24-26-03 Field bus, decentralized peripheral - module carrier
