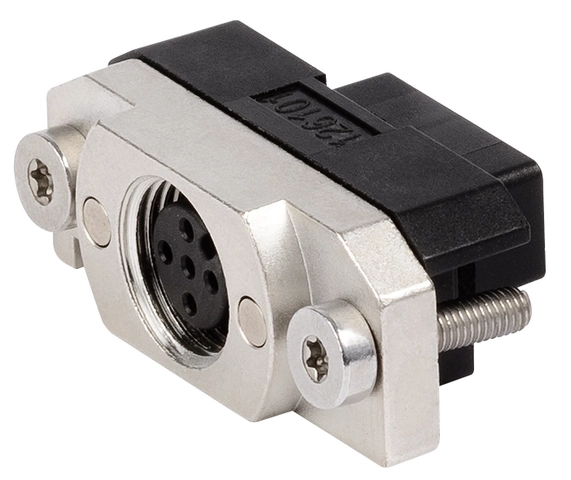

AC-MC-SB-F-A-157028 (Order no. 157028)

Module connector MLI (M12), 5-pin, socket

  • Module plug connector MLI (M12), straight
  • with thread
  • Number of pins: 5-pin, socket
AC-MC-SB-F-A-157028 (Order no. 157028)

Description

Dimension drawing
Dimension drawing
Dimension drawing
Dimension drawing

Dimensional drawings

Dimensional drawings

Dimensional drawings

Dimensional drawings

Technical data

Electrical connection values

Connecting cable
MLI 5-pin, M12x1
Rated voltage 36 V
Rated voltage 30 V
Nominal current
at 40 °C 4 A
Degree of contamination according to EN 60664-1 3

Mechanical values and environment

Ambient temperature -30 ... +55 °C
Connection 1
Connection type 2x M4 screws
Connection type Female plug
Number of pins 5
Degree of protection IP65 (Only in the screwed tight state with the related mating components.)
Insertion cycles 100
Material
Plug housing Plastic
Connection 2
Connection type Screw terminal
Connection type Female plug
Type specification M12 EN 61076-2-101
Number of pins 5
Degree of protection IP65 (Only in the screwed tight state with the related mating components.)
Insertion cycles 100
Material
Plug lock die-cast zinc, nickel plated
Plug housing Plastic, die-cast zinc, nickel plated

Ordering data

Ordernumber 157028
Item designation AC-MC-SB-F-A-157028
Gross weight 0,02kg
Customs tariff number 85389099990
