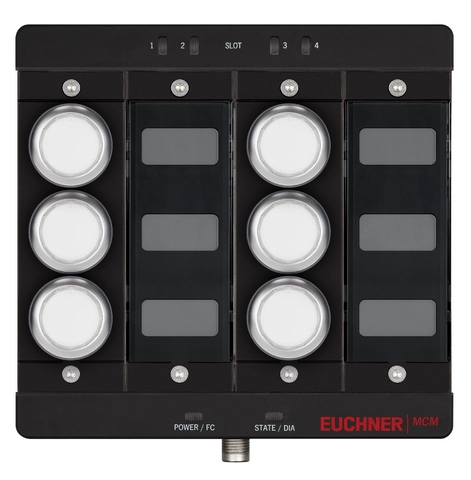

MCM-MLI-YA9B1A9B1-LA-155996 (Order no. 155996)
Choose content
Expansion module MCM-MLI... (6 pushbuttons)
- Function expansion for bus module MBM and locking module MGB2-L.-MLI
- Four slots for mounting submodules
- 6 illuminated pushbuttons
- 6 cut-outs for slide-in labels
- Compatible with all Modular devices
Description
Function
The MCM Modular can be connected directly or remotely to the bus module and in this way can be operated as a control terminal. It can also be used to extend the control features on a locking module. The MCM Modular offers four slots for mounting submodules.
Expandable via connection on the top
Either a module plug connector or a plug for the direct connection of a signal light with up to four lamps can be used on the top of the MCM.
Dimensional drawings
Technical data
Approvals
Mechanical values and environment
| Storage temperature | -25 ... 70 °C |
Characteristic values according to EN ISO 13849-1 and EN IEC 62061
| PFHD | 2.82 x 10-9 |
Submodules MSM-1-P-CA-PPP-A9-127040 (Order no. 127040)
Operating and display elements
| Item | Color | Extras | Version | Switching element | Slide-in label | Note slide-in label | Number | Designation1 | LED |
|---|---|---|---|---|---|---|---|---|---|
| 1 | Illuminated pushbutton | 1NO | |||||||
| 2 | Illuminated pushbutton | 1NO | |||||||
| 3 | Illuminated pushbutton | 1NO |
Electrical connection values
| Current consumption | max. 30 mA |
| Controls and indicators | |
| Breaking capacity | max. 0.25 W |
| Switching voltage | 24 V |
| Switching current | 5 ... 10 mA |
| LED power supply | 24 V DC |
Mechanical values and environment
| Installation orientation | any |
| Storage temperature | -25 ... 70 °C |
| Shock and vibration resistance | Acc. to EN IEC 60947-5-3 |
| Degree of protection | IP65 (IP20) (in the installed state) |
| Ambient temperature | |
| at UB = 24 V DC | -25 ... 55 °C |
| Material | Fiber glass reinforced plastic |
Miscellaneous
| Submodulbreite | 1 |
| Software ID (SW ID) | 127040 |
| Additional feature | incl. lens set, ID no. 163284 |
Submodules MSM-1-N-AA-QQQ-B1-137610 (Order no. 137610)
Operating and display elements
| Item | Color | Extras | Version | Switching element | Slide-in label | Note slide-in label | Number | Designation1 | LED |
|---|---|---|---|---|---|---|---|---|---|
| 1 | Position for slide-in label | ||||||||
| 2 | Position for slide-in label | ||||||||
| 3 | Position for slide-in label |
Mechanical values and environment
| Installation orientation | any |
| Storage temperature | -30 ... 70 °C |
| Shock and vibration resistance | Acc. to EN IEC 60947-5-3 |
| Ambient temperature | |
| at UB = 24 V DC | -30 ... 55 °C |
| Material | Fiber glass reinforced plastic |
Miscellaneous
| Submodulbreite | 1 | Slide-in label | |||||
| |||||||
| Additional feature | Incl. label holder, ID no. 156732 | ||||||
Module connector AC-MC-SB-M-A-157024 (Order no. 157024)
Electrical connection values
| Connecting cable | |
| MLI | 5-pin, M12x1 |
| Rated voltage | 36 V |
| Rated voltage | 30 V |
| Nominal current | |
| at 40 °C | 4 A |
| Degree of contamination according to EN 60664-1 | 3 |
Mechanical values and environment
| Storage temperature | -30 ... 70 °C |
| Ambient temperature | -30 ... 55 °C |
| Connection 1 | |
| Connection type | 2x M4 screws |
| Connection type | Male plug |
| Number of pins | 5 |
| Degree of protection | IP65 (Only in the screwed tight state with the related mating components.) |
| Insertion cycles | 100 |
| Material | |
| Plug housing | Plastic |
| Connection 2 | |
| Connection type | Screw terminal |
| Connection type | Male plug |
| Type specification | M12 EN 61076-2-101 / A-coded |
| Number of pins | 5 |
| Degree of protection | IP65 (Only in the screwed tight state with the related mating components.) |
| Insertion cycles | 100 |
| Material | |
| Plug housing | Plastic, die-cast zinc, nickel plated |
| Plug lock | die-cast zinc, nickel plated |
Control modules MCM-MLI-Y00000000-JJ-157854 (Order no. 157854)
Electrical connection values
| Rated insulation voltage Ui | 75 V |
| Rated impulse voltage Uimp | 0.5 kV |
| EMC protection requirements | EMC Directive 2014/30/EU |
| Safety class | III |
| Current consumption | max. 75 mA |
| Degree of contamination (external, according to EN 60947-1) | 3 |
Mechanical values and environment
| Switching frequency | 0.25 Hz |
| Storage temperature | -25 ... 70 °C |
| Mechanical life | 1 x 10⁶ |
| Shock and vibration resistance | Acc. to EN IEC 60947-5-3 |
| Degree of protection | IP65 (In the closed state when the connection cables, connecting cables and submodules are correctly mounted.) |
| Ambient temperature | |
| at UB = 24 V DC | -25 ... 55 °C |
| Material | |
| Housing | Fiber glass reinforced plastic, die-cast zinc, nickel plated |
Characteristic values according to EN ISO 13849-1 and EN IEC 62061
| PL | Maximum SIL | PFHD | Category | Mission time | |
|---|---|---|---|---|---|
| Evaluating safety signals | PL e | 3 | 2.82x10-9 | 4 | 20 y |
| Applies to all safety functions contained in submodules such as EMERGENCY STOP, enabling switch, etc. | |||||
Miscellaneous
| Slotkonfiguration | 1,1,1,1 |
AC-MC-00-0-B-156718 (Order no. 156718)
Electrical connection values
| Degree of contamination according to EN 60664-1 | 3 |
Mechanical values and environment
| Storage temperature | -30 ... 70 °C |
| Ambient temperature | -30 ... 55 °C |
| Material | Fiber glass reinforced plastic |
| Connection 1 | |
| Connection type | 2x M4 screws |
| Degree of protection | IP65 (Only in the screwed tight state with the specified base units.) |
Miscellaneous
| Color | black |
| Additional feature | |
| incl. seal | |
| incl. fixing screws |
Components
127040
MSM-1-P-CA-PPP-A9-127040
Submodule MSM-1-P... (3 illuminated pushbuttons)
MSM-1-P-CA-PPP-A9-127040
Submodule MSM-1-P... (3 illuminated pushbuttons)
- Function expansion for modules MGB2 and MCM
- Connection type: P
- 3 illuminated pushbuttons
- incl. lens set
137610
MSM-1-N-AA-QQQ-B1-137610
Submodule MSM-1-N... (blanking cover with 3 adhesive labels)
MSM-1-N-AA-QQQ-B1-137610
Submodule MSM-1-N... (blanking cover with 3 adhesive labels)
- Function expansion for modules MGB2 and MCM
- Connection type: N
- 3 cut-outs for slide-in labels
- incl. transparent label holder (AY-C-A1-156732)
- incl. slide-in labels
157024
AC-MC-SB-M-A-157024
Module connector MLI (M12), 5-pin, plug
AC-MC-SB-M-A-157024
Module connector MLI (M12), 5-pin, plug
- Module plug connector MLI (M12), straight
- Number of pins: 5-pin, plug
157854
MCM-MLI-Y00000000-JJ-157854
Expansion module MCM-MLI... (module without blanking covers, 4 slots for submodules)
MCM-MLI-Y00000000-JJ-157854
Expansion module MCM-MLI... (module without blanking covers, 4 slots for submodules)
- Function expansion for bus module MBM and locking module MGB2-L.-MLI
- Four slots for mounting submodules
- Category 4/PL e for the evaluation of all safety functions
- Open version (without submodules)
- Submodule connection type: N/P
- Compatible with all Modular devices
156718
AC-MC-00-0-B-156718
Cover for unused module connections
AC-MC-00-0-B-156718
Cover for unused module connections
- Cover for unused connections
- incl. fixing screws
- incl. seal
