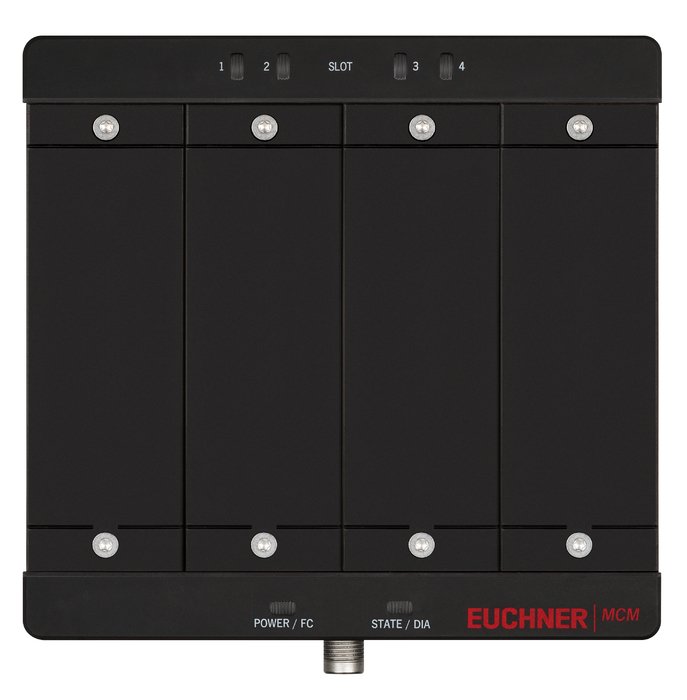

MCM-MLI-YA4A4A4A4-JA-157774 (Order no. 157774)

Extension module MCM-MLI... (module with blanking covers, with 4 slots for submodules, 1 MLI connection)

  • Function expansion for bus module MBM and locking module MGB2-L.-MLI
  • Four slots for mounting submodules
  • Category 4/PL e for the evaluation of all safety functions
  • 4 blanking covers
  • Submodule connection type: N/P
  • Compatible with all Modular devices
MCM-MLI-YA4A4A4A4-JA-157774 (Order no. 157774)

Description

Function

The MCM Modular can be connected directly or remotely to the bus module and in this way can be operated as a control terminal. It can also be used to extend the control features on a locking module. The MCM Modular offers four slots for mounting submodules.

Expandable via connection on the top

Either a module plug connector or a plug for the direct connection of a signal light with up to four lamps can be used on the top of the MCM.

Dimension drawing
Dimension drawing
MGB2 Modular: an overview
Multifunctional door locking systems

Dimension drawing

Dimension drawing

Technical data

Mechanical values and environment

Installation orientation Any

Reliability values according to EN ISO 13849-1

PFHD 2.82 x 10-9 (Fixed failure rate without consideration of faults in wearing parts)

Submodule MSM-1-N-AA-000-A4-126372 (Order no. 126372)

Submodule MSM-1-N-AA-000-A4-126372

Mechanical values and environment

Shock and vibration resistance In acc. with EN 60947-5-3
Material Fiber glass reinforced plastic
Weight
Net 0,05 kg
Ambient temperature
At UB = 24V DC -25 ... 55 °C
Installation orientation Any

Submodule MSM-1-N-AA-000-A4-126372 (Order no. 126372)

Submodule MSM-1-N-AA-000-A4-126372

Mechanical values and environment

Shock and vibration resistance In acc. with EN 60947-5-3
Material Fiber glass reinforced plastic
Weight
Net 0,05 kg
Ambient temperature
At UB = 24V DC -25 ... 55 °C
Installation orientation Any

Extension module MCM-MLI-Y00000000-JJ-157854 (Order no. 157854)

Extension module MCM-MLI-Y00000000-JJ-157854

Mechanical values and environment

Shock and vibration resistance In acc. with EN 60947-5-3
Housing material
Housing Fiber glass reinforced plastic, die-cast zinc, nickel plated
Weight
Net 0,8 kg
Ambient temperature
At UB = 24V DC -25 ... 55 °C
Degree of protection IP65 (This is the case only in the closed state with correctly mounted connecting cables and submodules.)
Mechanical life 1 x 106
Switching frequency 0,25 Hz

Electrical connection ratings

Current consumption max.75 mA
Rated insulation voltage Ui 75 V
Rated impulse withstand voltage Uimp 1,5 kV
EMC protection requirements EMC directive 2014/30/EU
Degree of contamination (external, according to EN 60947-1) 3
Safety class III
Power supply MLI
Operating voltage DC
MLI 24 V DC -25% ... 15% ((Reverse polarity protected, regulated, residual ripple <5%, PELV))
Auxiliary voltage DC
MLI 24 V DC -25% ... 15%

Reliability values according to EN ISO 13849-1

PFHD 2.82 x 10-9 (Fixed failure rate without consideration of faults in wearing parts)
Safety Integrity Level SIL 3 (EN 62061:2005)
Mission time 20

AC-MC-00-0-B-156718 (Order no. 156718)

 AC-MC-00-0-B-156718

Mechanical values and environment

Material Fiber glass reinforced plastic
Weight
Net 0,05 kg
Ambient temperature -25 ... 90 °C
Connection 1
Degree of protection IP65 (Only in the screwed tight state with the specified base modules.)
Connection 2x M4 screws

Electrical connection ratings

Degree of contamination according to EN 60664-1 3

Other

Additional feature
Incl. fixing screws
Incl. seal
Color Black

Submodule MSM-1-N-AA-000-A4-126372 (Order no. 126372)

Submodule MSM-1-N-AA-000-A4-126372

Mechanical values and environment

Shock and vibration resistance In acc. with EN 60947-5-3
Material Fiber glass reinforced plastic
Weight
Net 0,05 kg
Ambient temperature
At UB = 24V DC -25 ... 55 °C
Installation orientation Any

Module connector AC-MC-SB-M-A-157024 (Order no. 157024)

Module connector AC-MC-SB-M-A-157024

Mechanical values and environment

Weight
Net 0,05 kg
Ambient temperature -25 ... 90 °C
Connection 1
Degree of protection IP65 (Only in the screwed tight state with the related mating components.)
Insertion cycles 100
Connection 2x M4 screws
Connection type Male plug
Number of pins 5
Plug housing material Plastic
Connection 2
Degree of protection IP65 (Only in the screwed tight state with the related mating components.)
Type specification M12 EN 61076-2-101 / A-coded
Plug lock material Die-cast zinc, nickel-plated
Insertion cycles 100
Connection Screw terminal
Connection type Male plug
Number of pins 5
Plug housing material Plastic, die-cast zinc, nickel plated

Electrical connection ratings

Rated voltage 30 V
Nominal current
At 40°C 4 A
Rated voltage 36 V
Degree of contamination according to EN 60664-1 3
Connecting cable
MLI 5-pin, M12x1

Submodule MSM-1-N-AA-000-A4-126372 (Order no. 126372)

Submodule MSM-1-N-AA-000-A4-126372

Mechanical values and environment

Shock and vibration resistance In acc. with EN 60947-5-3
Material Fiber glass reinforced plastic
Weight
Net 0,05 kg
Ambient temperature
At UB = 24V DC -25 ... 55 °C
Installation orientation Any
