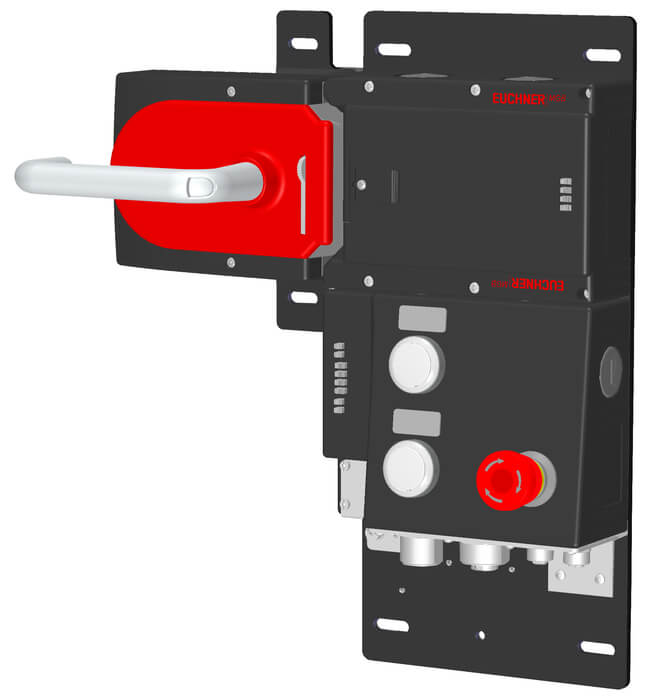

Locking set MGB-L1...-PN... (guard locking by spring force) with 3 control elements, 7/8" and M12 plugs
- Guard locking with guard lock monitoring
- Emergency stop according to ISO 13850, illuminated
- 2 illuminated pushbuttons
- including adhesive labels
- Connection via 7/8" and M12 plugs
- Pre-assembled on mounting plates
- Integrated Profinet RT switch
- Unicode
Description
Profinet connection
7/8" plugs according to ANSI/B93.55M-1981 and M12 plugs (d-coded) according to IEC 61076-2-101
Profinet RT switch
Point-to-point topology network structure due to integrated RT switch.
Flexible use as interlocking or guard locking
By means of the corresponding evaluation of the safe device data by the control system, use can be as either interlocking or guard locking (with or without monitoring).
Illuminated emergency stop
Emergency stop with illumination that can be controlled as required.
Dimension drawings
Technical data
Approvals
Handle modules MGB-H-AA1A2-L-106221 (Order No. 106221)
Mechanical values and environment
| Ambient temperature | -20 ... +55 °C |
| Degree of protection | IP65 |
| Installation orientation | Door hinge DIN left |
| Material | |
| Housing | Fiber glass reinforced plastic, nickel-plated die-cast zinc, stainless steel |
Miscellaneous
| Additional feature | with mounting plate |
| Product version number | V3.0.0 |
Locking modules MGB-L1B-PNA-L-121861 (Order No. 121861)
Work area
| Assured release distance sar | |
| Door position | max. 65 mm |
Controls and indicators
| Assignment diagram | |
| B1 | |
| L0 |
| Item | Extras | Color | Designation1 | Number | LED | Slide-in label | Switching element | Note slide-in label | Version |
|---|---|---|---|---|---|---|---|---|---|
| 90 | 1NO | Illuminated pushbutton | |||||||
| 93 | 2 PD | Emergency stop illuminated | |||||||
| 95 | 1NO | Illuminated pushbutton |
Electrical connection ratings
| Connecting cable | |
| Ethernet | PROFINET I/O cable, at least cat. 5e |
| Current consumption | max. 500 mA |
| Rated insulation voltage Ui | 75 V |
| maximum feed-in current in the connection block | |
| X1, X2 | max. 4000 mA |
| EMC protection requirements | In accordance with EN 61000-4 and EN 61326-3-1 |
| Rated impulse withstand voltage Uimp | 0.5 kV |
| Safety class | III |
| Transponder coding | Unicode |
| Degree of contamination (external, according to EN 60947-1) | 3 |
| Power supply X1 | |
| Fusing | |
| external | min. 1 A slow blow |
| Operating voltage DC | |
| L1 | 24 V DC -15% ... +10% ((reverse polarity protected, regulated, residual ripple 5%, PELV)) |
| Auxiliary voltage DC | |
| L2 | 24 V DC -15% ... +10% (The auxiliary voltage is not required for the MGB system) |
| Power supply X2 | |
| Operating voltage DC | |
| L1 | 24 V DC -15% ... +10% (For looping through for connected devices) |
| Auxiliary voltage DC | |
| L2 | 24 V DC -15% ... +10% (For looping through for connected devices) |
Mechanical values and environment
| Ambient temperature | |
| at UB = 24V DC | -20 ... +55 °C |
| Connection | |
| 7/8" Power (X2 (The document PROFINET “Cabling and Interconnection Technology” from the PNO aids in the correct selection of cables.)) | |
| 7/8" Power (X1 (The document PROFINET “Cabling and Interconnection Technology” from the PNO aids in the correct selection of cables.)) | |
| according to IEC 61076-2-101, Profinet I/O cable, at least cat. 5e | M12, D-coded, screened (X4 (The document PROFINET “Cabling and Interconnection Technology” from the PNO aids in the correct selection of cables.)) |
| according to IEC 61076-2-101, Profinet I/O cable, at least cat. 5e | M12, D-coded, screened (X3 (The document PROFINET “Cabling and Interconnection Technology” from the PNO aids in the correct selection of cables.)) |
| Degree of protection | IP54 |
| Guard locking principle | Closed-circuit current principle |
| Installation orientation | Door hinge DIN left |
| Material | |
| Housing | Fiber glass reinforced plastic, nickel-plated die-cast zinc, stainless steel |
| Mechanical life | |
| 1 x 10⁶ | |
| in case of use as door stop, and 1 Joule impact energy | 0.1 x 10⁶ |
| Reaction time | |
| Door position | max. 550 ms Turn-off time (The reaction time is the max. time between the change in the input status and the deletion of the corresponding bit in the bus protocol.) |
| Emergency stop / machine stop | max. 250 ms Turn-off time (The reaction time is the max. time between the change in the input status and the deletion of the corresponding bit in the bus protocol.) |
| Guard locking | max. 550 ms Turn-off time (The reaction time is the max. time between the change in the input status and the deletion of the corresponding bit in the bus protocol.) |
| Bolt position | max. 550 ms Turn-off time (The reaction time is the max. time between the change in the input status and the deletion of the corresponding bit in the bus protocol.) |
| Switching frequency | 0.25 Hz |
| Shock and vibration resistance | according to EN 60947-5-3 |
| Locking force FZh | 2000 N |
Reliability values according to EN ISO 13849-1
| Mission time | 20 y |
| Safety Integrity Level | SIL 3 (EN 62061:2005) |
| Control of guard locking | |
| Category | 4 |
| Performance Level | PL e |
| PFHD | 3.91 x 10-8 |
| Emergency stop | |
| B10D | |
| Emergency stop | 0.13 x 10⁶ |
| Emergency-stop evaluation | |
| Performance Level | PL e |
| Category | 4 |
| PFHD | 4.1 x 10-8 |
| Monitoring of guard locking and the guard position | |
| Diagnostic Coverage (DC) | 99 % |
| Performance Level | PL e |
| Category | 4 |
| PFHD | 4.07 x 10-8 (Fixed failure rate without consideration of faults in wearing parts.) |
Miscellaneous
| Additional feature | incl. lens set, ID no. 120344 | Slide-in label | |||||
| |||||||
| Product version number | V3.30.10 | ||||||
Interface, bus
| Bus data protocol | Profinet (IEC 61158 type 10) |
| Safety data protocol | Profisafe (IEC 61784-3-3) |
| Data interface | |
| Ethernet |
Components
121861
MGB-L1B-PNA-L-121861
Evaluation module and bus module MGB-L1...-PN... (guard locking by spring force) with 3 control elements, 7/8" and M12 plugs
MGB-L1B-PNA-L-121861
Evaluation module and bus module MGB-L1...-PN... (guard locking by spring force) with 3 control elements, 7/8" and M12 plugs
- Guard locking with guard lock monitoring
- Emergency stop according to ISO 13850, illuminated
- 2 illuminated pushbuttons
- including adhesive labels
- Connection via 7/8" and M12 plugs
- Pre-assembled on mounting plates
- Integrated Profinet RT switch
- Unicode
106221
MGB-H-AA1A2-L-106221
Handle module MGB-H-...
MGB-H-AA1A2-L-106221
Handle module MGB-H-...
- Intelligent bolt tongue
- Lockout mechanism
- Door handle
- Mounting plate
