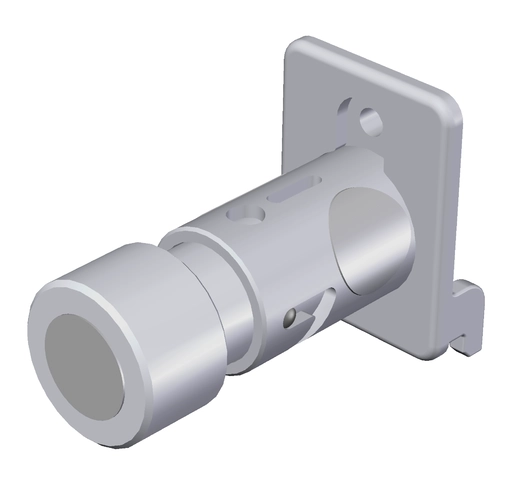

Emergency unlocking for safety system MGB
- Quick emergency release
- sealable

Description
The MGB can be unlocked manually using the emergency release. The rotary knob is pushed and then turned by 90° to unlock. The snap-in bolt engages in the hole on the flange. To release the emergency release, push the snap-in bolt inward and simultaneously turn the rotary knob back to its initial position. The emergency release can be sealed in the free position.
Wire and seal are included with the emergency release.

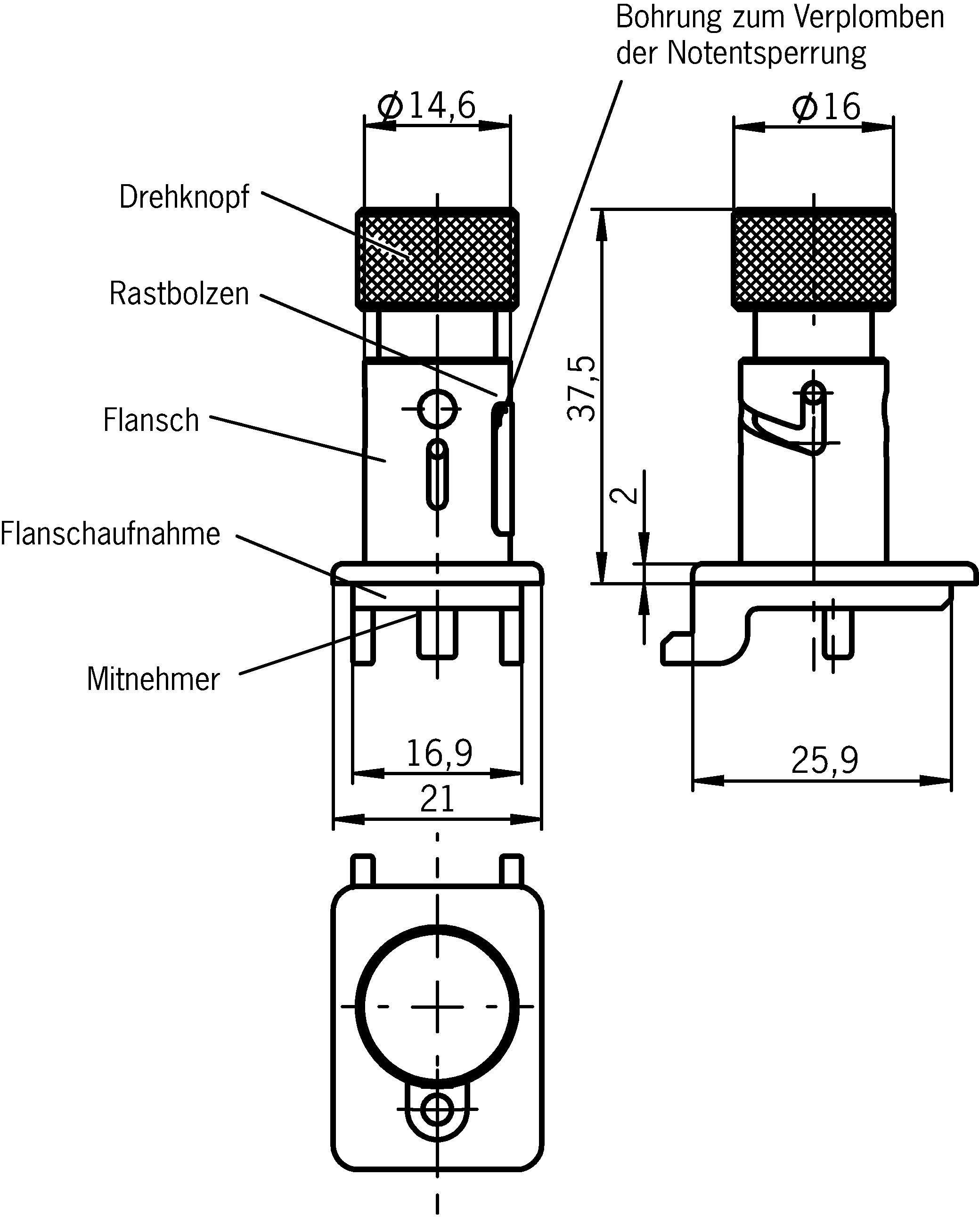

Dimension drawing

Technical data
Approvals

Mechanical values and environment
Material | Aluminum, stainless steel |
Weight | |
Net | 0,04 kg |
Mechanical life | 0,02 x 106 |
Accessories
